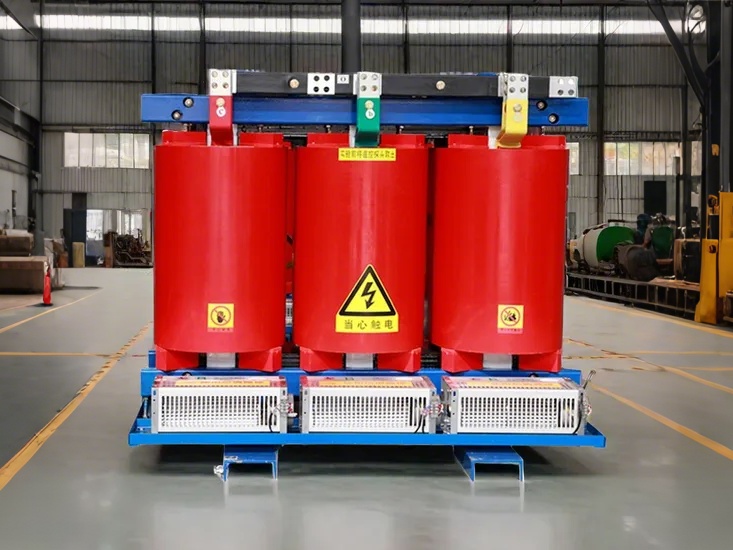

The transformer vector group is a critical designation that describes the winding configurations and phase displacement between the primary and secondary sides of a transformer. It helps engineers and technicians understand how a transformer will behave when connected in a power system, particularly in multi-transformer setups where compatibility is essential. Misalignment in vector groups can lead to phase mismatches, circulating currents, and system failures. In this article, we explore what a transformer vector group is, how to read it, and why it’s crucial in transformer selection and system design.
What Is a Transformer Vector Group?
When specifying or installing three-phase transformers, one term frequently appears in the nameplate or technical datasheet: the vector group. Although it might look like a simple alphanumeric code—like Dyn11 or YNd1—it carries crucial information about the transformer’s winding configuration and phase displacement. Misunderstanding or misapplying this parameter can lead to phase mismatches, circulating currents, or even complete system failure. So what exactly is a transformer vector group, and why does it matter?
A transformer vector group defines the configuration of the primary and secondary windings (delta or star), their relative phase displacement in clock notation, and the internal connection of windings, allowing engineers to understand how voltage phases align and how transformers can be paralleled, grounded, or connected in a power system.
This alphanumeric code isn’t just a label—it’s a roadmap for compatibility, grounding design, fault tolerance, and harmonic behavior. Whether you're dealing with parallel operation, substation design, or transformer procurement, understanding vector groups is essential. Let’s break it down from the basics to practical application.
Transformer vector group indicates the core material of the transformer.False
The vector group does not describe construction materials; it specifies winding connections and phase displacement.
Matching vector groups is essential for paralleling transformers.True
Transformers must have the same vector group to ensure phase alignment and prevent circulating currents when connected in parallel.
What Does the Vector Group Tell You?
A transformer vector group code such as Dyn11 contains three parts:
| Symbol Part | Meaning | Example Value |
|---|---|---|
| Primary Winding | Connection type (Y = Star, D = Delta, Z = Zigzag) | D |
| Secondary Winding | Connection type + neutral availability (n = neutral) | yn |
| Phase Displacement | Angular shift of secondary voltage vs. primary, expressed as clock position | 11 (30° lag) |
Example: Dyn11
- D: Primary winding is connected in Delta
- y: Secondary winding is connected in Star
- n: Neutral is brought out on secondary side
- 11: Phase shift is 30° lag (secondary lags primary by 30°, or 330° lead)
This information is crucial for determining how this transformer interacts with other system components and how it behaves under fault or load imbalance.
Common Transformer Vector Groups and Their Characteristics
| Vector Group | Primary–Secondary | Phase Shift | Typical Use Case |
|---|---|---|---|
| Dyn11 | Delta-Star | +30° | Distribution transformers |
| Dyn1 | Delta-Star | –30° | Industrial systems |
| Yyn0 | Star-Star | 0° | Generators, neutral grounding |
| Dd0 | Delta-Delta | 0° | Industrial motors |
| YNd1 | Star-Delta | –30° | Load balancing applications |
Clock Notation Explained
The clock notation in the vector group refers to the phase shift between the high-voltage and low-voltage windings, based on a 12-hour clock face.
- 12 o’clock (0): No phase shift
- 3 o’clock (3): 90° lag
- 6 o’clock (6): 180° lag
- 11 o’clock (11): 30° lag
The high-voltage winding is assumed to be the reference. The number shows where the secondary voltage lags behind the primary.
Diagram: Clock Notation and Phase Shift Reference
(Insert illustration showing clock face with positions 0, 1, 3, 6, 11, and corresponding degrees of phase displacement.)
Practical Implications of Vector Groups
1. Paralleling Transformers
Transformers must have:
- The same vector group
- The same phase shift
- Identical voltage ratios
Mismatch in vector group = circulating current, out-of-phase voltages = major system fault.
2. Harmonic Mitigation
Delta windings block triplen (third-order) harmonics. That’s why Dyn11 is preferred in distribution—cleaner power on the LV side.
| Connection | Harmonic Handling | Impact |
|---|---|---|
| Delta | Circulates triplen harmonics | Prevents propagation to grid |
| Star | Passes all harmonics | Needs filters if loads are non-linear |
3. Fault Isolation and Grounding
Vector group determines:
- Which side is grounded
- How zero-sequence currents flow
- Whether earth faults trip correctly
Star (Y) with neutral enables easier grounding and fault protection schemes.
Case Study: Mismatched Vector Groups in Parallel Operation
A utility connected a Dyn11 transformer in parallel with a Dyn1 unit. After energization:
- Voltage mismatch appeared between secondary phases
- Circulating currents triggered differential protection
- Equipment was isolated and reconfigured
Lesson: Even a 60° phase difference (Dyn11 vs Dyn1) can destroy synchronization and load sharing.
Vector Group Summary Table
| Code | Primary | Secondary | Neutral | Phase Shift | Notes |
|---|---|---|---|---|---|
| Dyn11 | Delta | Star | Yes | +30° | Most common for 11kV–400V |
| Dyn1 | Delta | Star | Yes | –30° | Used in some industries |
| Yyn0 | Star | Star | Yes | 0° | Used in generators |
| Dd0 | Delta | Delta | No | 0° | Parallel operation cases |
| YNd5 | Star | Delta | No | +150° | Used in older substations |
How Do You Read a Vector Group Designation (e.g., Dyn11)?
When working with three-phase transformers, especially in medium and high-voltage systems, you’ll encounter designations like Dyn11, Yyn0, or Dd6. These aren’t random codes—they provide essential information about the transformer’s winding configuration and phase relationship. Misreading a vector group code can lead to serious commissioning errors such as circulating currents, voltage imbalance, and even protection system failures. So how do you correctly read and interpret these notations, particularly something like Dyn11?
A transformer vector group designation like Dyn11 indicates the primary and secondary winding configurations (Delta or Star), the availability of a neutral connection, and the phase displacement between the high-voltage and low-voltage windings expressed in clock notation; for example, Dyn11 means a Delta-connected primary, a Star-connected secondary with neutral brought out, and a 30° lagging phase shift (equivalent to 11 o'clock on a clock face).
Understanding this code is critical for transformer selection, parallel operation, grounding strategy, and harmonic performance. Let's break down Dyn11 and other vector group designations in a step-by-step manner with practical meaning and visual references.
Vector group notation provides information about winding insulation class.False
Vector group only describes winding connections and phase displacement—it does not indicate insulation material or class.
The number in a vector group like Dyn11 indicates the phase shift in clock hours.True
The number represents the phase angle displacement between the primary and secondary voltages in terms of a 12-hour clock, where each hour equals 30 degrees.
What Are the Components of a Vector Group Code?
A vector group code consists of three elements, each revealing critical design data.
| Component | Description | Example from Dyn11 |
|---|---|---|
| First letter (capital) | Primary (HV) winding configuration | D = Delta |
| Second letter (lowercase) | Secondary (LV) winding configuration | y = Star |
| Third letter (optional) | Neutral availability on secondary | n = Neutral brought out |
| Number (0–11) | Clock-based phase displacement | 11 = 30° lag |
Breakdown of “Dyn11”
- D: Delta connection on the primary (high-voltage) side.
- y: Star connection on the secondary (low-voltage) side.
- n: Neutral is accessible from the star side (often grounded).
- 11: The secondary voltage lags the primary voltage by 30° (11 × 30° = 330° lead or 30° lag).
Understanding the Clock Notation
Clock notation represents the phase shift between the secondary voltage and the primary voltage, using the hour positions of a clock:
| Clock Position | Angle (Degrees) | Description |
|---|---|---|
| 0 | 0° | No phase shift |
| 1 | 30° lead | Secondary leads primary |
| 11 | 30° lag | Secondary lags primary |
| 6 | 180° | Complete phase reversal |
In Dyn11:
- Primary is the reference (placed at 12 o’clock)
- Secondary lags by 30°, thus aligned with 11 o’clock
Visual: Clock Representation of Dyn11
(Include an image showing 12 o’clock for HV and 11 o’clock for LV vector position to demonstrate 30° lag.)
Examples of Other Common Vector Groups
| Vector Group | Meaning | Phase Shift |
|---|---|---|
| Yyn0 | Star–Star, neutral available, no shift | 0° |
| Dd0 | Delta–Delta, no phase shift | 0° |
| Dyn1 | Delta–Star, neutral available, 30° lead | –30° |
| YNd5 | Star–Delta, no neutral, 150° lag | 150° |
Note: When paralleling transformers, the vector groups must match exactly—especially the number part—to avoid destructive phase conflicts.
How to Determine the Vector Group in Practice
- Check nameplate – Clearly marked on transformer ratings plate
- Review schematic diagram – Confirms internal winding connection
- Test phase shift – Using a voltage vector test kit (e.g., three-phase voltage comparison method)
Practical Implications of Vector Group Designation
| Functionality Affected | Importance of Vector Group |
|---|---|
| Parallel operation | Must match vector group exactly |
| Grounding strategy | Depends on ‘n’ (neutral availability) |
| Harmonic mitigation | Delta blocks triplen harmonics |
| Fault current path | Determined by phase displacement and winding config |
| System protection coordination | Relays must be configured with correct phase shift |
Case Example: Why Dyn11 Is Common in Distribution Networks
- Delta primary: Handles unbalanced loads and blocks zero-sequence harmonics
- Star secondary with neutral: Enables solid grounding, protective relaying, and 3-phase + neutral supply
- 11 clock (30° lag): Synchronizes well with standard utility systems for safe parallel operation
What Are Common Vector Groups and Their Applications?
When choosing a transformer for your electrical system, the vector group is as important as the voltage rating and capacity. It defines how the transformer's windings are connected—delta, star, or zigzag—and how the phase angles of the primary and secondary voltages relate. This impacts grounding, harmonics, parallel operation, fault behavior, and even the success of your system's protection strategy. But with designations like Dyn11, YNd1, or Dd0, which vector group is best suited for what purpose?
Common vector groups like Dyn11, Yyn0, Dd0, and YNd5 are selected based on system needs—Dyn11 is widely used in distribution for its grounding and harmonic benefits, Yyn0 is preferred for generators with neutral grounding, Dd0 is suitable for industrial motor drives, and YNd5 is used in specific phase-shift applications. The choice depends on voltage levels, grounding requirements, harmonics, and system integration needs.
Each group has a distinct function in power system engineering. Understanding the most frequently used vector groups and where they fit can help you select transformers that are compatible, efficient, and reliable in your application.
All vector groups can be interchanged in power systems without affecting performance.False
Vector groups determine phase displacement and grounding behavior; mismatched groups in parallel can cause severe performance issues and system failures.
Dyn11 is the most commonly used vector group in medium-voltage distribution systems.True
Dyn11 provides 30° phase shift, good harmonic suppression, and accessible neutral, making it ideal for LV distribution networks.
Overview of Common Vector Groups
| Vector Group | Winding Connection | Phase Displacement | Neutral | Typical Applications |
|---|---|---|---|---|
| Dyn11 | Delta–Star | +30° lag | Yes | MV/LV distribution transformers |
| Dyn1 | Delta–Star | –30° lead | Yes | Older networks, specific loads |
| Yyn0 | Star–Star | 0° | Yes | Generator step-up transformers |
| Dd0 | Delta–Delta | 0° | No | Industrial systems, motors |
| YNd1 | Star–Delta | –30° lead | No | Transmission voltage reduction |
| Yzn11 | Star–Zigzag | +30° lag | Yes | Earthing transformers, harmonics |
| Zyn1 | Zigzag–Star | –30° lead | Yes | Special grounding & filtering |
Dyn11 – The Distribution Standard
Why it’s common:
- Delta primary handles unbalanced loads and blocks triplen harmonics
- Star secondary provides a grounded neutral for protective relays
- 30° phase displacement (clock 11) aligns with standard grid conventions
Applications:
- 11kV/415V distribution transformers
- LV supply to homes, commercial loads
- Parallel operation in substations
| Feature | Benefit |
|---|---|
| Neutral grounding | Enables earth fault protection |
| Harmonic suppression | Reduces 3rd harmonics in LV |
| Parallel compatibility | Standardized displacement |
Yyn0 – The Generator’s Companion
Why it’s used:
- Identical star-star winding produces zero phase shift
- Simplifies synchronization with generator terminals
- Neutral readily available for grounding
Applications:
- Generator step-up transformers
- Internal plant power systems
- Backup diesel genset interfacing
| Feature | Benefit |
|---|---|
| Simple phasing | Zero displacement |
| Grounding capability | Direct neutral connection |
| Balanced loading | Ideal for symmetrical generator load |
Dd0 – Compact & Phase-Aligned
Why it’s preferred:
- Delta-delta configuration eliminates neutral issues
- Zero phase displacement allows simple inter-transformer operation
Applications:
- Industrial motor drives (LV–LV)
- Furnace or welding power supplies
- Transformers supplying phase-aligned 3-phase equipment
| Feature | Benefit |
|---|---|
| No neutral | No earth-fault current flow |
| Harmonic blocking | Reduces 3rd harmonic circulation |
| Compact design | No need for neutral connection |
YNd1 – High Voltage Downstep
Why it’s used:
- Star primary simplifies HV grid grounding
- Delta secondary used for industrial or utility loads
- –30° phase shift aids in phase balancing
Applications:
- HV to MV substations
- Grid tie-in to industrial plants
- Transformer banks with load balancing needs
| Feature | Benefit |
|---|---|
| Star grounding | Safer HV design |
| Delta LV output | Harmonic isolation, load balance |
| Phase shift (–30°) | Compatibility with Dyn1/Dd1 networks |
Yzn11 – The Harmonic Manager
Why it’s chosen:
- Zigzag configuration splits zero-sequence components
- Excellent for grounding and 3rd harmonic suppression
Applications:
- Earthing transformers
- Traction systems (railways)
- Non-linear load centers (with UPS, drives)
| Feature | Benefit |
|---|---|
| Zigzag connection | Harmonic filtering, phase balancing |
| Star-grounded secondary | Protects sensitive electronics |
| Resilience under imbalance | Excellent for fault-tolerant systems |
Vector Group and Parallel Operation Compatibility
| Vector Group | Can Parallel With | Notes |
|---|---|---|
| Dyn11 | Dyn11 | Standard for distribution |
| Dd0 | Dd0 | Used in motor-heavy environments |
| Yyn0 | Yyn0 | For synchronized generation |
| YNd1 | YNd1 | Requires same displacement |
Rule: Phase shift must match exactly (e.g., 30° lag ≠ 30° lead). Otherwise, voltages are out-of-sync, causing circulating currents or protection malfunctions.
Why Is Vector Group Matching Important in Parallel Operation?
In medium- and high-voltage substations, operating transformers in parallel is a common strategy to increase load capacity, improve reliability, and ensure system redundancy. However, successful parallel operation requires more than just equal voltage ratings and power ratings. One critical—but often overlooked—requirement is vector group matching. Mismatched vector groups cause phase displacement errors, circulating currents, or complete synchronization failure. When not properly matched, parallel transformers can lead to overheating, protective relay trips, or catastrophic damage.
Vector group matching is essential in parallel transformer operation because it ensures the same phase displacement and winding configuration between units; mismatched vector groups lead to voltage phase misalignment, which causes circulating currents, unbalanced load sharing, and potential system instability or equipment failure.
This article will explain how vector groups impact phase relationships, how mismatches manifest in real systems, and the engineering rules for successful parallel transformer operation.
Transformers with different vector groups can always be paralleled if their voltages match.False
Voltage matching alone is not sufficient—vector group mismatches cause phase angle errors and result in unbalanced or destructive parallel operation.
Matching the clock number in the vector group is critical for parallel transformer compatibility.True
The clock number represents the phase displacement between primary and secondary windings; mismatched clock numbers cause phase errors in secondary voltages when paralleled.
What Is a Vector Group and Why Does It Matter?
A transformer’s vector group defines:
- Winding configuration: Star (Y), Delta (D), or Zigzag (Z)
- Neutral availability: ‘n’ indicates neutral brought out
- Phase displacement: Expressed using clock notation (e.g., Dyn11 = 30° lag)
Parallel operation requirement:
Both transformers must have the same vector group (including clock number) to operate in parallel safely.
| Example Comparison | Vector Group | Compatible for Parallel? |
|---|---|---|
| Transformer A | Dyn11 | Yes (with Dyn11) |
| Transformer B | Dyn1 | ❌ No (phase displacement is –30°) |
What Happens If Vector Groups Don’t Match?
Phase Angle Mismatch
If two transformers have different clock numbers, the secondary line voltages are not in phase. Even a 30° mismatch causes:
- Phase conflicts
- Circulating currents
- Overheating of transformer windings
- Tripping of protection relays
Circulating Current Example
| Scenario | Result |
|---|---|
| One transformer = Dyn11 | Second transformer = Dyn1 |
| Phase difference = 60° | Huge circulating current develops |
| Protection = Relay trips | Load transfer fails, supply disrupted |
Important: Even a same primary and secondary winding type (e.g., Delta-Star) cannot save you if the clock number differs.
Conditions for Parallel Operation of Transformers
To parallel transformers successfully, all the following must be identical or within acceptable tolerance:
| Parameter | Requirement |
|---|---|
| Voltage ratio | Same (within 0.5%) |
| Phase sequence | Same |
| Vector group | Identical (e.g., Dyn11 with Dyn11) |
| Impedance | Similar (within ±10%) |
| Tap changer settings | Aligned for equal voltage |
| Frequency | Same (typically 50/60 Hz) |
Clock Number: The Hidden Danger in Vector Groups
Clock notation (e.g., Dyn11) defines how much the LV side lags or leads the HV side.
| Vector Group | Clock Number | Phase Displacement |
|---|---|---|
| Dyn11 | 11 | +30° lag |
| Dyn1 | 1 | –30° lead |
| Dd0 | 0 | 0° phase shift |
| YNd5 | 5 | +150° lag |
Paralleling Dyn11 with Dyn1 = total 60° difference → incompatible.
Case Study: Parallel Operation Failure Due to Vector Group Mismatch
In a municipal substation:
- Two 20 MVA transformers were connected in parallel
- One unit was Dyn11; the other was mistakenly specified as Dyn1
- After load application, voltage waveform distortion and excessive heating were observed
- Within minutes, both transformers tripped on differential protection
Lesson: Even a 30° phase error caused massive system instability. Cost of damage and recovery: $150,000+
Acceptable Vector Group Combinations
| Pairing Group | Compatible? | Notes |
|---|---|---|
| Dyn11 – Dyn11 | ✅ Yes | Standard in distribution networks |
| Dd0 – Dd0 | ✅ Yes | Acceptable in motor loads |
| Yyn0 – Yyn0 | ✅ Yes | Used in generator step-up operations |
| Dyn11 – Dyn1 | ❌ No | 60° phase shift mismatch |
| YNd5 – YNd1 | ❌ No | 120° phase shift difference |
Rule of thumb: Same vector group = same phase behavior = safe parallel operation.
Summary Table: What to Check Before Paralleling Transformers
| Parameter | Ideal Condition | Deviation Effect |
|---|---|---|
| Voltage ratio | ±0.5% | Unequal voltage sharing |
| Vector group | Identical (e.g., Dyn11 & Dyn11) | Phase mismatch, instability |
| Clock number | Same | Prevents circulating current |
| Phase sequence | Same ABC | Avoid reverse rotation |
| Impedance | Within ±10% | Uneven load distribution |
How Is Vector Group Determined During Transformer Testing?
When receiving, installing, or troubleshooting a three-phase transformer, one of the critical checks is verifying its vector group—a code that defines the winding configuration and the phase relationship between the high-voltage and low-voltage windings. While manufacturers label the vector group on the nameplate (e.g., Dyn11, Yyn0, Dd0), field testing is required to confirm its correctness before energization. This is especially vital during factory acceptance tests (FAT), site acceptance tests (SAT), or after repairs.
The vector group of a transformer is determined during testing by applying three-phase voltage to the primary winding and measuring the voltage and phase displacement on the secondary winding; the results are then analyzed using the clock method or phase vector diagram to identify winding configuration and angular displacement, confirming the correct vector group code.
Mislabeling, wiring errors, or internal faults can cause mismatches in vector group, leading to serious operational problems. Hence, determining the vector group accurately during testing is essential for safe parallel operation and system compatibility.
Transformer vector group can be verified without energizing the transformer.True
Low-voltage test methods can determine the vector group without fully energizing the transformer; typically, a three-phase supply or test set is applied at low voltage during factory or site tests.
Vector group testing is only necessary for custom transformers.False
All transformers, whether standard or custom, must have their vector group confirmed through testing before commissioning to avoid phase mismatch and system issues.
Why Is Vector Group Testing Important?
Verifying the vector group through testing ensures:
- Correct phase displacement between windings
- Accurate winding configuration (star, delta, zigzag)
- Validity for parallel operation with other transformers
- Grounding and protection schemes will function properly
Failure to test the vector group may result in:
- Circulating currents during parallel operation
- Voltage waveform distortion
- Incorrect relay tripping or protection malfunction
- System failure upon energization
Methods Used to Determine Transformer Vector Group
1. Three-Phase Voltage Injection Method (Clock Method)
Procedure:
- Apply balanced three-phase voltage (e.g., 3×400V) to the primary (HV) side
- Measure voltages between:
- Each phase of primary (H1-H2-H3)
- Each phase of secondary (X1-X2-X3)
- Phase-to-phase and phase-to-neutral (if available)
Use a phase-angle meter or oscilloscope to determine the displacement angle between the primary and secondary voltages.
Interpretation:
- The measured angle is compared with clock hour positions
- For example, if the LV side lags HV by 30°, it's Dyn11
- If there's no phase shift, it's Yyn0
- If the LV leads HV by 30°, it's Dyn1
| Clock Position | Phase Displacement | Vector Group Example |
|---|---|---|
| 0 | 0° | Yyn0, Dd0 |
| 1 | –30° | Dyn1, YNd1 |
| 11 | +30° | Dyn11, Yzn11 |
2. Phase Relationship (Vector Diagram) Method
Procedure:
- Connect a low-voltage single-phase supply between two terminals on the primary
- Measure resulting voltage vectors on the secondary
- Rotate primary and secondary connections to form a full three-phase vector set
Analysis:
- Plot the vector diagram using measured voltages
- Compare the actual phase shift between primary and secondary sets
- Match the vector pattern with standard configurations
| Tool Required | Purpose |
|---|---|
| Phase angle meter | Measures angle between vectors |
| Voltmeter | Measures magnitude of phase voltages |
| Oscilloscope (optional) | Visualizes waveform shift |
This method is useful in workshops or on-site if three-phase supply is unavailable.
3. Automatic Vector Group Test Set (Modern Method)
Advanced test sets like OMICRON CT Analyzer, Megger TTR, or ISA TDX-120 can:
- Inject low-voltage test signals
- Measure phase displacement and winding connections
- Automatically compute and display vector group
| Advantage | Explanation |
|---|---|
| Fast and accurate | Automatic results in minutes |
| Minimizes manual error | No complex calculations needed |
| Generates vector diagram | Useful for reports and documentation |
Used during FAT or SAT, especially for critical infrastructure like substations and transformers over 10 MVA.
Example: Testing a Dyn11 Transformer
Test Result Interpretation:
- Primary voltage: 3-phase balanced input
- Secondary voltage: Measured to lag primary by 30°
- Phase vector: Delta (primary), Star (secondary), neutral brought out
- Confirmed vector group: Dyn11
Visual: Vector Diagram with 30° Lag
(Insert labeled diagram showing phase vectors aligned at 12 (HV) and 11 (LV))
Summary Table: Vector Group Testing Methods
| Method | Tools Needed | Complexity | Accuracy | Offline/Online |
|---|---|---|---|---|
| Clock Method (3-phase) | Voltmeter, angle meter | Medium | High | Offline |
| Vector Diagram (manual) | Single-phase source, voltmeter | High | Medium | Offline |
| Automatic Test Set | TTR or analyzer | Low | Very High | Offline |
Additional Tips for Accurate Testing
- Ensure transformer is de-energized during test
- Disconnect all external load and control wiring
- Check for correct polarity on terminals (H1-H3, X1-X3)
- Always verify phase sequence before interpreting angle
- Use manufacturer vector group table for cross-checking
What Are the Effects of Incorrect Vector Group Selection?
Transformer vector groups are not optional specifications—they are essential design parameters that define how transformer windings are internally connected and how their output voltages relate in phase. Choosing or connecting transformers with the wrong vector group can severely disrupt your power system. While vector group mismatches might appear harmless on paper, in practice they can cause serious electrical problems, ranging from unbalanced load sharing to catastrophic transformer failure.
Incorrect vector group selection causes phase displacement mismatches between transformers, resulting in circulating currents, relay malfunctions, voltage imbalance, overheating, harmonic interference, and ultimately system instability or equipment failure—especially when transformers are paralleled or integrated into three-phase networks.
Understanding these effects is crucial for engineers, technicians, and asset managers involved in transformer selection, installation, and parallel operation. This article explores the technical consequences of incorrect vector group selection with real-world examples and mitigation strategies.
Incorrect vector group selection has no impact if voltage levels match.False
Even if voltage levels are matched, a vector group mismatch introduces phase errors that can cause damaging currents and protection failures.
Vector group mismatches are one of the main causes of failure during transformer parallel operation.True
Parallel operation requires matching phase displacement and configuration—mismatched vector groups are a common and dangerous mistake.
Why Vector Group Selection Matters
A vector group defines:
- Winding configuration (Star, Delta, Zigzag)
- Neutral availability
- Phase displacement between HV and LV sides (e.g., Dyn11 = 30° lag)
When transformers are connected together (parallel operation) or integrated into phase-sensitive applications, their voltage phase angles must align perfectly. A mismatch disrupts this alignment and introduces a cascade of problems.
Key Effects of Incorrect Vector Group Selection
1. Circulating Currents Between Transformers
When two transformers with different vector groups (e.g., Dyn11 and Dyn1) are paralleled:
- Secondary voltages are out of phase
- A phase shift mismatch (e.g., 60°) creates voltage differences
- This causes circulating current to flow between the transformer secondaries—not the load
| Result | Consequence |
|---|---|
| Internal winding overload | Overheating, insulation damage |
| Protection trip | System blackout risk |
| Energy waste | Poor efficiency |
Even a 30° mismatch creates damaging unbalanced currents that may go undetected until failure occurs.
2. Relay Protection Malfunction
Protection systems rely on accurate phase alignment for:
- Overcurrent
- Differential
- Directional earth fault
- Distance relays
With a vector group mismatch:
- CTs and PTs produce incorrect phase references
- Differential protection trips due to false imbalance
- Earth fault relays may fail to detect ground faults or trip falsely
| Misbehavior | Fault Risk |
|---|---|
| False tripping | Loss of supply, plant outage |
| No tripping on real fault | Equipment damage or fire |
In substations, protection relay misoperation due to vector error is a top cause of unexpected disconnections.
3. Unbalanced Load Sharing in Parallel Transformers
Two transformers with different vector groups, even if same voltage rating:
- Will not share load evenly
- One may operate at near full load
- The other remains underutilized or overloaded in reverse sequence
| Imbalance Type | Impact |
|---|---|
| Thermal | One transformer overheats |
| Electrical | Unbalanced voltage, power loss |
| Economic | Reduced transformer life |
Load sharing requires identical phase relationships, not just same voltage and kVA.
4. Voltage Distortion and Harmonic Resonance
Improper phase alignment causes:
- Inter-phase voltage spikes
- Third harmonic propagation through star windings
- No cancellation of zero-sequence components
| Harmonic Issue | Source |
|---|---|
| Triplen harmonics | Star with no delta shielding |
| Voltage waveform distortion | Zigzag/star conflict |
| Resonant overvoltage | Faulty grounding path interaction |
Harmonics not only distort voltages, but also damage sensitive equipment like VFDs, PLCs, and control relays.
5. Grounding and Neutral Compatibility Errors
When vector groups differ:
- One unit may provide a grounded neutral
- The other may be floating or delta wound
- Ground faults may not return correctly, confusing the protection system
| Effect | Risk |
|---|---|
| False relay operation | Disconnection without real fault |
| Inadequate fault clearance | Equipment failure, fire |
| Safety hazards | Shock risk to personnel |
Mismatched neutral points between vector groups can make fault location and clearance nearly impossible.
Real-World Case Study
Substation Incident: Dyn11 vs Dyn1
- Two 10 MVA transformers paralleled to supply a 33kV/11kV bus
- One mistakenly ordered as Dyn1 instead of Dyn11
- Phase difference = 60° → high circulating current observed
- Bus voltage became unstable, relay tripped entire feeder
- Transformer insulation damage: repair cost $80,000
Lesson: Even experienced engineers must validate vector groups during pre-commissioning testing.
Summary Table: Effects of Incorrect Vector Group
| Problem Area | Effect | Severity |
|---|---|---|
| Load Sharing | Uneven or reverse power flow | High |
| Circulating Current | Transformer overheating, loss of life | Critical |
| Relay Coordination | False or failed tripping | High |
| Grounding | Unclear or ineffective fault return path | High |
| Harmonics | Voltage waveform distortion | Moderate |
How to Avoid Vector Group Mistakes
- Specify vector group clearly when ordering transformers
- Use standardized vector groups (e.g., Dyn11 for distribution)
- Perform vector group testing using a clock method or automatic test set
- Never assume “same voltage = same phase”
- Document and label transformer windings properly
Conclusion
The transformer vector group is far more than a technical label—it's a blueprint for how a transformer interacts within a power system. It ensures phase alignment, proper load sharing, and safe parallel operation, especially in complex grid environments. Understanding vector groups helps engineers make informed decisions about transformer selection, installation, and system compatibility. In a world where reliability and synchronization are critical, vector group knowledge is a key to maintaining a stable and efficient power infrastructure.
FAQ
Q1: What is a transformer vector group?
A1: A transformer vector group is a classification that indicates the winding configuration (delta or star) and the phase displacement between the primary and secondary windings. It uses a standardized alphanumeric code (like Dyn11) to describe how the windings are connected and how their phases align.
Q2: What do the letters and numbers in a vector group like Dyn11 mean?
A2: In "Dyn11":
D represents a Delta connection on the high-voltage side.
y indicates a Star (wye) connection on the low-voltage side.
n means the star point is neutral and accessible.
11 shows the phase displacement (in clock notation), meaning the low-voltage side lags the high-voltage side by 330° (or leads by 30°).
Q3: Why is vector group important in transformers?
A3: The vector group is crucial because it affects transformer phase shift, system compatibility, and parallel operation. Transformers with incompatible vector groups cannot be connected in parallel without causing circulating currents or unbalanced voltages.
Q4: How does the vector group affect transformer parallel operation?
A4: For two transformers to operate in parallel, they must have the same vector group, identical voltage ratios, and impedance characteristics. If their vector groups differ, phase mismatches can result, causing serious operational issues or damage.
Q5: How is the transformer vector group determined or tested?
A5: The vector group is verified through vector group testing, which involves applying voltages and measuring phase angles between windings. The measured results are compared with standard phase shift values defined in vector group tables (e.g., IEC 60076-1).
References
"Transformer Vector Group: Basics and Importance" – https://www.transformertech.com/vector-group-basics – Transformer Tech
"Understanding Transformer Vector Groups" – https://www.powermag.com/transformer-vector-group-explained – Power Magazine
"Transformer Vector Group Explained with Examples" – https://www.electrical4u.com/transformer-vector-group/ – Electrical4U
"Phase Displacement and Winding Configuration in Transformers" – https://www.researchgate.net/transformer-vector-group-study – ResearchGate
"How Vector Groups Affect Parallel Transformer Operation" – https://www.sciencedirect.com/transformer-parallel-operation – ScienceDirect
"Importance of Vector Group Selection in Transformers" – https://www.smartgridnews.com/transformer-vector-selection – Smart Grid News
"EnergyCentral Guide to Transformer Winding and Phase Configuration" – https://www.energycentral.com/c/ee/transformer-vector-group-guide – Energy Central
"PowerGrid Insights on Transformer Vector Compatibility" – https://www.powergrid.com/transformer-vector-group-analysis – PowerGrid
