What does a transformer do (in simple terms)?

Transformers are everywhere in the power system, yet their function is simple and elegant. While many electrical devices are complex in both design and operation, the transformer’s main job is straightforward: change voltage levels. This voltage conversion is what makes long-distance transmission practical and electricity usable in homes and industries. Let's explore what a transformer does—in the simplest terms.

---

What Is a Transformer and How Does It Work?

Transformers are fundamental to the generation, transmission, and use of electricity. Without them, it would be impossible to deliver power efficiently over long distances or safely to our homes and industries. Yet despite their widespread use, many people don’t fully understand what a transformer is or how it functions. Misuse or misapplication can lead to inefficiency, overheating, or even equipment failure. Understanding how transformers work is key to designing, maintaining, and troubleshooting modern power systems.

A transformer is a static electrical device that transfers electrical energy from one circuit to another through electromagnetic induction, typically changing the voltage level in the process. It works by using a magnetic core and two or more wire windings—primary and secondary—so that when alternating current flows through the primary winding, it creates a magnetic field that induces voltage in the secondary winding. This allows the transformer to step voltage up or down without changing the frequency.

In this article, we explain the structure, working principle, types, and real-world applications of transformers—demystifying how they power modern life.

---

1. What Is a Transformer?

Feature	Description
Device type	Passive, electromagnetic, static
Core function	Voltage transformation via electromagnetic induction
Input/output	Primary (input) and secondary (output) windings
Current type	Works only with AC (Alternating Current)
Frequency	Does not change—input and output frequencies are the same

Transformers are used to increase (step-up) or decrease (step-down) voltage levels for efficient power transfer.

---

2. Basic Working Principle of a Transformer

Component	Function
Primary winding	Receives AC voltage and generates a magnetic field
Magnetic core	Channels the magnetic flux between windings
Secondary winding	Induces a voltage through mutual induction

How It Works:

1. An AC voltage is applied to the primary winding.
2. This creates a changing magnetic field in the core.
3. The magnetic field induces a voltage in the secondary winding.
4. The voltage induced depends on the turns ratio between the windings.

No electrical connection exists between the input and output—only magnetic coupling.

---

3. Voltage Transformation Equation

$$\frac{V_1}{V_2} = \frac{N_1}{N_2}$$

Symbol	Meaning
$V_1$	Voltage at primary winding
$V_2$	Voltage at secondary winding
$N_1$	Number of turns in primary coil
$N_2$	Number of turns in secondary coil

• If $N_2 > N_1$, it's a step-up transformer
• If $N_2 < N_1$, it's a step-down transformer

---

4. Types of Transformers by Application

Type	Description and Use Case
Power Transformer	High-voltage transformation (e.g., 132/400 kV) in substations
Distribution Transformer	Low-voltage delivery to homes or businesses (e.g., 11/0.4 kV)
Isolation Transformer	Provides electrical isolation (1:1 ratio typically)
Auto-transformer	Single winding shared by input and output (no isolation)
Instrument Transformer	Used for measurement: CT (current) and PT (potential)

---

5. Transformer Construction Components

Component	Function
Core	Magnetic path for flux; typically made of CRGO steel
Windings	Coils of copper or aluminum wire to carry current
Insulation	Electrical isolation between windings and core
Tank and oil	Cools and insulates; used in larger transformers
Tap changer	Adjusts voltage ratio under load or no-load conditions
Bushings	Safe external connections for high-voltage terminals

Design details vary based on voltage, capacity, and application.

---

6. Common Use Cases of Transformers

Sector	Application Example
Power generation	Step up 11/22 kV generator output to 132/400 kV grid
Transmission networks	Interconnects different regional voltages
Industrial plants	Step down 132/66 kV to 11/6.6 kV for motors, drives
Commercial buildings	Distributes 11/0.4 kV to internal systems
Residential areas	Local step-down from 11 kV to 400/230 V

---

7. Why Transformers Are Indispensable

Reason	Explanation
Energy efficiency	Transmit high voltage at low current to reduce losses
Voltage safety	Supplies safe voltage levels to end-users
Load adaptability	Matches generation output to user demand
Network flexibility	Supports multi-voltage, multi-phase systems
Protection and isolation	Shields equipment from faults and disturbances

Without transformers, our entire AC power grid architecture would not function.

---

Summary Table: Key Facts About Transformers

Feature	Detail
Energy transfer method	Magnetic induction
Operates on	Alternating current (AC) only
Frequency change	None (input = output frequency)
Isolation	Electrical isolation via magnetic field
Voltage transformation	Based on coil turn ratio
Core materials	CRGO steel, ferrite, or amorphous alloy
Efficiency	Up to 99.75% in modern designs

---

Why Does Electricity Need to Be Transformed?

Electricity powers everything from heavy industry to household appliances—but the voltage levels suitable for generating and transmitting power are not safe or efficient for direct end use. Without voltage transformation, electrical systems would suffer from massive energy losses, dangerous operating conditions, and costly inefficiencies. This is why transforming electricity between different voltage levels is not optional—it is absolutely essential to modern electrical infrastructure.

Electricity needs to be transformed to enable efficient long-distance transmission at high voltages, ensure safe usage at low voltages for consumers, match equipment voltage requirements, reduce transmission losses, and isolate different parts of the power grid. Transformers change the voltage levels while keeping the frequency constant, allowing for optimized energy flow and safety across all sectors.

This article explores the engineering, safety, and efficiency reasons why voltage transformation is required, and how it underpins every stage of electrical power delivery—from generation to consumption.

---

1. Why Generation and Usage Voltages Are Different

Stage	Typical Voltage	Reason for Difference
Generation (thermal/hydro)	11–33 kV	Suited to generator design limits
Transmission	132–765 kV	Reduces line losses over long distances
Distribution	33–11 kV	Delivers manageable voltage to local areas
Consumer use	400/230 V	Safe for appliances, equipment, and lighting

Voltage must be stepped up or down at each transition using power or distribution transformers.

---

2. Reducing Transmission Losses Through Voltage Step-Up

Formula: Power Loss (I²R)	Explanation
Power = Voltage × Current	For same power, higher voltage means lower current
Loss ∝ Current²	Lower current means exponentially lower loss

Example:

• Transmitting 100 MW at 11 kV vs. 400 kV:

  • At 11 kV: Current = 9,090 A (very high), high losses
  • At 400 kV: Current = 250 A (very low), minimal losses

Step-up transformers at power stations enable long-distance delivery with high efficiency.

---

3. Ensuring Safety Through Voltage Step-Down

End Use Sector	Max Safe Operating Voltage	Requires Step-Down?
Residential homes	230 V (single-phase)	✅ Yes
Commercial buildings	400 V (three-phase)	✅ Yes
Industrial machinery	6.6–11 kV (for large motors)	✅ Yes

Grid-level voltages of 132–400 kV would destroy most electrical devices and pose severe safety risks.

---

4. Matching Voltage Requirements of Different Systems

System Type	Voltage Compatibility Need
Renewable energy plants	Inverter outputs (0.4–33 kV) must be stepped up
Industrial loads	Often require 6.6 kV or 11 kV
Regional grid interconnection	May require 400/220 kV step-down transformers
Microgrids and campuses	Multiple voltage zones for lighting, HVAC, machinery

Transformers allow versatile and customized voltage matching for each zone or facility.

---

5. Isolating Electrical Sections for Safety and Protection

Isolation Need	Transformer Benefit
Prevent propagation of faults	Electrical isolation between primary/secondary
Protect sensitive equipment	Eliminates surges and harmonics
Enable grounding and neutral control	Supports controlled earthing systems

Isolation via transformers protects the grid, equipment, and human life.

---

6. Voltage Transformation Across the Power Network

Network Section	Typical Voltage Levels	Transformer Type
Generation output	11–33 kV	Generator Step-Up (GSU)
Transmission lines	132–765 kV	Power Transformer
Sub-transmission	33–132 kV	Substation Transformer
Distribution feeders	11–0.4 kV	Distribution Transformer
Internal facilities	400 V or customized LV	Isolation Transformer

Multiple transformation points ensure voltage optimization from source to socket.

---

7. What Happens Without Voltage Transformation?

Consequence	Explanation
Excessive energy loss	High current leads to thermal loss and sag
Equipment damage	Overvoltage can burn out motors, devices, and wiring
Safety hazard	High-voltage exposure risks shock and fire
Grid instability	Voltage mismatch disrupts synchronization
Incompatibility with regulations	Violates national electrical and utility codes

The entire functionality and safety of the power grid depends on correct voltage transformation.

---

Summary Table: Why Electricity Must Be Transformed

Reason	Transformer Role
Efficient transmission	Step-up voltage to reduce current and line loss
Safe usage	Step-down voltage to appliance levels
Voltage compatibility	Match generation, grid, and load requirements
Isolation and protection	Electrically separate systems for safety
Grid reliability and flexibility	Enable multi-zone, multi-voltage operations

---

What Is the Difference Between Step-Up and Step-Down Transformers?

Transformers are essential to any power system, but they are not all the same. Depending on where you are in the energy chain—from generation to transmission to end use—you’ll need a different type of transformer. Selecting the wrong one can cause voltage mismatch, equipment failure, safety hazards, and energy inefficiency. That’s why it’s crucial to understand the difference between step-up and step-down transformers—two core technologies that literally keep the grid powered.

The main difference between a step-up and a step-down transformer lies in the direction of voltage change: a step-up transformer increases voltage from low to high, typically used at the generation side, while a step-down transformer reduces voltage from high to low, typically used for distribution and end-user consumption. This is achieved by altering the number of turns in the primary and secondary windings.

This article breaks down the construction, application, and functional differences between these two transformer types so you can select and apply them correctly in any project.

---

1. Definition of Step-Up vs. Step-Down Transformers

Transformer Type	Voltage Action	Common Use Case
Step-Up Transformer	Increases voltage (e.g., 11 kV → 220 kV)	Power generation to transmission system
Step-Down Transformer	Decreases voltage (e.g., 33 kV → 11 kV)	Substation to local distribution

The difference depends on the number of turns in the coils:

• Step-up: $N{\text{secondary}} > N{\text{primary}}$
• Step-down: $N{\text{secondary}} < N{\text{primary}}$

---

2. Working Principle: Same Physics, Different Direction

Both step-up and step-down transformers use Faraday’s law of electromagnetic induction:

$$\frac{V{\text{secondary}}}{V{\text{primary}}} \frac{N{\text{secondary}}}{N{\text{primary}}}$$

Feature	Step-Up	Step-Down
Voltage increases	✅ Yes	❌ No
Voltage decreases	❌ No	✅ Yes
Current decreases	✅ Yes (higher voltage → lower current)	❌ No
Current increases	❌ No	✅ Yes (lower voltage → higher current)

Voltage and current are inversely proportional: step-up transformers reduce current, while step-down transformers increase it.

---

3. Key Differences at a Glance

Attribute	Step-Up Transformer	Step-Down Transformer
Primary winding turns	Fewer	More
Secondary winding turns	More	Fewer
Input voltage	Low	High
Output voltage	High	Low
Typical placement	Generator station → grid injection	Grid → industrial or local use
Application	Long-distance transmission	End-user supply
Energy loss reduction	Yes (via high voltage, low current)	No (final delivery stage)
Safety risk if misused	High (output at hundreds of kV)	Moderate (output for local use)

---

4. Application Examples

Step-Up Transformer Use Cases:

Sector	Example	Transformer Rating
Power generation	11 kV output to 220 kV transmission	11/220 kV, 200–1000 MVA
Renewable energy plant	33 kV inverter block to 132 kV grid	33/132 kV, 50–250 MVA
HVDC stations	AC-to-DC converter entry	400/500 kV transformer

Step-Down Transformer Use Cases:

Sector	Example	Transformer Rating
Regional substation	132 kV grid to 11 kV local network	132/11 kV, 20–160 MVA
Industrial facility	66 kV supply to 6.6 kV motor bus	66/6.6 kV, 5–50 MVA
Residential neighborhood	11 kV feeder to 0.4 kV utility supply	11/0.4 kV, 25–500 kVA

The context defines the direction of voltage flow and the type of transformer needed.

---

5. Construction and Cooling Differences

Feature	Step-Up Transformer	Step-Down Transformer
Size and weight	Larger (due to HV insulation)	Smaller for same capacity
Insulation requirements	High on secondary side	High on primary side
Cooling method	OFWF or ONAF for large units	ONAN for smaller units
Tap changer	Often on HV side	May be on LV side

Both types may use on-load tap changers (OLTC) to regulate voltage under load conditions.

---

6. Transformer Selection Based on Power Flow Direction

Scenario	Transformer Type to Use
Sending power from a power plant to the grid	Step-Up Transformer
Supplying electricity to a neighborhood	Step-Down Transformer
Delivering 132 kV to a cement factory	Step-Down Transformer
Connecting solar output to 132 kV feeder	Step-Up Transformer
Microgrid feeding national grid	Step-Up Transformer

Always base your selection on input-output voltage requirements and power direction.

---

Summary Table: Step-Up vs. Step-Down Transformers

Feature	Step-Up Transformer	Step-Down Transformer
Voltage output	Higher than input	Lower than input
Used at	Power generation and grid tie	Distribution and end user
Typical voltage range	11 → 132/220/400 kV	132/66/33 → 11/0.4 kV
Primary-secondary turns	$N_2 > N_1$	$N_2 < N_1$
Goal	Efficiency in transmission	Safety and compatibility
Core user	Utilities, generators	Industries, consumers

---

How Do Transformers Help in Power Transmission?

The modern electrical grid spans thousands of kilometers, delivering power from distant generation plants to homes, factories, and cities. But without transformers, this vast energy delivery system would be inefficient, unstable, and even dangerous. Transformers are the unsung heroes of power transmission, silently enabling the safe, efficient, and reliable transport of electricity across regions.

Transformers help in power transmission by stepping up the voltage at the generation point to reduce current and line losses during long-distance transmission, and then stepping it down near consumption points to ensure safe and compatible voltage for users. They also provide system isolation, load balancing, and voltage regulation, making them critical for maintaining efficiency, safety, and grid stability.

This article explores in detail how transformers enable high-efficiency power transmission, their role in reducing losses, and their indispensable function in the electrical grid.

---

1. Why Do We Need High Voltage for Transmission?

Transmission Variable	Impact on Efficiency
Voltage ↑	Current ↓ for same power output
Current ↓	Line losses ↓ (since $P_{\text{loss}} = I^2R$)
Conductor size ↓	Material cost ↓ and sag reduction

Example:

To transmit 100 MW:

• At 11 kV: current = \~9,090 A (huge loss)
• At 220 kV: current = \~455 A (low loss)

Transformers allow this increase in voltage at generation and decrease near loads.

---

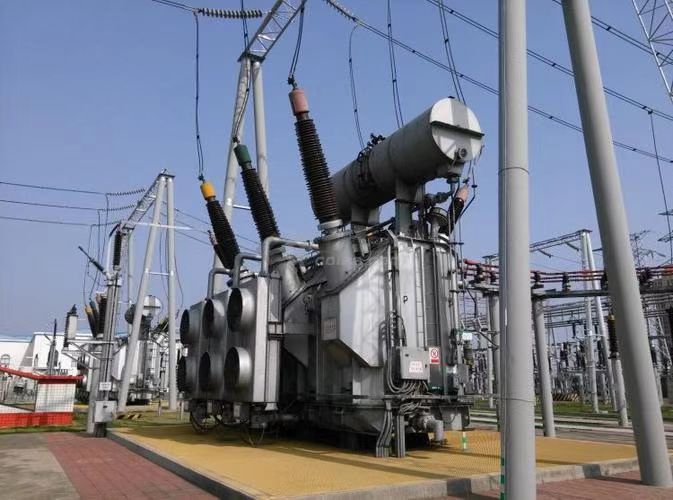

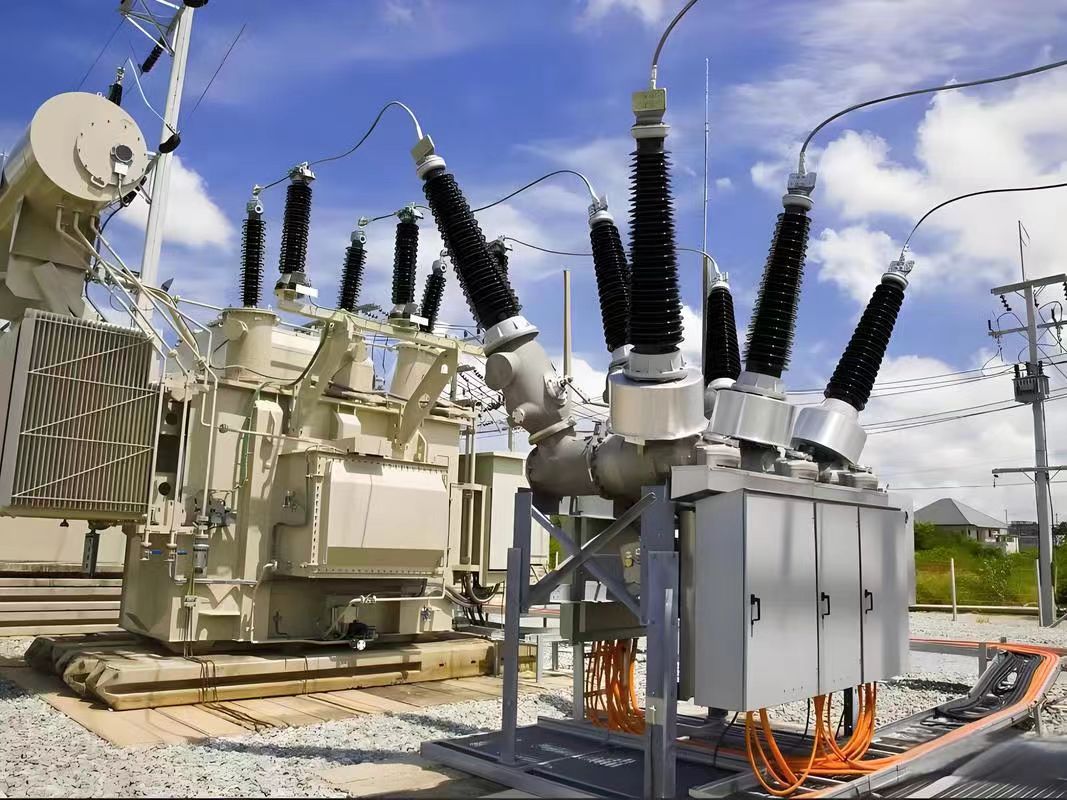

2. Transformer Roles in the Transmission System

Stage	Transformer Role	Typical Voltage Levels
Generation station	Step-up voltage for transmission	11–22 kV → 132–400+ kV
Transmission substation	Maintain high voltage, sometimes inter-step	400/220 kV, 220/132 kV
Distribution substation	Step-down for regional or industrial use	132/33 kV, 66/11 kV
End-user delivery	Step-down for homes and buildings	11/0.4 kV, 0.4/0.23 kV

Each stage relies on precision-designed transformers to control and adapt the voltage level.

---

3. How Transformers Reduce Transmission Losses

Without Transformer	With Transformer (Step-Up)
Low voltage = high current	High voltage = low current
High current = high heat loss	Low current = minimal I²R loss
Thick cables needed	Smaller, lighter conductors possible
Shorter distance viable	Longer-distance transmission feasible

Transmission Efficiency Equation:

$$P_{\text{loss}} = I^2 \times R$$

$$\text{Since } I = \frac{P}{V}, \text{ increasing } V \text{ reduces } I^2$$

Using step-up transformers multiplies voltage to shrink current and minimize loss.

---

4. System Protection and Load Management

Transformer Feature	Transmission Benefit
Electrical isolation	Prevents fault propagation
Tap changer (OLTC)	Dynamically regulates transmission voltage
Impedance	Limits fault current and stabilizes voltage
Parallel operation of transformers	Enables load sharing and redundancy

Transformers provide not only voltage conversion but also power quality management.

---

5. Real-World Use Cases

A. Thermal Power Station to Grid

• 22 kV generator output stepped up to 400 kV

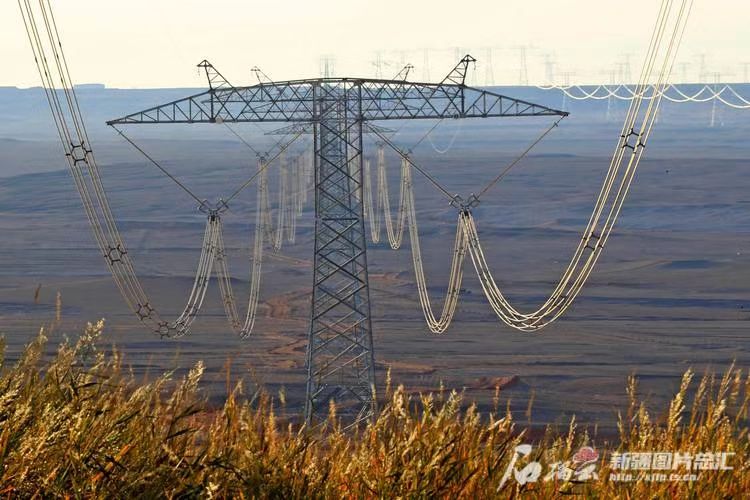

• Transmitted 500 km via HV lines
• Stepped down at receiving substation to 132 kV, then 33/11 kV

B. Wind Farm Transmission

• Turbine outputs at 690 V
• Collector transformers raise to 33 kV
• Central step-up transformer raises to 132 kV
• Power flows into the regional transmission network

These examples show how multiple transformer stages manage energy flow effectively.

---

6. Smart Grid and Monitoring Enhancements

Modern Feature	Transmission Value
SCADA integration	Remote transformer monitoring and control
Online Dissolved Gas Analysis	Detects faults in insulation early
Temperature and load sensors	Avoids overloading and improves reliability
Automatic tap changers	Maintain voltage during load swings

In modern grids, transformers are intelligent energy managers, not just passive devices.

---

Summary Table: How Transformers Help in Power Transmission

Function	Benefit
Step up voltage	Reduces current and transmission losses
Step down voltage	Makes electricity usable for local consumption
Electrical isolation	Enhances system safety and fault containment
Load balancing	Prevents overloading and equipment damage
Grid synchronization	Maintains frequency and phase alignment
Scalability	Supports expansion of transmission infrastructure

---

How Do Transformers Make Electricity Safe for Home Use?

Electricity generated at power stations is far too powerful and dangerous to be used directly in homes. High-voltage electricity—needed for long-distance transmission—can cause electrical fires, equipment damage, or fatal injuries if supplied without being stepped down. This is where transformers come into play: they act as the bridge between the high-voltage world of utility networks and the low-voltage needs of domestic environments.

Transformers make electricity safe for home use by stepping down high-voltage power from the distribution grid to a lower, usable level—typically 230 volts for single-phase or 400 volts for three-phase systems. They also isolate household circuits from high-voltage networks, protect appliances from overvoltage, and ensure stable voltage delivery.

In this article, we break down the essential role of distribution transformers and protective configurations that make home electricity both safe and reliable.

---

1. Why Home Electricity Needs to Be Stepped Down

Source Voltage Stage	Typical Value	Result Without Transformation
Generation output	11–22 kV	Unsafe for direct use
Transmission network	132–400 kV	Fatal exposure; equipment destruction
Distribution feeder	11–33 kV	Too high for household appliances
Residential supply	230 V (1-phase) or 400 V (3-phase)	Safe and compatible for domestic loads

Distribution transformers are used at the final stage to bridge this gap safely.

---

2. What Is a Distribution Transformer?

Parameter	Description
Voltage rating	11/0.4 kV, 6.6/0.4 kV, or 33/0.4 kV
Output voltage	400 V (3-phase) or 230 V (1-phase)
Mounting options	Pole-mounted, pad-mounted, or kiosk type
Core material	CRGO steel; oil-cooled or dry-type options
Phase configuration	Single-phase or three-phase, depending on load

These are compact yet powerful units, delivering low-voltage electricity to homes and neighborhoods.

---

3. How Do Transformers Ensure Electrical Safety at Home?

Safety Function	Transformer Contribution
Voltage reduction	Prevents overvoltage that could burn out equipment
Electrical isolation	Separates home circuits from dangerous grid faults
Grounding configuration	Enables proper neutral-to-earth bonding
Overload protection	Supports breaker coordination and fuse settings
Stable voltage supply	Maintains voltage even during fluctuating load

Without this transformation, every home device would be exposed to destructive voltages.

---

4. Electricity Path from Grid to Your Home

Stage	Voltage Level	Equipment Involved
Generation plant	11–22 kV	Generator step-up transformer
Transmission network	132–400 kV	Power transformers at switchyards
Distribution substation	33/11 kV	Step-down power transformers
Street-level distribution	11 kV	Distribution transformer (e.g., 11/0.4 kV)
Home delivery	230 V (L-N), 400 V (L-L)	Service cable and main breaker panel

This multi-stage voltage transformation ensures that what reaches your wall socket is controlled and safe.

---

5. Transformer Placement in Residential Systems

Installation Type	Common Location	Typical Application
Pole-mounted	Rural or semi-urban areas	Serves small clusters of homes
Pad-mounted	Urban/suburban areas	Hidden in secure boxes or kiosks
Indoor substation	Large apartments or campuses	Integrated into building infrastructure

Transformer type and placement depend on population density and urban design.

---

6. How Transformers Protect Home Appliances

Problem	Transformer Role
High voltage surge	Acts as a buffer and controls voltage flow
Voltage dips or sags	Tap changers adjust to regulate output
Short circuit on grid	Electrical isolation prevents propagation
Overheating risk	Reduces current by maintaining correct voltage

These protections ensure that your TV, fridge, lights, and charger don't burn out during grid events.

---

7. Residential Safety Enhancements with Transformer Coordination

Feature	Benefit
Neutral grounding at transformer	Ensures stable voltage reference
Breaker coordination	Enables proper fault disconnection
Surge protection devices	Protect homes from transient spikes
Smart monitoring (in some areas)	Allows utility fault detection and analytics

Many modern transformers are equipped with remote monitoring and load sensing features.

---

Summary Table: How Transformers Ensure Home Electrical Safety

Function	Transformer Contribution
Voltage transformation	Steps 11 kV down to 230/400 V
Load matching	Adapts voltage to household current draw
Circuit protection	Supports fuse/breaker configuration
Fault isolation	Prevents high-voltage fault from reaching homes
Grounding configuration	Enables proper neutral and earthing practices
Equipment safety	Maintains voltage stability for sensitive devices

---

How Do Transformers Make Electricity Safe for Home Use?

Electricity is generated at high voltages—often thousands of volts—to travel efficiently across long distances. But this high-voltage power is dangerous and unusable in homes. Direct exposure to such voltage would destroy appliances, cause fires, or even result in fatal shocks. That's where transformers become critical safety devices. They act as the guardians of residential power delivery, ensuring that electricity reaches homes at safe and usable levels.

Transformers make electricity safe for home use by stepping down high-voltage power from the distribution grid (typically 11 kV or higher) to a lower voltage level—usually 230 V for single-phase homes or 400 V for three-phase supply—suitable for household appliances and lighting. They also isolate home circuits from grid faults, support protective grounding, and stabilize voltage to prevent equipment damage.

This article details how transformers safeguard residential electricity, protect people and appliances, and ensure compliance with utility safety standards.

---

1. Why Is Grid Voltage Too High for Home Use?

Voltage Stage	Typical Value	Safe for Homes?
Transmission network	132–765 kV	❌ Extremely dangerous
Distribution grid	11–33 kV	❌ Still too high
Residential supply voltage	230/400 V	✅ Safe and compatible

Electricity is transmitted at high voltage to reduce losses, but must be reduced at the point of use.

---

2. How Do Transformers Step Down Voltage?

Transformer Type	Application	Voltage Conversion
Distribution transformer	Installed near homes or buildings	11/0.4 kV or 33/0.4 kV
Internal building transformer	Used in apartments or campuses	0.4/0.23 kV (phase split)

How It Works:

• The primary winding receives high-voltage power from the grid.
• A magnetic core transfers energy to the secondary winding.
• The turns ratio ensures output voltage is reduced to a usable level.

This enables safe lighting, appliance operation, and charging in homes.

---

3. Voltage Path: From Grid to Your Home

Stage	Voltage (Typical)	Function
Power generation	11–25 kV	Low-voltage output from generator
Step-up for transmission	132–400+ kV	Transmit power efficiently over distance
Substation step-down	132/33 kV or 66/11 kV	Feed regional distribution
Street-level transformer	11 kV → 0.4 kV	Make electricity safe for households
Home circuit panel	230 V (single phase)	Final usable voltage

Each stage uses a transformer to adapt the voltage appropriately.

---

4. How Transformers Protect Homes and People

Safety Feature	Transformer Role
Voltage control	Prevents overvoltage that can damage electronics
Isolation	Protects homes from faults in the high-voltage grid
Neutral grounding	Enables earthing systems to redirect fault currents
Overload protection	Supports correct sizing for breakers and fuses
Stable delivery	Ensures consistent voltage even during load changes

Without a transformer, homes would be exposed to unstable and unsafe power.

---

5. Transformer Types for Residential Power

Mounting Type	Common Location	Use Case
Pole-mounted	Overhead lines	Rural and suburban areas
Pad-mounted	Underground lines	Urban or high-density areas
Indoor substation	Large residential blocks	Apartments, campuses, malls

Regardless of design, all are engineered to deliver safe voltage.

---

6. Residential Load Compatibility

Appliance / System	Voltage Requirement	Transformer Function
Lighting and outlets	230 V	Provides stable, regulated output
HVAC systems	230–400 V	Powers motors safely
EV chargers	230 V or 3-phase 400 V	Ensures compatible and safe supply
Electronics (TV, PC, etc.)	230 V	Prevents overvoltage or undervoltage

Even small voltage fluctuations can shorten equipment lifespan—transformers help prevent this.

---

7. Grounding and Surge Protection

Protective Design	Transformer Role
Neutral-to-ground bond	Maintains voltage reference for home circuits
Surge arresters	Blocks lightning-induced overvoltage
Earth fault isolation	Disconnects faulty lines without endangering homes

Grounding and surge control are often integrated into transformer design.

---

Summary Table: How Transformers Make Electricity Safe for Homes

Function	Contribution to Residential Safety
Step-down voltage	Reduces 11–33 kV to 230–400 V
Electrical isolation	Prevents high-voltage faults from entering homes
Grounding and bonding	Ensures safe dissipation of fault currents
Voltage stability	Protects appliances from fluctuation damage
System coordination	Supports fuse, breaker, and meter design

---

Where Do You See Transformers in Everyday Life?

![Image Placeholder – Insert AI-generated image here]
Prompt for AI-generated image: [Everyday locations of transformers in city and suburban environments] + [Street-side pole transformers, pad-mounted units near buildings, utility substations, and small electronics adapters] + [Urban and residential background with visible transformers and labeled voltage signs] + [Everyday practical tone] + [Daylight with clear perspective and color-coded power lines]

Transformers are everywhere, silently powering your life—from the street corner near your home to the inside of your phone charger. Despite their presence being mostly hidden or overlooked, transformers perform the essential task of adapting voltage levels so that electricity can be used safely and efficiently at every stage. Not knowing where transformers are can lead to underestimating safety risks, ignoring infrastructure maintenance, or misusing electrical devices.

Transformers appear in everyday life at street-level utility poles, in green or gray pad-mounted cabinets near buildings, within public substations, inside large appliances, and even in compact electronic chargers. Their job is to change voltage—stepping it up for transmission or down for safe use—and they are critical to every power delivery stage from generation to final consumption.

This article uncovers the common but often unnoticed places where transformers operate and how they make modern life possible.

---

1. On Utility Poles in Residential Areas

Location	Transformer Type	Voltage Role
Neighborhood streets	Pole-mounted distribution transformer	Steps down from 11 kV to 400/230 V
Rural electric lines	Single-phase transformer	Supplies power to isolated homes

These are the cylindrical or boxy units mounted near the top of wooden poles, often near your house.

---

2. In Green or Gray Boxes Near Buildings (Pad-Mounted)

Location	Transformer Type	Function
Apartment complexes	Pad-mounted unit	Stepped-down power to building circuits
Commercial zones (e.g., malls)	Compartmental transformers	Safe LV delivery to multiple tenants

These are often hidden in metal enclosures labeled “High Voltage – Keep Out”, placed on the ground in urban zones.

---

3. Inside Utility Substations

Substation Type	Transformer Purpose	Voltage Transformation
Transmission substation	Step down from 400/220 kV to 132/66 kV	Regional grid supply
Distribution substation	Step down to 33/11 kV	Feeds pole/pad-mounted transformers

Substations are the hubs of voltage change, and you’ll often see fenced areas with large cooling fins and warning signs.

---

4. In Large Buildings and Industrial Facilities

Building Type	Transformer Use	Location
Hospitals, airports	Dedicated transformer rooms	Ground floor or basement
Manufacturing plants	Motor control transformer banks	On-site substations
High-rise buildings	Service transformers	Electrical riser or utility shaft

These transformers often include protection relays and meters, integrated into the building’s energy control systems.

---

5. In Home Appliances and Electronics

Device	Transformer Role	Voltage Level
Microwave ovens	Step-up for magnetron operation	230 V → 2,000+ V internally
Phone/laptop chargers	Step-down and isolate	230 V → 5–20 V DC
Televisions and audio systems	Regulated transformer for internal circuits	230 V → LV for ICs and logic boards

These are typically encapsulated in plastic, but still perform vital voltage conversion and insulation functions.

---

6. In Transportation and Renewable Systems

Application	Transformer Purpose	Example Use
Electric vehicle charging	Isolation and step-down	EV chargers at malls or parking lots
Solar power systems	Step-up from inverter output to grid	0.4 kV → 33/66/132 kV via transformer
Railway traction systems	Step-down from 25 kV to 750 V	Inside traction substations

Transformers are used to bridge onboard systems with grid-level voltage safely.

---

7. In Emergency Power Systems and Generators

Equipment	Transformer Function	Example Location
Backup diesel generator	Match voltage with building circuits	Hospitals, data centers, schools
Uninterruptible Power Supply (UPS)	Regulates and isolates power	IT rooms, telecom hubs

These transformers ensure critical services never lose power—even during grid outages.

---

Summary Table: Everyday Locations of Transformers

Environment	Transformer Type	Purpose
Residential streets	Pole-mounted	Step down to 230/400 V
Urban neighborhoods	Pad-mounted	Safe localized distribution
Power substations	Power transformers	Bulk voltage conversion
Commercial buildings	Service or dry-type transformers	Internal LV control and safety
Consumer electronics	Miniature isolation transformers	Safe device operation
Renewable and EV systems	Grid-tied and step-up transformers	Export or use of clean energy

---

Conclusion

In simple terms, a transformer changes the voltage of electricity to make it easier to transmit over distances and safer to use. Whether stepping voltage up for efficient travel or down for local use, transformers are the invisible helpers that make modern power systems work. Without them, we couldn’t power cities, industries, or even our homes as we do today.

FAQ

Q1: What does a transformer do in simple terms?
A1: A transformer changes the voltage of electricity. It can either increase the voltage (step-up) or decrease it (step-down), depending on what’s needed. This helps send electricity long distances or make it safe to use in homes and businesses.

Q2: Why do we need to change electricity voltage?
A2: Electricity needs high voltage to travel long distances with less energy loss. But high voltage is too dangerous to use in homes or offices. That’s why transformers lower the voltage before it gets to you.

Q3: Where are transformers used?
A3: Transformers are everywhere in the power system:

Power plants use them to increase voltage

Substations use them to lower voltage

Electronics use small ones to power devices like TVs and laptops

Q4: What are the two main types of transformers?
A4: The main types are:

Step-up transformers: Increase voltage for transmission

Step-down transformers: Decrease voltage for safe use in homes and devices

Q5: Do transformers store or make electricity?
A5: No, transformers don’t make or store electricity. They only change the voltage level to help move electricity safely and efficiently from one place to another.

References

"Transformer Basics Explained Simply" – https://www.transformertech.com/what-does-a-transformer-do – Transformer Tech

"What Is a Transformer? Easy Explanation" – https://www.powermag.com/transformer-simple-definition – Power Magazine

"Understanding Transformers in Simple Terms" – https://www.electrical4u.com/transformer-basic-function – Electrical4U

"A Beginner’s Guide to Transformers" – https://www.researchgate.net/transformer-basic-guide – ResearchGate

"How Transformers Help Move Electricity" – https://www.sciencedirect.com/transformer-simple-explained – ScienceDirect

"Smart Grid 101: Transformers Explained" – https://www.smartgridnews.com/transformer-basics – Smart Grid News

"Energy Central: Simple Explanation of Transformers" – https://www.energycentral.com/c/ee/transformers-for-beginners – Energy Central

"PowerGrid: What Every Consumer Should Know About Transformers" – https://www.powergrid.com/transformer-facts – PowerGrid
