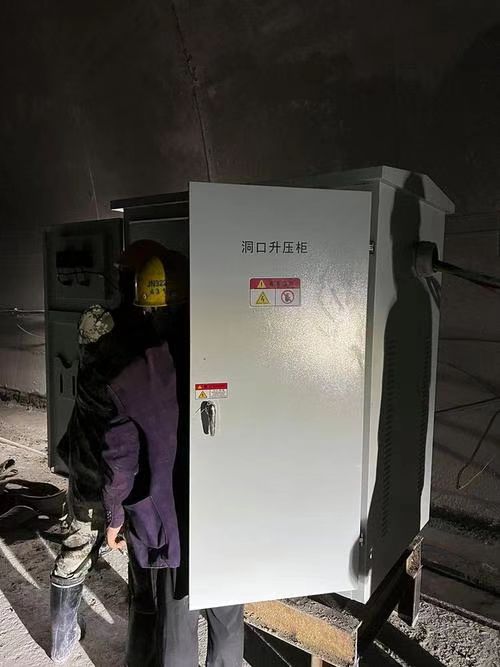

Dry-type transformers are often the preferred choice for subways, tunnels, and other underground infrastructure due to their safety features and suitability for environments where flammable or toxic materials (like oil) would pose significant risks. The challenging conditions of subways and tunnels—such as high humidity, limited ventilation, and the need for high safety standards—require specific design and operational considerations for transformers. Dry-type transformers are ideal in such settings because they are sealed, safe, and low-maintenance, but they still need to meet a number of special requirements to operate efficiently and safely in these environments.
This article explores the special requirements of dry-type transformers when used in subways and tunnels, highlighting key factors such as fire safety, temperature management, and reliability under harsh conditions.
Why Are Dry-Type Transformers Preferred for Subways and Tunnels?
When it comes to powering underground infrastructure like subways and tunnels, safety and efficiency are paramount. Dry-type transformers are increasingly becoming the preferred choice in these settings due to their distinct advantages in terms of safety, reliability, and environmental considerations. In this article, we will explore the reasons why dry-type transformers are favored for subway and tunnel applications and how they meet the specific challenges of these demanding environments.
1. The Unique Challenges of Subways and Tunnels
Subways and tunnels pose unique challenges that require careful consideration of the electrical systems used within them. Some of these challenges include:
- Limited Space: Underground spaces are typically tight, and any equipment used must be compact and easy to install.
- Safety Concerns: In enclosed spaces, the risk of fires, explosions, and hazardous gas emissions must be minimized. Any electrical failure could be catastrophic.
- Cooling and Ventilation: With limited airflow and the potential for high ambient temperatures, cooling of electrical equipment becomes critical.
- Maintenance and Accessibility: Maintenance access is often challenging, making it important to use equipment that is low-maintenance and resilient.
2. What Makes Dry-Type Transformers Ideal for Subways and Tunnels?
Dry-type transformers are designed to operate without the need for oil, which sets them apart from traditional oil-filled transformers. This feature offers several advantages, especially in environments like subways and tunnels where safety and environmental factors are top priorities.
2.1 Safety: No Risk of Oil Leaks or Fires
The most significant advantage of dry-type transformers is their safety. Unlike oil-filled transformers, which use flammable oil for insulation and cooling, dry-type transformers rely on solid insulation materials like epoxy resin or cast resin. This eliminates the risk of oil leaks, fire hazards, and explosions, making them an ideal solution for enclosed spaces such as tunnels and subways.
In an environment where high temperatures, flammable gases, and restricted evacuation routes exist, the absence of flammable oils reduces the risks associated with potential accidents. In the event of a malfunction or failure, dry-type transformers cannot catch fire due to the lack of combustible material, significantly enhancing safety.
2.2 Compact and Space-Saving Design
Subway and tunnel installations often operate in constrained spaces where every inch of real estate matters. Dry-type transformers are more compact compared to oil-filled transformers, allowing for easier integration into tight locations. Their robust, space-efficient design means that they can be easily placed in areas that may be difficult for larger equipment to access.
Additionally, dry-type transformers do not require external cooling systems such as oil pumps, radiators, or tanks, making them even more compact and easier to install and maintain in space-constrained environments.
2.3 Minimal Maintenance Requirements
Dry-type transformers are designed for durability and require minimal maintenance over their lifespan. In subway and tunnel environments, where maintenance access is limited and can be expensive, dry-type transformers provide a more cost-effective and reliable solution.
Key factors that reduce maintenance needs include:
- No Oil Maintenance: With no oil to maintain or change, there's no need for regular oil testing or replacement.
- Reduced Risk of Contamination: Since dry-type transformers do not use oil, there is no risk of oil contamination, which can degrade performance in oil-filled transformers.
- Long Lifespan: Dry-type transformers have a longer operational life, reducing the frequency and cost of replacement and repair.
2.4 Environmental Benefits
Environmental considerations are increasingly important, particularly in sensitive areas like subways and tunnels, where safety, pollution control, and sustainability are top priorities. Dry-type transformers are considered more environmentally friendly because they do not use hazardous oils that could leak or contaminate the surrounding environment. This is especially important in urban areas where environmental regulations are strict, and the risk of contamination is a significant concern.
Additionally, dry-type transformers are generally 100% recyclable at the end of their life cycle, unlike oil-filled transformers, which may pose disposal challenges due to their oil contents.
2.5 Enhanced Cooling Efficiency
Cooling is another critical aspect of transformer operation in confined spaces. Dry-type transformers are often equipped with natural cooling systems, such as air cooling or forced ventilation, which allows them to operate efficiently in a variety of temperature conditions. This is especially beneficial in underground environments where ventilation systems may not be as robust as in open-air settings.
The absence of oil means that the cooling system is simplified, reducing the need for external pumps, pipes, and tanks, which can be difficult to maintain in a tunnel environment. Moreover, the solid insulation materials used in dry-type transformers have excellent thermal conductivity, ensuring that the transformer operates effectively even in relatively high-temperature conditions.
2.6 Improved Reliability in Harsh Environments
Subways and tunnels often experience fluctuating power demands and exposure to environmental factors like humidity and dust. Dry-type transformers are highly reliable and can function in a wide range of environmental conditions. Their sealed, dust-proof design makes them resistant to moisture, dirt, and other contaminants that may interfere with the functioning of oil-filled transformers.
Additionally, dry-type transformers can withstand more frequent load cycles and are less prone to damage from overloading or short-circuiting. This robustness makes them particularly well-suited for underground environments, where electrical systems are frequently under high stress.
3. Key Benefits of Dry-Type Transformers for Subways and Tunnels
| Benefit | Explanation |
|---|---|
| Safety | No risk of oil leaks, fires, or explosions due to the lack of flammable liquids. |
| Space Efficiency | Compact design with no need for external cooling or oil containment systems. |
| Minimal Maintenance | Reduced need for maintenance due to the absence of oil and simpler cooling systems. |
| Environmental Impact | No hazardous oils, fully recyclable, and reduces environmental contamination risks. |
| Cooling Efficiency | Enhanced natural cooling systems, reducing the need for complex external cooling setups. |
| Reliability | Performs well in harsh environmental conditions like humidity and dust. |
What Are the Fire Safety Requirements for Dry-Type Transformers in Subways and Tunnels?
Dry-type transformers have become the preferred solution for powering underground infrastructure like subways and tunnels due to their inherent safety features, particularly when it comes to fire hazards. However, even without the use of flammable oils, ensuring fire safety in these environments is still a top priority. Fire safety requirements for dry-type transformers in such settings are governed by a combination of local regulations, industry standards, and best practices. In this article, we will explore the essential fire safety measures and precautions that need to be in place for dry-type transformers operating in subway and tunnel systems.
1. The Risk of Fire in Subways and Tunnels
Subways and tunnels present a unique set of challenges when it comes to fire safety:
- Limited Space: The confined space limits the ability to disperse heat, which can increase the likelihood of a fire if not properly managed.
- High Traffic: These areas typically have high foot traffic and frequent electrical loads, creating more potential for overheating, short-circuits, and faults.
- Accessibility: In the event of a fire, the lack of easy access for emergency personnel and the limited evacuation routes can make firefighting and rescue operations more difficult.
- Ventilation Challenges: Ventilation is often limited, making it harder for heat generated by electrical equipment to dissipate, increasing the risk of heat buildup and fires.
2. Fire Safety Requirements for Dry-Type Transformers
Dry-type transformers, due to their solid insulation and absence of oil, are already safer than oil-filled transformers in terms of fire risk. However, they still require proper fire safety measures to ensure safe operation in these high-risk environments. These requirements generally include:
2.1 Fire-Resistant Insulation and Materials
One of the most important aspects of fire safety in dry-type transformers is the use of fire-resistant insulation materials. The insulation around the windings, core, and other components must be able to withstand high temperatures without catching fire or releasing toxic fumes. Common fire-resistant materials used in dry-type transformers include:
- Epoxy Resin: This is a widely used insulation material in dry-type transformers. It is non-flammable and offers excellent resistance to high temperatures and electrical stresses.

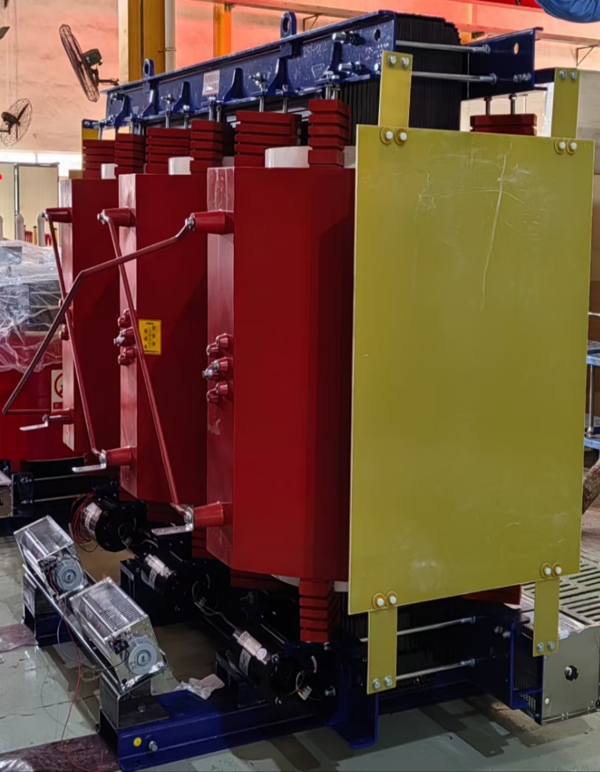

- Cast Resin: Cast resin transformers are particularly popular for their fire-retardant properties and low smoke emissions. This type of insulation is designed to contain the fire within the transformer casing if a fault occurs, preventing it from spreading.
The materials used in dry-type transformers must comply with international fire safety standards such as IEC 60076-11, which specifically addresses fire protection for transformers.
2.2 Fire Suppression and Detection Systems
Even with fire-resistant materials, it’s crucial to have fire detection and suppression systems in place to manage potential fire hazards in case of a fault. These systems are designed to quickly identify abnormal conditions and contain fires before they can spread. Key components include:
- Smoke Detectors: Installed around transformers, smoke detectors can immediately detect the presence of smoke or heat, triggering alarms and automatic fire suppression systems.
- Heat Sensors: Temperature sensors installed inside the transformer can detect overheating, a common cause of fires in electrical systems. These sensors can be programmed to trigger emergency shutdowns if temperatures exceed safe levels.
- Automatic Fire Extinguishers: Systems that can automatically deploy fire extinguishing agents (such as CO2 or foam) in the event of a fire, reducing the risk of a fire spreading and protecting nearby infrastructure and personnel.
2.3 Ventilation and Cooling Systems
Effective ventilation and cooling are vital to prevent overheating, which could lead to a fire in any electrical equipment, including dry-type transformers. Even without oil, dry-type transformers can still generate significant heat under heavy loads, and proper cooling mechanisms are required to maintain safe operating temperatures. Requirements include:
- Natural Ventilation: In many cases, dry-type transformers are designed with natural cooling systems, which rely on airflow within the surrounding space. However, in confined spaces such as tunnels and subways, additional measures might be necessary.
- Forced Ventilation: For more controlled cooling, forced ventilation systems may be installed to actively circulate air around the transformer, preventing heat buildup and reducing the risk of overheating.
- Heat Sinks and Radiators: In some cases, heat sinks or specialized radiators can be installed to improve the cooling of dry-type transformers, ensuring they maintain an optimal temperature even in challenging environments.
2.4 Fire Barriers and Enclosures
In subway and tunnel applications, fire barriers and enclosures are often used to further reduce the risk of fire spreading. Dry-type transformers are typically housed in fire-rated enclosures that are designed to withstand high temperatures for a period of time. These enclosures can contain the fire and prevent it from spreading to surrounding areas, such as ventilation shafts or electrical panels. Additionally, fire barriers made from materials like concrete or steel can be used to divide areas of the tunnel or subway to provide additional fire separation.
2.5 Regular Inspection and Testing
Ensuring the ongoing fire safety of dry-type transformers in subways and tunnels requires regular inspection and maintenance. Transformer components such as insulation, electrical connections, and cooling systems should be thoroughly tested to ensure that they are functioning properly. Key practices include:
- Routine Inspections: Regular checks for wear and tear, corrosion, and overheating should be carried out.
- Thermographic Inspections: Using infrared cameras to detect hot spots in the transformer, which could indicate faults that may lead to overheating or fire risks.
- Performance Tests: Testing of fire detection, suppression, and cooling systems to ensure that they function properly in the event of an emergency.
2.6 Compliance with Local and International Standards
Dry-type transformers must meet strict fire safety standards set by national and international organizations. These standards define the minimum fire resistance requirements, materials, and testing protocols for transformers. Compliance with standards such as IEC 60076-11, NFPA 70 (National Electrical Code), and UL 1561 is essential for ensuring the safe operation of transformers in underground and other high-risk environments.
3. Fire Safety Measures Checklist for Dry-Type Transformers
| Fire Safety Measure | Description |
|---|---|
| Fire-Resistant Insulation | Use of non-flammable materials like epoxy resin and cast resin for insulation. |
| Smoke and Heat Detection | Smoke detectors and heat sensors for early detection of fires or overheating. |
| Automatic Fire Suppression | Fire extinguishing systems (e.g., CO2, foam) for automatic containment. |
| Ventilation and Cooling Systems | Use of natural or forced ventilation to prevent overheating and fires. |
| Fire Barriers and Enclosures | Fire-rated enclosures to contain fires and prevent their spread. |
| Regular Inspections | Routine checks for wear, overheating, and testing of safety systems. |
| Compliance with Standards | Adherence to local and international fire safety standards. |
How Are Ventilation and Cooling Managed in Dry-Type Transformers in Underground Environments?
Dry-type transformers are widely used in underground environments, such as subways, tunnels, and basements, due to their safety features and reduced fire risk. These transformers do not use oil for cooling, which makes them particularly suitable for confined spaces where fire hazards are a significant concern. However, while they offer increased safety, they still generate substantial heat during operation, and effective ventilation and cooling are essential to ensure their reliable performance and long lifespan. Managing ventilation and cooling in underground environments comes with unique challenges due to the limited space, lack of natural airflow, and other environmental factors.
In this article, we will explore the various methods of managing ventilation and cooling in dry-type transformers in underground environments, focusing on their efficiency, reliability, and maintenance.
1. The Importance of Ventilation and Cooling in Dry-Type Transformers
Before diving into the specifics, it's important to understand why ventilation and cooling are critical for the operation of dry-type transformers:
- Heat Generation: Like all electrical equipment, dry-type transformers generate heat during operation due to electrical losses in the core and windings. If this heat is not dissipated, it can cause overheating, which may lead to transformer damage, reduced efficiency, or even failure.
- Thermal Stress: Prolonged overheating can cause thermal stress on the insulation and other components of the transformer, leading to premature degradation and reducing its lifespan.
- Fire Risk: Although dry-type transformers are inherently safer than oil-filled transformers, excessive heat can still pose a fire risk if flammable materials are present, such as dust, debris, or other combustible materials within the transformer or its enclosure.
Proper cooling systems ensure that the transformer operates within a safe temperature range, enhancing both its efficiency and longevity.
2. Methods of Cooling and Ventilation for Dry-Type Transformers
In underground environments, managing ventilation and cooling is more challenging due to the limited airflow and space constraints. The following are the most common methods of cooling and ventilation for dry-type transformers in such environments:
2.1 Natural Cooling (Convection)
Natural cooling, or convection, is the most straightforward cooling method used for dry-type transformers in non-critical applications. This method relies on the natural circulation of air to carry away the heat generated by the transformer. Here's how it works:
- Heat Dissipation: As the transformer operates, the air around it absorbs the heat and rises due to thermal buoyancy. This hot air is replaced by cooler air from below or around the transformer, creating a continuous cycle of heat dissipation.
- Air Circulation: In an underground environment, the transformer housing or enclosure is designed with ventilation openings to allow airflow. These openings allow cooler air to flow into the enclosure and expel warm air, reducing the temperature of the transformer.
However, natural cooling can be insufficient in confined spaces where airflow is restricted. For this reason, it is often supplemented by other cooling mechanisms.
2.2 Forced Air Cooling
For dry-type transformers operating in underground environments with limited natural ventilation, forced air cooling is often employed. This method uses fans or blowers to actively circulate air around the transformer. The advantages include:
- Increased Airflow: By using fans or blowers, forced air cooling ensures continuous airflow, helping to carry away heat more efficiently than natural convection alone.
- Adjustable Cooling: The speed of the fans can be adjusted based on the transformer's load and temperature, providing customized cooling to match the operating conditions.
- Better Performance: Forced air cooling is particularly useful in areas where the transformer is operating in enclosed rooms or areas with poor ventilation.
These systems are typically energy-efficient and can be integrated with temperature sensors to automatically activate the fans when the transformer reaches a set temperature threshold.

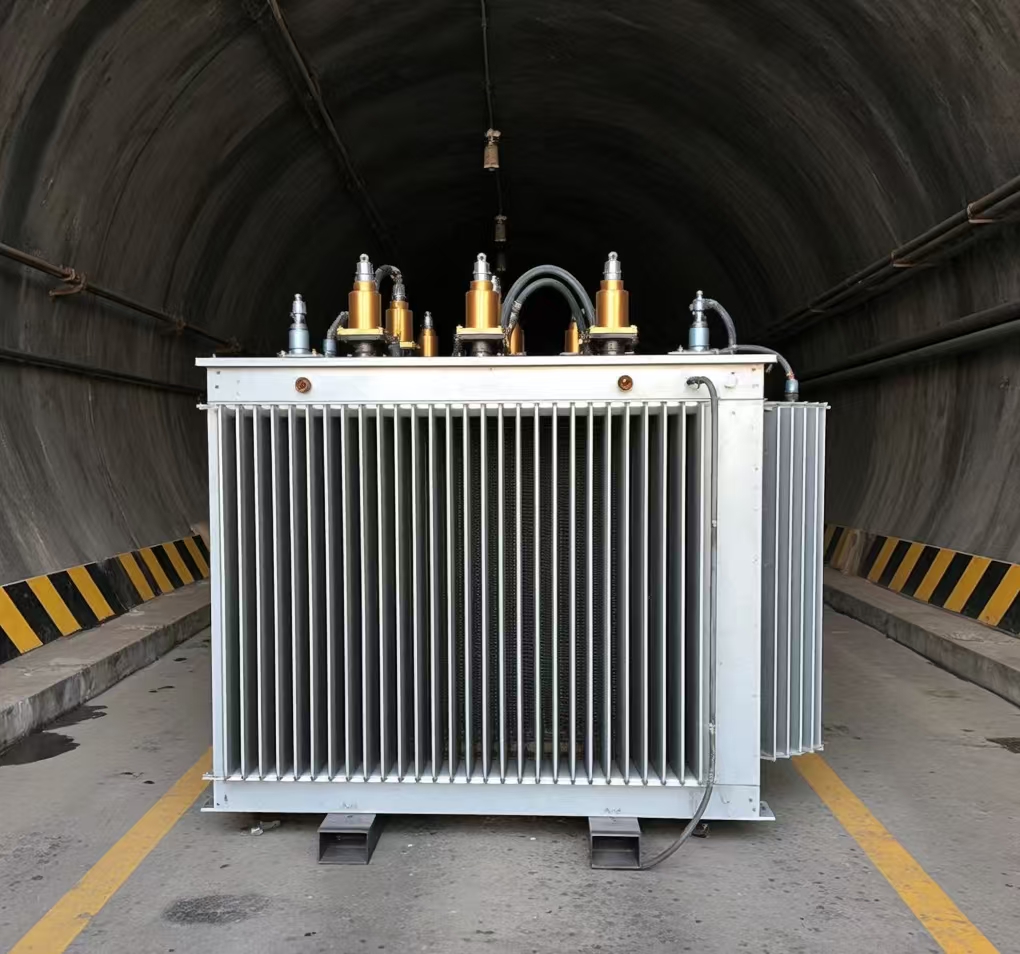

2.3 Heat Sinks and Radiators
In addition to fans, heat sinks and radiators can be installed in the transformer enclosure to improve heat dissipation. These devices help increase the surface area available for heat exchange, allowing heat to dissipate more effectively into the surrounding air.
- Heat Sinks: These are typically metallic fins or plates that attach to the transformer and enhance thermal conductivity. By providing additional surface area, they help accelerate the heat transfer from the transformer to the air.
- Radiators: Radiators are larger components that also increase the surface area available for heat dissipation. They may use pipes or tubes through which coolant fluid circulates to absorb the heat from the transformer.
In underground environments, where natural airflow is limited, these additional cooling devices are particularly useful for maintaining safe operating temperatures.
2.4 Liquid Cooling (In Specialized Cases)
In certain high-power dry-type transformers, especially those used in critical infrastructure or large underground systems, liquid cooling can be employed. Although dry-type transformers typically do not use oil, water-based coolants or non-flammable liquid coolants can circulate through a closed-loop system to remove heat from the transformer.
- Closed-Loop Systems: A closed-loop cooling system can circulate coolant through tubes or pipes attached to the transformer. This system transfers the heat from the transformer to the coolant, which is then dissipated through a heat exchanger or radiator.
- Advantages: Liquid cooling is much more efficient than air cooling and can be used for high-load applications where forced air and natural convection alone are insufficient.
However, liquid cooling systems are generally more complex and costly to install and maintain, so they are typically used in large-scale or highly critical transformer applications.
2.5 Airflow Optimization and Enclosure Design
Effective ventilation is also heavily influenced by the design of the transformer enclosure. In underground environments, the transformer may be housed in an enclosed room or sealed chamber, and the ventilation strategy needs to account for this confined space. Key factors include:
- Air Ducts and Vents: Properly designed ductwork and ventilation vents direct airflow through the transformer housing. Inlet ducts bring in cool air, while outlet vents expel the heated air.
- Pressure and Airflow Management: The enclosure may be designed to maintain a slightly lower air pressure than the surrounding environment, ensuring that the warmer air flows out more easily.
- Sealed Compartments: If necessary, the transformer may be placed inside sealed compartments with their own ventilation system to contain the heat and manage airflow more effectively.
2.6 Remote Monitoring of Temperature and Cooling Systems
In modern underground systems, many dry-type transformers are equipped with remote monitoring systems to keep track of their cooling performance and temperatures in real-time. These systems can:
- Monitor Transformer Temperature: Sensors placed on the transformer windings, core, and cooling system can provide continuous temperature readings.
- Control Cooling Systems: Integrated with the cooling mechanisms (fans, heat exchangers), the monitoring system can adjust cooling settings based on real-time temperature data, ensuring the transformer remains within safe operational limits.
- Alert Operators: If a cooling system fails or the transformer reaches a critical temperature, alarm notifications can be sent to operators, allowing them to take preventive action before a failure occurs.
What Role Does Humidity Control Play in the Operation of Dry-Type Transformers in Tunnels?
In underground environments such as tunnels, humidity control is a critical factor in the proper operation and long-term reliability of dry-type transformers. These transformers, unlike their oil-filled counterparts, use air or other non-flammable materials for insulation and cooling, making them safer and more suitable for confined spaces. However, they are still susceptible to the damaging effects of moisture and humidity—factors that can lead to transformer failures, reduced efficiency, and even safety hazards.
In this article, we will explore how humidity impacts dry-type transformers in tunnels, the mechanisms by which humidity control contributes to transformer performance, and the strategies used to manage moisture in such environments.
1. The Impact of Humidity on Dry-Type Transformers
Humidity refers to the presence of water vapor in the air, which can have significant effects on the performance of dry-type transformers, especially in underground or tunnel environments where natural airflow and moisture regulation are limited. Some of the key issues related to humidity in dry-type transformers include:
1.1 Insulation Degradation
Dry-type transformers rely on solid insulation materials, such as epoxy resins, polyester, and paper-based materials. These materials are designed to withstand the electrical and thermal stresses generated during transformer operation. However, high humidity levels can:
- Weaken insulation: Excess moisture can reduce the effectiveness of insulation by making it more conductive, lowering its dielectric strength and increasing the risk of electrical breakdowns.
- Accelerate deterioration: The presence of water in the insulation can cause chemical degradation, leading to a breakdown of the materials and a reduced lifespan of the transformer.
The insulation's ability to protect the transformer's windings is vital to maintaining reliability and operational safety.
1.2 Rust and Corrosion
While dry-type transformers are not filled with oil (which makes them immune to oil-related degradation), many of their components still consist of metallic parts, including bushings, terminal blocks, and frames. Humidity can promote:
- Corrosion of metal components: Moisture in the air can lead to the formation of rust, weakening the structural integrity of the transformer and potentially causing short circuits or mechanical failure.
- Electromagnetic interference: Excess moisture can lead to the accumulation of dust and contaminants on metal parts, which can interfere with the electrical components and cause performance issues.
1.3 Decreased Efficiency
When moisture accumulates within or around the transformer, it can impact the efficiency of the system by:
- Increasing electrical losses: Moisture in the insulation can lead to increased conductivity, resulting in higher losses and reduced efficiency.
- Reducing thermal dissipation: Moisture-laden air tends to have a higher thermal conductivity, which may affect the transformer's ability to dissipate heat efficiently. This can result in overheating and potentially lead to transformer failure.
1.4 Increased Risk of Short Circuits
One of the most serious consequences of high humidity in dry-type transformers is the increased risk of short circuits. When moisture accumulates on insulation or electrical components, it can create pathways for electrical leakage, potentially leading to short circuits that damage the transformer and pose safety hazards.
2. Humidity Control Techniques for Dry-Type Transformers in Tunnels
Given the significant risks associated with humidity in underground environments, it's essential to implement effective humidity control strategies to ensure the safe and efficient operation of dry-type transformers. The following methods are commonly used:
2.1 Environmental Control Systems
Ventilation and dehumidification systems are key elements in controlling humidity levels in transformer enclosures, especially in confined tunnel environments where natural airflow is often insufficient. These systems include:
- Mechanical ventilation: Fans or blowers can be used to circulate air within the transformer enclosure. Properly designed air ducts ensure that moisture-laden air is replaced with dryer air, reducing the overall humidity level.
- Dehumidifiers: In areas with particularly high moisture levels, industrial dehumidifiers can be installed to actively remove moisture from the air. These units work by drawing in humid air, condensing the moisture, and expelling drier air back into the enclosure.
By maintaining a dry environment, these systems help protect the transformer's insulation and reduce the risks of corrosion and short circuits.
2.2 Humidity Sensors and Monitoring Systems
Real-time monitoring of humidity levels is essential for ensuring that the transformer operates within safe limits. Humidity sensors placed inside or around the transformer enclosure can provide continuous readings of the moisture levels, triggering automated responses when necessary.
- Alarm Systems: If humidity levels exceed a set threshold, the monitoring system can activate alarms, alerting operators to potential issues.
- Automated Dehumidification: In advanced systems, the humidity sensors can be integrated with automated control systems that adjust ventilation or activate dehumidifiers to lower humidity levels before they become problematic.
These systems are especially valuable in tunnel environments where moisture levels can fluctuate due to varying temperature conditions, water ingress, or poor ventilation.
2.3 Sealing Transformer Enclosures
In some cases, it may be beneficial to seal the transformer housing to prevent external moisture from entering. Special gaskets and seals can be used around doors and openings to minimize water ingress, especially in tunnels prone to water seepage or flooding.
Sealing the enclosure helps to isolate the transformer from external sources of moisture while allowing internal ventilation systems to maintain a stable environment.
2.4 Insulation Treatment and Upgrades
Some dry-type transformers are equipped with special moisture-resistant insulation to improve their tolerance to humidity. These materials are designed to absorb less moisture, making them more resilient in high-humidity environments.
In some cases, insulation systems can also be treated with moisture-resistant coatings or impregnants to further enhance their performance.
2.5 Air Circulation and Heat Management
Efficient heat dissipation plays a significant role in humidity control. When transformers generate heat, the surrounding air is often heated, causing the moisture to evaporate and remain suspended in the air. Proper air circulation systems help:
- Distribute the heat more evenly to avoid the concentration of moisture in one area.
- Promote airflow, reducing the chances of condensation forming on transformer components.
Efficient heat management is thus closely tied to humidity control, as proper cooling and air circulation can reduce the potential for condensation, a common issue in damp environments.
What Are the Electrical and Protection Standards for Dry-Type Transformers in Underground Installations?
In underground installations, such as tunnels, subways, or mines, dry-type transformers are crucial for providing reliable power while ensuring safety in confined, often hazardous, environments. These transformers are preferred for such applications because they do not use oil, reducing the risk of fires and making them more suitable for spaces with limited ventilation. However, to guarantee their safe operation and longevity, it is essential that dry-type transformers meet rigorous electrical and protection standards tailored to underground environments. This article outlines the key standards and safety protocols that govern the design, operation, and protection of dry-type transformers in these challenging conditions.
1. Electrical Standards for Dry-Type Transformers in Underground Installations
Electrical standards for dry-type transformers in underground installations are primarily concerned with ensuring safety, efficiency, and reliability under unique environmental conditions. These standards cover various aspects of transformer design, installation, and operation.
1.1 Voltage and Insulation Requirements
Dry-type transformers in underground environments must be designed to withstand higher levels of stress compared to transformers in above-ground installations. This includes higher demands for voltage insulation and dielectric strength to ensure safe operation under normal and fault conditions.
- IEC 60076 (International Electrotechnical Commission standard for power transformers) sets guidelines for the electrical performance of transformers, including insulation levels, short-circuit withstand strength, and temperature rise limits.
- ANSI C57.12.01 (American National Standards Institute standard) also provides specifications for voltage ratings, dielectric strength, and testing methods for transformers used in critical installations, such as underground spaces.
These standards ensure that the transformer is sufficiently insulated to withstand voltage surges, short circuits, and other electrical faults, thereby protecting both the transformer and the surrounding infrastructure.
1.2 Fire Safety and Electrical Protection
Given the confined and often challenging conditions of underground environments, fire safety and electrical protection are paramount. Dry-type transformers must be equipped with appropriate fire-resisting features, as they do not use oil for cooling, which can be flammable.
- Fire Safety Standards: Dry-type transformers should comply with fire resistance classifications, often outlined in UL 1446 (Standard for Safety of Insulation Systems) and IEC 60076-11 (Fire safety in dry-type transformers). These regulations specify the flame retardant properties of materials used in transformer windings, insulation, and enclosures.
- Overcurrent Protection: Transformers in underground installations must be equipped with overcurrent protection devices (OCPDs) like fuses or circuit breakers to protect the transformer from damage caused by excessive current. According to IEC 60947-2 and ANSI C37.2, transformers should have a properly rated OCPD to disconnect the transformer from the grid in the event of a fault.
By meeting these standards, dry-type transformers can minimize the risk of fire outbreaks and electrical failures in enclosed spaces.
1.3 Grounding and Fault Protection
Proper grounding and fault protection are critical for the safe operation of dry-type transformers in underground installations, where quick identification and isolation of faults are necessary to protect equipment and personnel.
- IEC 60364 outlines the electrical installations for low-voltage systems, specifying appropriate grounding systems to reduce the risk of electric shock or fires caused by electrical faults.
- Ground Fault Protection: According to IEEE C57.12.01, dry-type transformers must be equipped with ground fault protection to detect and interrupt the flow of current in case of a fault in the transformer windings. This is particularly important in underground environments where fault detection is challenging due to the limited space and accessibility.
These protection measures ensure the safety of both the equipment and personnel working in close proximity to the transformers in underground environments.
1.4 Voltage Regulation and Load Control
Voltage regulation is another critical electrical standard for dry-type transformers, ensuring that the transformer maintains a stable voltage output despite fluctuations in the load or input voltage.
- IEC 60076-1 specifies the requirements for voltage regulation in transformers, including the use of tap changers to adjust voltage levels.
- Automatic Load Management: In complex underground systems, such as those found in subways or mining facilities, transformers may need to be equipped with automatic load management systems to regulate power distribution efficiently. These systems can adjust the transformer output based on changing load conditions, ensuring that electrical equipment remains within safe operational parameters.
Voltage regulation helps to optimize transformer performance and ensures that electrical equipment in underground installations operates without damage due to voltage surges or drops.
2. Protection Standards for Dry-Type Transformers in Underground Installations
In addition to electrical performance standards, dry-type transformers in underground installations must comply with a variety of protection standards that focus on safeguarding both the transformer and the surrounding environment from faults, damage, and hazards.
2.1 Overload Protection
Dry-type transformers in underground environments are particularly vulnerable to overload conditions due to the often unpredictable load patterns in such areas. Proper overload protection ensures that the transformer does not operate beyond its rated capacity, preventing damage and downtime.
- Overload Current Protection: According to IEC 60289, dry-type transformers must be equipped with protection mechanisms, such as fuses, circuit breakers, or protective relays, to disconnect the transformer in case of excessive load or overload conditions.
- Thermal Protection: Thermal protection is often incorporated into the transformer design to monitor the temperature of the transformer windings. When the temperature rises beyond a safe threshold, the protection system can automatically disconnect the transformer to prevent overheating and subsequent damage.
2.2 Short-Circuit Protection
Short-circuits are one of the most dangerous electrical faults that can occur in dry-type transformers. Given the confined nature of underground environments, it is critical to ensure that transformers are equipped with short-circuit protection to prevent catastrophic failures.
- Short-Circuit Withstand Capability: Dry-type transformers must be designed to withstand short-circuit forces without failing. This includes compliance with IEC 60076-5, which outlines the short-circuit testing requirements for transformers, ensuring that the transformer can handle the mechanical stresses caused by short circuits.
- Arc Flash Protection: Arc flash incidents can occur in high-voltage transformers when electrical faults cause the air to ionize and create a violent discharge. Arc flash protection mechanisms, such as safety enclosures and electrical isolation, are essential in underground installations where personnel may be working in close proximity.
2.3 Protection Against Environmental Hazards
In underground installations, transformers are exposed to additional environmental risks, such as water ingress, dust, vibration, and extreme temperatures. As such, protection standards must also account for these factors to ensure the transformer continues to function reliably.
- Ingress Protection (IP Rating): Dry-type transformers must be housed in enclosures with an appropriate IP rating to protect against dust and water ingress. In accordance with IEC 60529, transformers used in underground environments are often required to have an IP54 or higher rating to prevent contaminants from damaging the internal components.
- Vibration Resistance: In mining operations or areas with high levels of physical vibration, dry-type transformers must be designed to withstand mechanical stresses without compromising their electrical integrity. IEC 60068 provides standards for vibration resistance in electrical equipment, including transformers.
These protection measures ensure the long-term reliability and safety of dry-type transformers in underground installations.
How Does Reliability and Durability Factor into the Design of Dry-Type Transformers for Subways?
When designing dry-type transformers for subway systems, reliability and durability are paramount. These transformers must operate efficiently in a challenging, often unpredictable environment, providing stable power to the infrastructure while withstanding the harsh conditions typical of subway stations and tunnels. Factors such as limited space, constant vibration, temperature fluctuations, and exposure to dust, moisture, and other environmental stresses require special attention in transformer design.
This article explores the key elements of reliability and durability that influence the design of dry-type transformers for subway applications, ensuring they function safely and efficiently under the most demanding conditions.
1. The Role of Reliability in Subway Transformer Design
Reliability is critical for dry-type transformers in subways, as they are central to the uninterrupted operation of power systems that feed subway trains, lighting, ventilation, and other essential services. Transformer failure in such an environment can have significant consequences, including service disruptions, safety hazards, and costly repairs. Therefore, ensuring maximum reliability is a primary design goal.
1.1 Continuous Power Supply
A dry-type transformer used in a subway must provide consistent and continuous power. Transformers in these settings often need to handle high peak loads due to sudden power demand fluctuations, such as when trains accelerate or decelerate. The transformer’s ability to remain reliable in such conditions depends on its design to prevent overheating, voltage instability, and mechanical wear.
For this reason, dry-type transformers are often designed with features like:
- High thermal stability: Transformer windings and insulation materials are selected to withstand high temperatures and thermal stresses without degradation, ensuring reliable performance over time.
- Efficient heat dissipation: Even though dry-type transformers use air for cooling, the design must maximize heat dissipation capabilities through ventilation and cooling fin systems to ensure the transformer remains operational under load conditions without overheating.
Reliability in this context is also linked to the ability to self-diagnose issues before they lead to failure, which is why advanced monitoring systems are increasingly being integrated into subway transformers.
1.2 Low Maintenance Requirements
Subway transformers are often installed in hard-to-reach locations, such as tunnels or confined spaces. Therefore, low maintenance and minimal downtime are critical for maintaining subway operations.
Designing dry-type transformers with high reliability includes:
- Longer service intervals: The use of high-quality insulation materials, corrosion-resistant coatings, and robust mechanical components minimizes the need for frequent maintenance checks and reduces the frequency of repairs.
- Enhanced lifespan: Reliability-driven design focuses on extending the transformer’s service life, often exceeding 30–40 years, by selecting durable materials and optimizing protection systems.
Regular, unscheduled maintenance can be disruptive, so minimizing this need through reliable, self-sustaining designs is a priority.
2. The Role of Durability in Subway Transformer Design
Durability is equally important, as subway transformers are subject to extreme conditions. They need to endure mechanical vibrations, thermal cycling, moisture, and possible contamination without failure. Durability ensures that the transformer remains operational even when exposed to harsh physical and environmental stressors, all of which are prevalent in a subway setting.
2.1 Resistance to Mechanical Stress
Subway transformers are exposed to constant vibration from passing trains, along with thermal and electrical stresses. If not properly designed, vibrations can lead to loose connections, electrical arcing, and eventual transformer failure. Therefore, transformers for subway applications need to be built with vibration-resistant components.
- Reinforced enclosures: Dry-type transformers used in subways are often housed in vibration-resistant enclosures made of sturdy, corrosion-resistant materials such as steel or aluminum alloys. These materials help prevent the transformer from deteriorating under mechanical forces.
- Anti-vibration mounts: To further mitigate the impact of vibrations, transformers may be mounted on anti-vibration pads or in shock-resistant enclosures. This ensures the internal components remain intact and function optimally, even in high-vibration environments.
The design should also consider thermal expansion due to fluctuations in temperature, ensuring that materials do not expand or contract in a way that would compromise the transformer’s structure.
2.2 Environmental Resistance
In subway tunnels, transformers are exposed to various environmental stressors such as moisture, dust, temperature extremes, and air pollutants. These conditions could lead to corrosion, insulation degradation, or the accumulation of dirt and debris that affect transformer performance.
To address these challenges, the following durability features are essential in dry-type transformer design:
- Corrosion-resistant materials: Key components like the transformer’s core, windings, and enclosures are often made from corrosion-resistant alloys or treated with special coatings to prevent the effects of moisture and air pollution common in underground environments.
- Dust and moisture-proof design: Dry-type transformers are designed with sealed enclosures that prevent the ingress of dust and moisture, often achieving IP54 or higher protection ratings. This is crucial to prevent contamination of electrical parts and degradation of the insulation.
- Thermal and electrical stability: Dry-type transformers for subway systems need to operate in a wide range of temperatures, from cold winter conditions to high heat generated by electrical loads. High-temperature-resistant insulation materials and air-cooling systems are incorporated to ensure consistent operation, regardless of ambient temperature fluctuations.
Durability also extends to the transformer’s ability to withstand electrical faults and other internal stresses without causing catastrophic failure. Features like fault isolation systems, overload protection, and temperature sensors enhance the durability of the transformer in adverse conditions.
2.3 Low Environmental Impact
Transformers in subway systems must be designed with minimal environmental impact. Dry-type transformers are naturally more environmentally friendly than oil-filled transformers, as they do not require flammable liquid coolant and are easier to recycle at the end of their life cycle. However, additional durability factors contribute to environmental safety, such as:
- Eco-friendly materials: The use of non-toxic, recyclable materials in the construction of dry-type transformers contributes to minimizing the environmental footprint of subway systems.
- Minimal maintenance waste: As dry-type transformers require less frequent maintenance, they generate less waste in the form of insulation debris, oils, or coolants that would otherwise require disposal or treatment.
These eco-friendly characteristics are crucial for subway operators seeking to align with sustainability goals.
3. How Durability and Reliability Work Together in Subway Transformers
In subway systems, transformers must strike a balance between reliability and durability to ensure uninterrupted power delivery while minimizing long-term maintenance needs. The integration of both these qualities allows for:
- Long-term operational efficiency: A durable, reliable transformer will function effectively throughout its lifecycle, ensuring that subway power systems run without unexpected interruptions, even in demanding conditions.
- Reduced operational costs: Durability in materials and design leads to fewer repairs and replacements, reducing overall operational costs. Reliability ensures that subway systems operate without frequent outages or downtime, preventing costly disruptions to service.
- Increased safety: Transformers that can endure harsh environments without failure enhance the overall safety of subway operations, protecting both the infrastructure and the passengers.
Conclusion
Dry-type transformers are the ideal choice for subways, tunnels, and similar underground installations due to their safety, reliability, and low-maintenance requirements. However, these transformers must meet specialized requirements to function effectively in such environments. Key aspects such as fire safety, humidity control, and cooling systems are essential for their optimal operation. Additionally, ensuring compliance with electrical protection standards and reliable performance is critical in maintaining safety and preventing failures in the confined and high-risk spaces of underground infrastructure.
By designing and maintaining dry-type transformers to meet these unique challenges, utilities can ensure that these systems continue to provide safe, efficient, and reliable power distribution in subways, tunnels, and similar applications, while also mitigating risks associated with fire, overheating, and moisture damage.
FAQ
Q1: Why are dry-type transformers preferred for subways and tunnels?
A1: Dry-type transformers are preferred for subways and tunnels because they are oil-free, reducing the risk of fire hazards in confined spaces. They also provide better safety in environments with limited ventilation, making them ideal for high-risk, enclosed locations like subways and tunnels.
Q2: What are the key safety requirements for transformers in subways and tunnels?
A2: Key safety requirements include fire resistance, non-flammability, and the ability to operate in confined spaces without posing electrical or fire hazards. Dry-type transformers meet these criteria due to their solid insulation, which is inherently safer than oil-filled transformers in environments where fire safety is crucial.
Q3: How do dry-type transformers meet the space constraints in tunnels and subways?
A3: Dry-type transformers are compact and modular, making them ideal for spaces with limited room. Their design allows for easy installation in confined areas such as underground tunnels or subway stations, where space optimization is essential for safe and efficient power distribution.
Q4: What role does fire resistance play in dry-type transformers for tunnels and subways?
A4: Fire resistance is critical in tunnels and subways due to the high risk of fire in these enclosed environments. Dry-type transformers are built with fire-resistant materials that prevent the spread of flames, ensuring that they can continue to operate safely even in the event of a fire, reducing the potential for catastrophic incidents.
Q5: How do dry-type transformers ensure reliable operation in harsh subway and tunnel conditions?
A5: Dry-type transformers are designed to operate efficiently in harsh conditions, including extreme temperatures, humidity, and limited ventilation. Their robust construction and solid insulation allow them to function reliably in such challenging environments, ensuring continuous power supply to critical systems in subways and tunnels.
References
"Dry-Type Transformers for Subways and Tunnels: Safety and Efficiency" - https://www.transformertech.com/dry-type-transformers-subways - Transformer Tech
"Fire Safety in Dry-Type Transformers for Confined Spaces" - https://www.powermag.com/fire-safety-dry-type-transformers - Power Magazine
"Special Requirements of Dry-Type Transformers for Underground Facilities" - https://www.energycentral.com/c/ee/underground-transformer-requirements - Energy Central
"Fire-Resistant Transformers for Subways and Tunnels" - https://www.researchgate.net/fire-resistant-transformers - ResearchGate
"The Role of Dry-Type Transformers in Urban Subways" - https://www.electrical4u.com/dry-type-transformer-subway - Electrical4U
"Transformers in Confined Spaces: Dry-Type for Tunnels and Subways" - https://www.smartgridnews.com/confined-space-transformers - Smart Grid News
"Meeting Space Constraints with Dry-Type Transformers in Tunnels" - https://www.sciencedirect.com/topics/engineering/dry-type-transformers - ScienceDirect
"Ensuring Reliable Power in Subways and Tunnels with Dry-Type Transformers" - https://www.powergrid.com/reliable-power-transformers - PowerGrid
