What are the signs of power transformer failure and how can they be diagnosed?

Power transformers are designed for long-term, continuous operation, but like all high-voltage equipment, they are susceptible to faults and deterioration over time. Detecting early signs of failure is critical to avoid costly outages, equipment damage, or safety hazards. This guide explores common failure indicators and the diagnostic techniques used to assess transformer health.

What Are the Early Warning Signs of Transformer Failure?

Transformers are designed to operate reliably for decades, but like all critical electrical assets, they are susceptible to wear, environmental stress, and internal degradation. The cost of an unanticipated failure is enormous—from equipment replacement and prolonged outages to environmental fines and safety hazards. Fortunately, most transformer failures don’t occur without warning. If recognized early, subtle signs such as abnormal noise, thermal fluctuations, or oil contamination can signal internal problems before catastrophic breakdown. Knowing what early warning signs to look for is essential for maintenance teams, utilities, and asset managers seeking to extend transformer life and reduce downtime.

The early warning signs of transformer failure include unusual sounds (humming or buzzing), oil leaks, overheating, discoloration or deformation of bushings, sudden changes in dissolved gas analysis (DGA) results, moisture ingress, tripped protective relays, and elevated partial discharge activity. These indicators often point to insulation breakdown, winding faults, core degradation, or oil contamination and should prompt immediate diagnostics and corrective action.

A timely response to these red flags can prevent significant financial and operational losses.

1. Unusual Noise or Acoustic Patterns

Noise deviations are one of the first and most audible signs of internal deterioration.

Tip:

Use acoustic sensors or directional microphones for non-intrusive fault localization.

2. Oil Leaks or Contamination

Chart: Oil Quality Indicators

Use Dissolved Gas Analysis (DGA) to detect early signs of overheating, electrical faults, and oil degradation.

3. Excessive Heating or Hot Spot Temperatures

Infrared thermography and online thermal sensors are critical for detecting overheating before insulation damage occurs.

4. Bushing Abnormalities

Routine Power Factor (tan δ) and Capacitance tests on bushings help identify degradation early.

5. Trip Events and Protection Relay Activations

Logged events from protection relays often precede or confirm emerging failures. Monitoring trip logs offers valuable diagnostic insight.

6. Changes in Load and Voltage Behavior

Voltage irregularities combined with thermal or oil anomalies often point to internal mechanical stress.

7. Environmental or External Warning Signs

Transformers in harsh environments should be equipped with environmental protection features, such as sealed tanks, anti-condensation heaters, and rodent-proofing.

8. Partial Discharge (PD) Activity

PD detection is critical in high-voltage equipment, especially for identifying insulation defects that precede failure.

9. Digital Monitoring System Alerts

Modern transformers equipped with IoT sensors or SCADA systems may show warnings such as:

• Sudden oil pressure change
• Alarm for high dissolved gas levels
• OLTC step response delay
• Thermal gradient deviation

Digital diagnostics often catch emerging faults days or weeks earlier than manual inspections.

Summary Table: Early Warning Signs of Transformer Failure

How Does Dissolved Gas Analysis (DGA) Indicate Internal Faults?

Transformer failures often originate from within—hidden faults like insulation breakdown, partial discharges, or arcing that silently develop over time. Once these internal faults escalate, they can lead to catastrophic breakdowns, extensive outages, and high replacement costs. But before reaching that point, transformers usually "whisper" their distress in the form of gases dissolved in their insulating oil. This is where Dissolved Gas Analysis (DGA) becomes the most powerful diagnostic tool in transformer maintenance. DGA not only reveals these internal issues before any visible or thermal signs appear, but also provides detailed insight into fault type, severity, and location. So, how does DGA indicate internal faults?

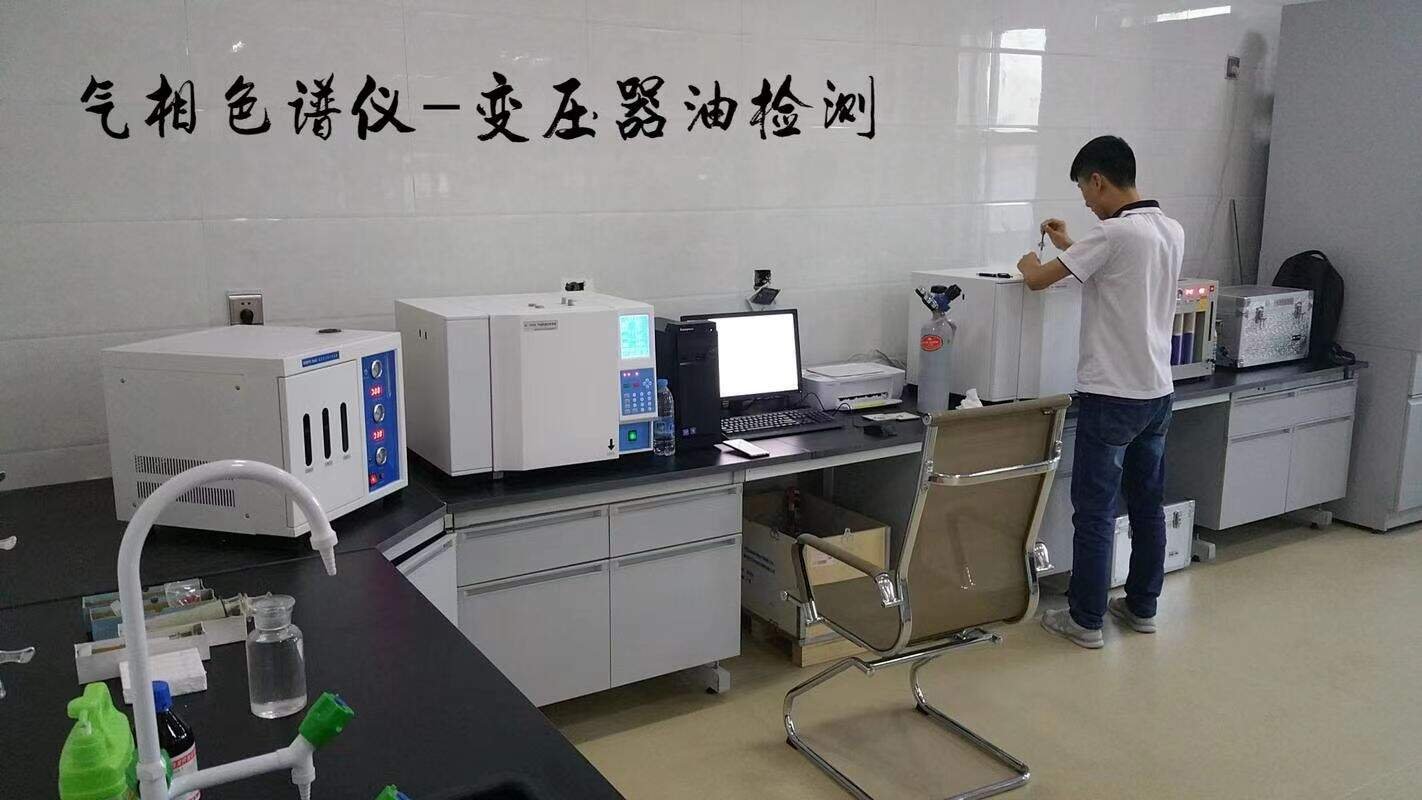

Dissolved Gas Analysis (DGA) works by detecting and quantifying key fault gases generated when insulation paper, oil, or windings decompose due to thermal or electrical stress. Each type of fault—like overheating, arcing, or partial discharge—produces a unique combination of gases such as hydrogen (H₂), methane (CH₄), ethylene (C₂H₄), acetylene (C₂H₂), and carbon monoxide (CO). By interpreting these gas signatures using ratios, thresholds, and standards like IEC 60599 and IEEE C57.104, DGA pinpoints fault type and progression.

This non-invasive test helps avoid failures, extend asset life, and reduce unscheduled outages.

1. How Gases Are Generated Inside Transformers

The type and concentration of gases released depend on the intensity and nature of the internal fault.

Illustration: Gas Generation by Fault Type

Partial Discharge → H₂ ↑, CH₄ ↑
Thermal Fault <300°C → CH₄ ↑, C₂H₆ ↑
Thermal Fault 300–700°C → C₂H₄ ↑, CH₄ ↓
Arcing >1000°C → C₂H₂ ↑↑↑, H₂ ↑

2. Key Gases Monitored in DGA

Table: Gas Threshold Levels (IEEE C57.104 Guide)

3. DGA Diagnostic Tools and Ratios

A. Key Ratio Methods (IEC 60599)

Example: Ratio Thresholds (IEC 60599)

B. Duval Triangle

A graphical tool developed by Michel Duval (Hydro-Québec), plotting three gases: C₂H₂, C₂H₄, and CH₄. Different zones on the triangle represent:

• PD (Partial Discharge)
• D1 (Low-energy Discharge)
• D2 (High-energy Arcing)
• T1/T2/T3 (Low, Medium, High Thermal Fault)

C. Roger’s Ratio Method (IEEE)

Uses five ratio combinations to classify faults into categories:

• PD
• Low Thermal (T1)
• High Thermal (T2, T3)
• Arcing (D1, D2)

4. Sampling and Analysis Techniques

Chart: When to Use DGA

5. Interpreting DGA for Maintenance and Repair

6. Real-World Example: DGA Case Study

Transformer Rating: 132/33 kV, 100 MVA
Oil Sample Date: June 2025
Lab Results:

Diagnosis:

• Elevated ethylene → Thermal fault >500°C (T3 level)
• Moderate acetylene → No active arcing
• High CO/CO₂ → Cellulose stress but not critical

Action Taken:

• Load reduced temporarily
• OLTC checked for hot spots
• Thermal imaging performed
• Repeat DGA scheduled in 3 weeks

Summary Table: Fault Types and Associated Gases

What Can Infrared Thermography Reveal?

Transformers, though robust, can develop internal or surface thermal anomalies long before any audible, electrical, or oil-based issues appear. These temperature imbalances are often the first indicators of impending problems such as loose connections, bushing degradation, overloads, or cooling inefficiencies. The challenge is, these irregularities are invisible to the naked eye. Infrared thermography, however, captures and visualizes these temperature differences with precision, enabling maintenance teams to diagnose faults non-invasively and in real-time. So, what exactly can infrared thermography reveal about transformer health?

Infrared thermography reveals temperature variations on the surface of a transformer, which indicate underlying issues such as loose or corroded connections, oil circulation blockages, overloaded windings, cooling system failures, bushing deterioration, and OLTC malfunctions. These hotspots, detectable by thermal imaging cameras, help identify abnormal heat signatures well before equipment failure occurs, enabling condition-based maintenance and avoiding unplanned outages.

It’s one of the most powerful, non-contact tools for predictive diagnostics in substation and industrial transformer monitoring.

1. Key Components Assessed Using Infrared Thermography

Example:

A bushing showing 20–30°C higher than others may indicate contact resistance, while a cold radiator in an active circuit can point to oil flow blockage.

2. Temperature Thresholds and Alarm Levels

Note: Values may vary based on IEC 60076 guidelines and manufacturer tolerances.

3. Fault Scenarios Identifiable by Thermography

Thermal Anomaly Pattern Example:

[Radiator 1]: 35°C
[Radiator 2]: 36°C
[Radiator 3]: 24°C  → Likely oil flow issue or stuck valve

4. Thermography Frequency and Best Practices

Best Practices:

• Scan during peak load or high ambient temperature
• Use calibrated infrared cameras with thermal sensitivity <0.1°C
• Maintain consistent scan angle and distance
• Cross-check with load current and ambient data

5. Thermal Imaging vs Other Diagnostic Methods

6. Case Study: Fault Detected via Infrared Imaging

Asset: 33/11 kV, 10 MVA Distribution Transformer
Issue Detected: Right-side bushing temp = 72°C; others at 42–45°C
Action: Thermographic scan triggered inspection
Findings: Loose connection at the terminal lug
Resolution: Connection re-tightened, thermal signature normalized in 24 hours
Outcome: Prevented flashover and outage during seasonal peak

7. Cost-Benefit and Predictive Maintenance Value

ROI Example:

• Cost of IR camera (basic): $2,000–$10,000
• Savings from prevented outage: $50,000+ per critical transformer
• Maintenance ROI: Realized within 1–2 events

Summary Table: What Infrared Thermography Reveals

How Does Oil Testing Help Diagnose Transformer Issues?

Transformer failures can be sudden and costly—but in most cases, the signs of distress are already present in the transformer’s insulating oil. This oil isn’t just a coolant or dielectric medium; it’s also a sensitive indicator of the health and performance of the internal components. Over time, insulating oil degrades due to thermal, electrical, and chemical stress, and by regularly analyzing its properties, asset managers can diagnose developing issues long before a critical failure occurs. Oil testing offers a cost-effective, non-invasive, and scientifically proven method to uncover faults in windings, insulation, the core, and even the presence of moisture or contamination.

Oil testing helps diagnose transformer issues by analyzing key parameters such as dissolved gases (via DGA), moisture content, dielectric breakdown strength, acidity (neutralization number), interfacial tension, furan content, and color. These tests provide insights into thermal faults, insulation degradation, arcing, contamination, and aging. Routine oil testing, aligned with IEC 60422 and IEEE C57.106 standards, allows early detection of internal problems and supports predictive maintenance.

It is one of the most effective strategies to reduce transformer downtime, extend service life, and prevent catastrophic outages.

1. Types of Transformer Oil Tests and What They Reveal

Example:

• High Acetylene (C₂H₂) → Arcing
• Low BDV (<30 kV) → Water or particles
• High Furan (>1 ppm) → Paper insulation breakdown

2. Critical Diagnostic Values and Limits

3. What Each Oil Test Tells You Technically

A. Dissolved Gas Analysis (DGA)

• Detects gases formed due to thermal and electrical decomposition.

• Gas ratios indicate fault types like:

  • Partial Discharge (↑H₂)
  • Thermal Fault (↑CH₄, ↑C₂H₄)
  • Arcing (↑C₂H₂)
• Standards: IEC 60599, IEEE C57.104

B. BDV Test

• Measures voltage at which oil fails electrically.
• Decreased BDV → Poor insulation, contamination.
• Routine indicator of oil’s suitability.

C. Moisture Content

• Water reduces oil dielectric strength and accelerates paper aging.
• High moisture = increased risk of flashover.

D. Acidity Test (Neutralization Number)

• Aging oil produces organic acids.
• High acidity → Corrosive environment, sludge formation, seals degradation.

E. Interfacial Tension (IFT)

• Measures tension between oil and water phase.
• Low IFT = high polar contaminants = aging byproducts present.

F. Furan Analysis

• Used to assess solid insulation condition.
• Non-invasive alternative to sampling paper.

4. Testing Frequency Recommendations (Based on Criticality)

5. Integrated Interpretation: Case Example

Transformer: 220/33 kV, 100 MVA
Test Data:

• DGA: C₂H₂ = 15 ppm, H₂ = 800 ppm
• BDV: 28 kV
• Acidity: 0.34 mg KOH/g
• Furan: 1.8 ppm

Diagnosis:

• C₂H₂ indicates arcing, possibly OLTC or winding fault
• Low BDV and high acidity → oil degradation
• Furan confirms insulation aging

Action Taken:

• Unit taken offline
• OLTC inspected and repaired
• Oil replaced and filter-processed
• Life-extension strategy developed

6. Oil Testing vs Other Condition Assessment Tools

7. Predictive Maintenance Benefits of Oil Testing

ROI:

A $150–$300 oil test could prevent a $150,000+ transformer failure.

Summary Table: What Each Oil Test Reveals

What Electrical Tests Indicate Winding or Core Problems?

Transformers are vital grid assets, but over time, mechanical, thermal, and electrical stresses can cause internal damage to windings or the magnetic core. These faults often remain invisible to the naked eye until they lead to failure, arcing, or catastrophic insulation breakdown. Since disassembling a transformer is not feasible during normal maintenance, electrical tests provide a powerful and non-invasive way to assess internal conditions. These tests help detect subtle signs of winding deformation, core displacement, inter-turn shorts, insulation failure, or excessive leakage flux before these issues grow into major risks.

Electrical tests such as winding resistance measurement, insulation resistance (IR), polarization index (PI), sweep frequency response analysis (SFRA), ratio and vector group tests, leakage reactance, and excitation current tests are used to detect transformer winding and core problems. Each test targets specific faults—winding deformation, shorted turns, insulation aging, or core displacement—providing actionable data for condition-based maintenance and diagnostics.

These tests follow IEC 60076, IEEE C57, and ANSI standards, ensuring consistency and reliability across diagnostics.

1. Key Electrical Tests for Diagnosing Winding and Core Faults

2. Winding Resistance Measurement (DC)

Common Fault Indicators:

• Asymmetric values between phases
• Sudden jump in resistance post-maintenance
• Resistance drift over time = possible corrosion or joint loosening

3. Insulation Resistance (IR) and Polarization Index (PI)

Typical Voltage: 2.5 kV or 5 kV DC

Use a megger tester, apply voltage between windings and ground.

4. Sweep Frequency Response Analysis (SFRA)

Fault Patterns:

• Deformed windings → Shift in mid-frequency response
• Shorted turns → Reduced high-frequency gain
• Core displacement → Low-frequency response change

Sample SFRA Chart:

5. Turns Ratio Test (TTR)

Fault Indications:

• Large deviation = winding short or incorrect tap setting
• Phase angle error = winding displacement or polarity error

Tool: Automatic TTR meter (3-phase preferred)

6. Leakage Reactance and Impedance Test

Changes from baseline indicate:

• Shorted turns (decreased reactance)
• Mechanical deformation (increased reactance)
• Loose winding blocks (oscillating values)

7. Excitation Current and Core Magnetizing Test

8. Capacitance and Tan Delta (Dissipation Factor)

High values indicate insulation aging, contamination, or delamination.

Table: Electrical Test Matrix for Windings and Core

Case Study: Fault Diagnosis via Electrical Testing

Asset: 66/11 kV, 20 MVA transformer
Complaint: Unusual heating and noise under normal load

Tests Performed:

• SFRA → Mid-frequency shift in HV winding
• TTR → Slight ratio deviation in HV phase R
• Leakage Reactance → 8% drop from baseline
• Excitation Current → Normal

Diagnosis:

• HV winding deformation due to short-circuit mechanical stress

Action:

• Taken offline
• Winding repair and tightening performed
• Retested for baseline before re-energizing

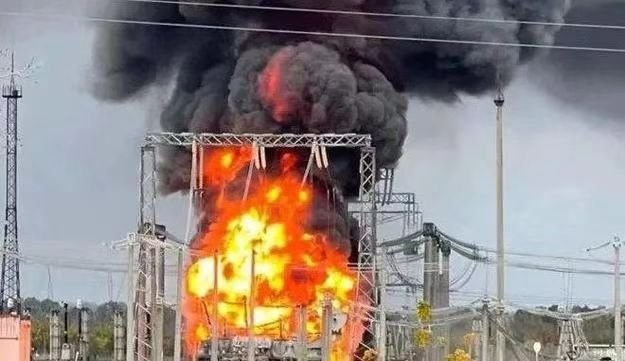

What Are the Consequences of Ignoring Early Failure Signs?

A power transformer doesn’t fail overnight—it deteriorates slowly through early warning signs like overheating, gas generation, insulation loss, or abnormal vibration. These signs, detectable by standard diagnostic tools such as DGA, thermography, and electrical tests, provide critical opportunities to intervene and prevent disaster. But when these early indicators are ignored or misjudged, the result is often catastrophic. Explosions, unplanned blackouts, environmental damage, and even safety hazards to personnel can follow. Ignoring early failure signs doesn't just threaten equipment—it threatens operational continuity, reputation, and human safety.

Ignoring early failure signs in transformers can lead to catastrophic outcomes, including total asset failure, fire or explosion, prolonged outages, environmental contamination, regulatory penalties, and severe financial losses. Symptoms such as abnormal gas levels, unusual thermal patterns, low insulation resistance, or audible noise typically precede major failures. Neglecting these indicators increases risk, reduces response time, and often turns a manageable fault into a major grid or industrial disruption.

Preventive action is far more economical—and safer—than post-failure recovery.

1. Common Early Warning Signs—and What Happens When They’re Ignored

Example: A minor contact resistance increase (10–20°C hotspot) ignored for six months can evolve into a 300°C+ local arc, rupturing the bushing and tank.

2. Case Studies: Real-World Consequences of Ignored Transformer Issues

Case 1: Oil-Filled Substation Transformer (South Asia)

• Early sign: C₂H₂ in oil rose from 2 ppm to 18 ppm in 2 months
• Ignored: Operator assumed OLTC timing variation
• Outcome: Arcing in diverter switch → Explosion → 72-hour blackout
• Losses: $460,000 equipment damage + regulatory fines

Case 2: Wind Farm Generator Transformer (Europe)

• Early sign: Thermography showed one bushing at 82°C vs 48°C baseline
• Ignored: Delay in scheduling repair due to peak season
• Outcome: Terminal flashover → Fire suppressed after 45 min
• Impact: 48 MW output lost for 3 weeks

Case 3: Industrial Furnace Transformer (USA)

• Early sign: IR fell from 400 MΩ to 25 MΩ over 6 months
• Ignored: Not considered "critical" by maintenance team
• Outcome: Insulation failure → Internal short → Tank rupture
• Cost: Transformer scrapped, furnace idle 6 days → $850,000 loss

3. Technical & Financial Risks of Ignoring Fault Symptoms

A. Technical Risks

B. Financial Losses

4. Impact on Grid, Industry, and Safety

Visual Risk Chain:

Early Sign Ignored →
Undiagnosed Fault Grows →
Unexpected Failure →
Fire or Arc Flash →
Outage / Damage →
Investigation, Cost, Downtime

5. Why Early Detection Saves Lives and Costs

ROI: Preventive maintenance costs <5% of post-failure recovery

Summary Table: Ignored Signs and Their Escalation

| Sign Ignored
