The quality of transformer oil plays a vital role in the reliable operation of power transformers. Transformer oil not only provides electrical insulation between the windings and core but also helps in cooling the transformer by dissipating the heat generated during operation. Over time, however, transformer oil can degrade or become contaminated, which can compromise the performance of the transformer and even lead to failure. Regular testing and maintenance of transformer oil are essential to ensure that it continues to perform its functions effectively. In this article, we will explore the methods used to test transformer oil quality, the tests involved, and how to maintain the oil to ensure the optimal functioning of power transformers.
Why is Transformer Oil Quality Important?
Transformer oil plays a crucial role in ensuring the efficient operation, reliability, and longevity of power transformers. It acts as both an insulator and a cooling medium, preventing overheating and electrical breakdown. However, transformer oil degrades over time due to contamination, oxidation, and other environmental factors. If the oil quality is not properly maintained, transformers can suffer from reduced performance, increased risk of failures, and even catastrophic breakdowns. Understanding the importance of transformer oil quality is essential for effective power system maintenance and reliability.
The quality of transformer oil is essential because it provides electrical insulation, dissipates heat, and prevents moisture-related failures. Poor-quality oil can lead to insulation breakdown, overheating, and accelerated aging of transformer components, ultimately increasing maintenance costs and reducing transformer lifespan. Regular monitoring and maintenance of transformer oil ensure long-term reliability and safety of the equipment.
Maintaining optimal transformer oil quality is not just a recommendation but a necessity for power utilities and industrial facilities. In this article, we will explore the critical functions of transformer oil, the impact of oil degradation, and the best practices for maintaining oil quality to extend transformer life.
1. Key Functions of Transformer Oil
Transformer oil is specially formulated to serve multiple functions within power transformers. The primary roles of transformer oil include:
1.1 Electrical Insulation
One of the most crucial functions of transformer oil is to act as an electrical insulator. Since transformers operate under high voltage, electrical insulation is vital to prevent short circuits and arcing. High-quality transformer oil has a high dielectric strength, which allows it to withstand electrical stresses and protect transformer windings.
1.2 Heat Dissipation and Cooling
Transformers generate heat during operation due to electrical losses in the core and windings. Transformer oil helps dissipate this heat by circulating within the transformer tank and transferring excess heat to the cooling system. Poor oil quality reduces thermal conductivity, leading to overheating and increased risk of insulation failure.
1.3 Moisture Prevention and Contamination Control
Water and moisture are the biggest enemies of electrical insulation. Transformer oil absorbs and prevents moisture from reaching the solid insulation materials, such as paper and pressboard. If the oil becomes saturated with moisture, it loses its insulating properties and can lead to electrical breakdowns.
1.4 Arc Suppression and Fault Protection
During voltage fluctuations and transient faults, high-quality transformer oil helps suppress electrical arcs, reducing the risk of severe damage to the transformer. It acts as a dielectric medium that maintains stability under varying electrical loads.
2. The Impact of Transformer Oil Degradation
Over time, transformer oil undergoes degradation due to various factors, including oxidation, contamination, and thermal aging. Understanding the impact of oil degradation helps highlight the importance of regular monitoring and maintenance.
2.1 Oxidation and Sludge Formation
Oxidation occurs when transformer oil reacts with oxygen, leading to the formation of acidic compounds and sludge. Sludge deposits settle on transformer windings, reducing cooling efficiency and increasing the risk of overheating.
2.2 Moisture Absorption and Dielectric Breakdown
Transformer oil naturally absorbs moisture from the atmosphere and internal components. Excess moisture reduces the dielectric strength of the oil, leading to insulation breakdown and electrical faults.
2.3 Contamination from External Sources
Dust, metal particles, and dissolved gases can contaminate transformer oil, reducing its insulation properties. Common contaminants include carbon particles from arcing, water ingress, and metallic debris from transformer aging.
2.4 Thermal Degradation
High operating temperatures accelerate the breakdown of transformer oil. As oil degrades, it produces dissolved gases such as hydrogen, carbon monoxide, and methane. Monitoring these gases through Dissolved Gas Analysis (DGA) helps identify early warning signs of transformer failure.
3. Key Transformer Oil Quality Parameters
Maintaining transformer oil quality requires periodic testing and analysis. The following parameters are commonly used to assess oil condition:
| Parameter | Importance | Acceptable Range |
|---|---|---|
| Dielectric Strength | Indicates oil’s ability to resist electrical breakdown | > 30 kV |
| Water Content | High moisture reduces insulation properties | < 30 ppm |
| Acid Number | Measures oxidation levels and oil degradation | < 0.1 mg KOH/g |
| Interfacial Tension | Indicates the presence of sludge and oxidation byproducts | > 25 dynes/cm |
| Dissolved Gas Content | Helps identify early transformer faults through gas analysis | Varies by fault type |
Regular transformer oil testing ensures that any degradation is detected early, preventing unexpected failures and costly repairs.
4. Best Practices for Maintaining Transformer Oil Quality
Ensuring optimal transformer oil quality requires a combination of preventive maintenance and corrective actions. Here are some best practices for maintaining oil quality:
4.1 Regular Oil Testing and Condition Monitoring
Periodic testing of transformer oil is essential to detect early signs of degradation. Key tests include:
- Dielectric Strength Test: Measures the voltage at which oil breaks down.
- Dissolved Gas Analysis (DGA): Identifies potential faults by analyzing gas levels.
- Moisture Content Test: Determines water contamination in oil.
- Acid Number Test: Assesses oil oxidation and acidity levels.
4.2 Filtration and Oil Purification
If transformer oil shows signs of contamination or degradation, filtration and purification processes can help restore its quality. Common oil treatment methods include:
- Vacuum Filtration: Removes moisture, dirt, and dissolved gases.
- Centrifugation: Separates sludge and impurities from oil.
- Regeneration: Uses activated clay treatment to remove acidic byproducts.
4.3 Proper Storage and Handling of Transformer Oil
Transformer oil must be stored in airtight, moisture-proof containers to prevent contamination. Best practices include:
- Storing oil in sealed drums or tanks with nitrogen blanketing.
- Keeping oil away from high humidity environments.
- Using clean and dry transfer equipment to avoid introducing contaminants.
4.4 Temperature and Load Management
Overloading transformers or operating at high temperatures accelerates oil degradation. Implementing effective load management strategies helps extend oil life:
- Avoid overloading transformers beyond their rated capacity.
- Ensure proper cooling system functionality to maintain optimal oil temperatures.
- Regularly inspect and clean radiators and cooling fans.
4.5 Replacement and Reconditioning of Oil
In cases where transformer oil is severely degraded, replacing or reconditioning the oil is necessary. Utilities should establish a maintenance schedule to determine when oil should be replaced based on quality test results.
How is Transformer Oil Tested for Quality?
Testing transformer oil for quality is a critical practice to ensure the safety, reliability, and longevity of transformers. Transformer oil, also known as insulating oil, performs essential functions such as cooling and providing electrical insulation. As oil degrades over time, it loses its ability to perform these functions effectively, leading to overheating, insulation failure, and potential transformer failure. Therefore, regular and thorough oil testing is an integral part of transformer maintenance.
Transformer oil is tested for quality using various methods to measure key parameters, such as dielectric strength, moisture content, acidity, and dissolved gases. These tests help detect early signs of oil degradation, contamination, or transformer faults, allowing for proactive maintenance and reducing the risk of transformer failure.
In this article, we will explore the various tests conducted on transformer oil to assess its quality, identify potential issues, and ensure the continued safe operation of transformers.
1. Key Parameters Tested in Transformer Oil
Transformer oil is tested based on specific parameters that provide insight into its quality and suitability for operation. These parameters include:
1.1 Dielectric Strength
Dielectric strength is a measure of the oil’s ability to resist electrical breakdown under high voltage. This test determines how well the oil can insulate the transformer components and prevent short circuits or arcing. If the dielectric strength is too low, the oil cannot effectively insulate the transformer, leading to potential electrical faults.
Test Method:
The dielectric strength is tested by applying a gradually increasing voltage to the oil until it breaks down (i.e., sparks or arcs). The voltage at which breakdown occurs is the dielectric strength of the oil, measured in kilovolts (kV).
| Acceptable Dielectric Strength | Typical Value |
|---|---|
| Good Quality Oil | >30 kV |
| Poor Quality Oil | <15 kV |
1.2 Moisture Content
Water is one of the most damaging contaminants in transformer oil. High moisture levels reduce the oil's dielectric strength, promote oxidation, and accelerate insulation deterioration. Therefore, testing for moisture is essential for ensuring the oil remains effective at insulating transformer components.
Test Method:
The moisture content is measured using the Karl Fischer titration method, a precise chemical analysis that determines the exact amount of water in the oil. The moisture content is typically measured in parts per million (ppm).
| Acceptable Moisture Content | Typical Value |
|---|---|
| Optimal Oil Quality | <30 ppm |
| Risky Moisture Level | >100 ppm |

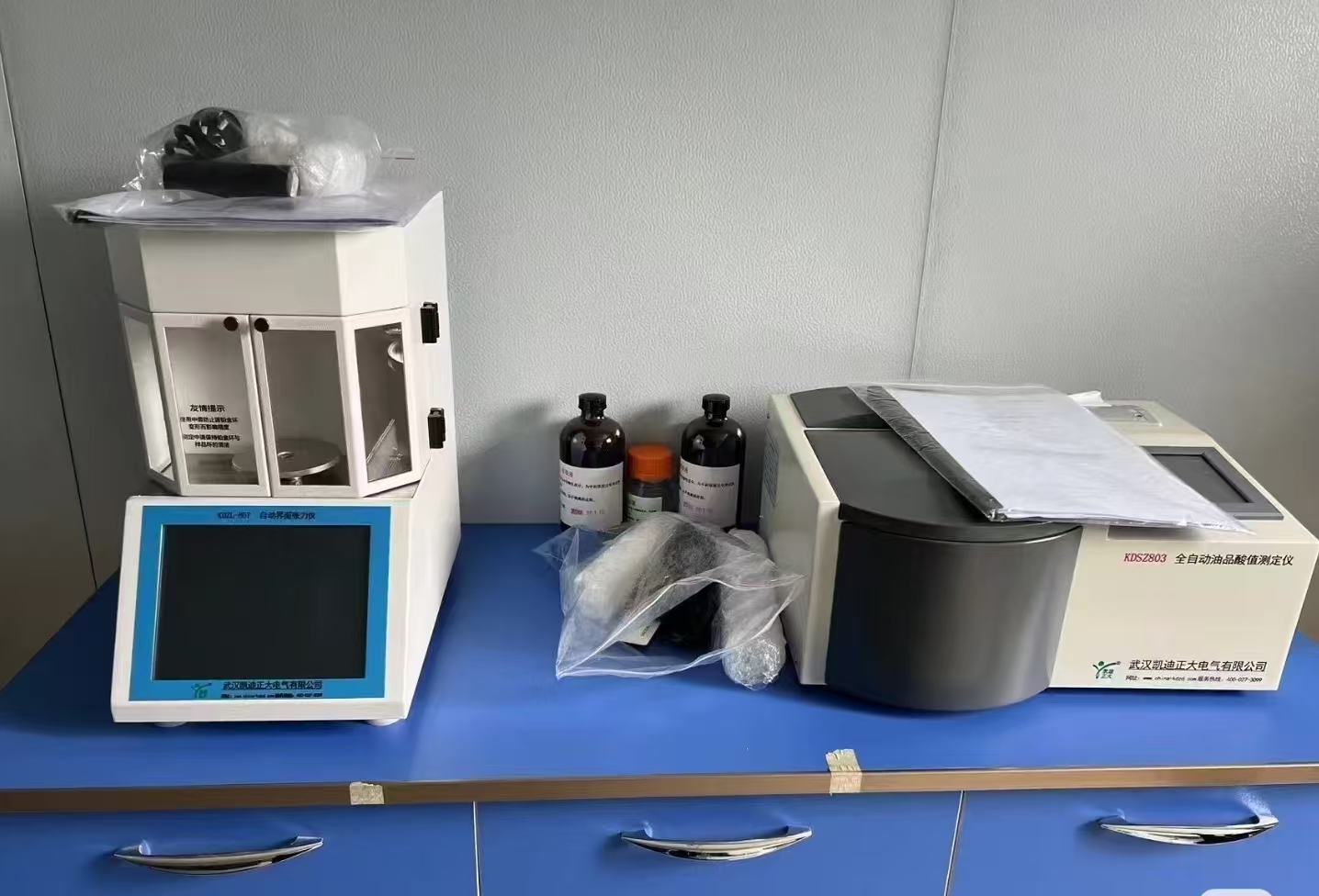

1.3 Acid Number (AN)
The acid number of transformer oil measures the level of acidic compounds produced through oxidation. Oxidation occurs when the oil reacts with oxygen over time, especially under high temperatures. Elevated acid numbers indicate oil degradation and the formation of corrosive byproducts, which can damage transformer components and reduce oil efficiency.
Test Method:
The acid number is measured by dissolving a small sample of oil in a solvent and titrating it with a base until the oil becomes neutral. The volume of base required to neutralize the acid is then recorded as the acid number.
| Acceptable Acid Number | Typical Value |
|---|---|
| Optimal Oil Quality | <0.1 mg KOH/g |
| Degraded Oil Quality | >0.3 mg KOH/g |
1.4 Interfacial Tension (IFT)
Interfacial tension is a measure of the interaction between the oil and water or sludge contaminants. This test provides insight into the degree of oil degradation and the presence of contaminants. A lower IFT indicates the presence of sludge, water, or other degradation products in the oil.
Test Method:
Interfacial tension is measured using a drop of oil placed on the surface of water. The oil’s resistance to spreading on the water is measured to determine the IFT. A lower IFT suggests greater contamination or degradation.
| Acceptable Interfacial Tension | Typical Value |
|---|---|
| Optimal Oil Quality | >25 dynes/cm |
| Degraded Oil Quality | <15 dynes/cm |
1.5 Dissolved Gas Analysis (DGA)
Dissolved gas analysis is one of the most powerful diagnostic tools for identifying internal faults in a transformer. As the transformer operates, certain gases such as hydrogen, methane, carbon monoxide, and ethylene are generated due to electrical or thermal stress. The type and concentration of dissolved gases can indicate the presence of issues such as arcing, overheating, or insulation breakdown.
Test Method:
DGA involves sampling the oil and analyzing the gases dissolved within it using chromatography. The gas levels are analyzed to detect early signs of faults like partial discharges, overheating, or arcing.
| Dissolved Gases to Monitor | Indicator of Fault |
|---|---|
| Hydrogen (H2) | Partial Discharge or Arcing |
| Methane (CH4) | Overheating or Faults |
| Ethylene (C2H4) | Thermal Stress |
| Acetylene (C2H2) | Severe Arcing or Fault |
| Carbon Monoxide (CO) | Overheating or Decomposition |
2. Methods of Transformer Oil Testing
There are various methods used to test transformer oil. These methods range from basic laboratory tests to more advanced techniques such as real-time monitoring and diagnostic tools.

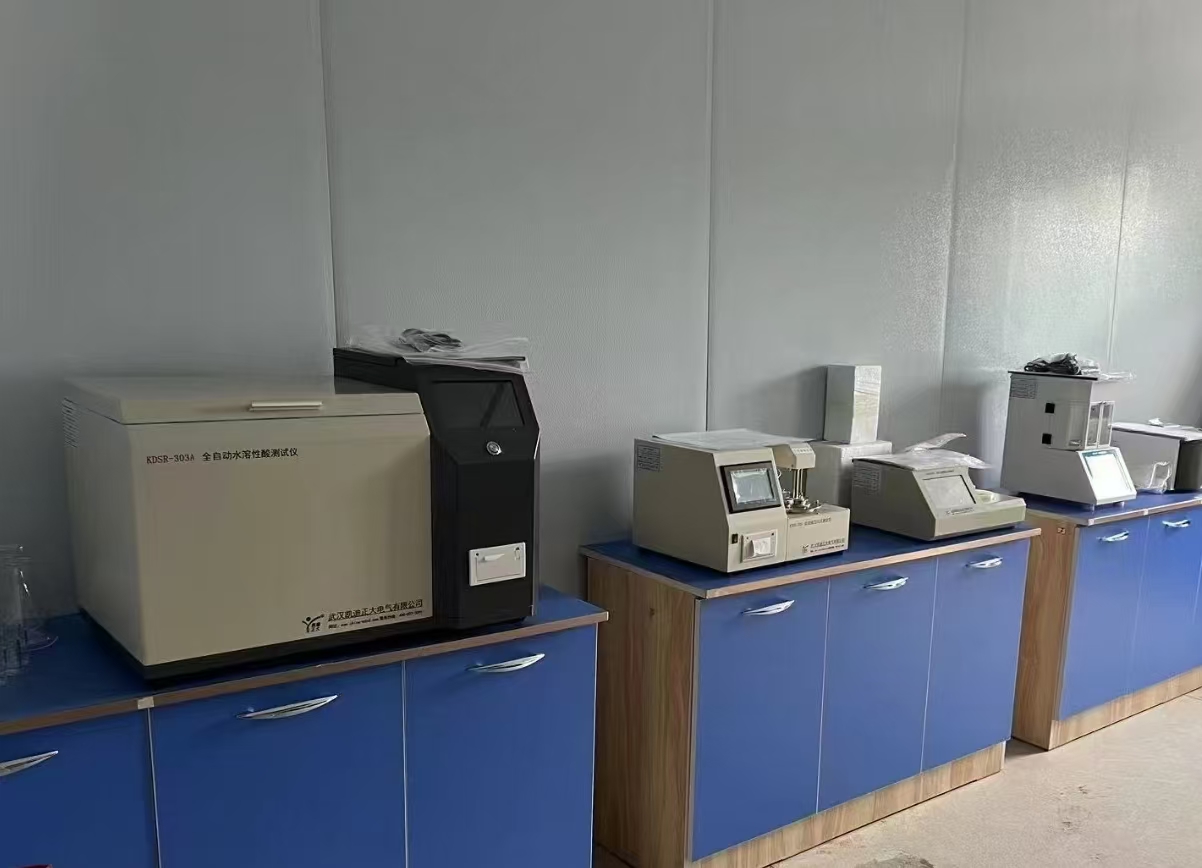

2.1 Laboratory Testing
Laboratory testing involves taking oil samples from the transformer and sending them to a specialized lab for analysis. The tests are typically conducted using established methods such as those described earlier (dielectric strength, acid number, moisture content, etc.). This is the most common and traditional method of oil testing.
2.2 On-Site Testing
For transformers in operation, on-site oil testing may be performed using portable testing equipment. These tests allow for quick measurements of oil quality without needing to shut down the transformer or send samples to a lab. Some tests, such as dielectric strength and moisture content, can be measured on-site with dedicated portable devices.
2.3 Real-Time Monitoring
Modern transformers are often equipped with real-time monitoring systems that continuously track the condition of the transformer oil. These systems use sensors to measure parameters such as temperature, gas concentrations, moisture, and dielectric strength. Data is transmitted to a central monitoring station, allowing for proactive management and early detection of issues.
2.4 Oil Filtration and Regeneration
If oil quality tests reveal significant degradation, oil filtration and regeneration processes may be performed. These processes aim to remove contaminants such as moisture, sludge, and dissolved gases, restoring the oil to an optimal condition.
3. Importance of Regular Oil Testing
Regular testing of transformer oil is essential for the following reasons:
3.1 Preventing Transformer Failures
Early detection of oil degradation or contamination through testing allows operators to take corrective action before serious damage occurs. This proactive approach reduces the risk of transformer breakdowns and extends the life of the equipment.
3.2 Ensuring Compliance with Industry Standards
Regular oil testing helps ensure that transformer oil meets industry standards and regulatory requirements for safe and efficient operation. Testing helps utilities comply with the operational guidelines set forth by regulatory bodies.
3.3 Optimizing Maintenance Costs
By regularly monitoring oil quality, utilities can perform targeted maintenance rather than waiting for a catastrophic failure. This can significantly reduce repair costs and downtime associated with transformer failures.
What is the Dielectric Strength Test and Why is it Important?
The dielectric strength test is a critical procedure used to evaluate the ability of transformer oil (or any insulating material) to resist electrical breakdown under high voltage. In the context of power transformers, oil plays a crucial role as both an insulator and a cooling medium. However, over time, factors such as contamination, oxidation, and moisture can degrade the oil, compromising its insulating properties. The dielectric strength test helps identify such degradation, ensuring that transformers remain safe and efficient.
In simple terms, the dielectric strength test determines the maximum voltage that can be applied to transformer oil before it loses its insulating capabilities and allows current to flow through it, potentially causing a fault or failure.
This test is essential for maintaining transformer integrity, preventing electrical short circuits, and ensuring the overall safety and longevity of electrical infrastructure.
How is the Dielectric Strength Test Performed?
The dielectric strength test involves applying an increasing voltage to a sample of transformer oil while carefully monitoring the point at which the oil breaks down and allows electrical current to pass through. Here’s how the process typically works:
1. Preparing the Sample
A small, controlled sample of transformer oil is taken from the transformer. The oil should be clean and free from contaminants to ensure accurate results.
2. Setting Up the Test Apparatus
The oil sample is placed in a specialized testing vessel, often a test cell with electrodes. The electrodes are positioned in a way that allows the application of a gradually increasing voltage. The vessel is designed to prevent any external contamination and ensure uniformity during testing.
3. Applying Voltage
The test begins by slowly applying an alternating current (AC) voltage to the electrodes immersed in the oil. The voltage is increased at a consistent rate until the oil’s insulating properties break down, leading to electrical breakdown or arcing.
4. Measuring the Breakdown Voltage
The point at which the oil begins to conduct electricity, or where arcing occurs, is recorded as the breakdown voltage or dielectric strength. This value, measured in kilovolts (kV), indicates the oil's ability to withstand electrical stress.
5. Interpreting Results
If the breakdown voltage is lower than the required level, it suggests that the oil has degraded and may no longer be suitable for use in the transformer. The oil may need to be replaced or regenerated.
| Oil Quality | Dielectric Strength |
|---|---|
| Optimal | >30 kV |
| Degraded | <15 kV |
| Critical | <10 kV |
Why is the Dielectric Strength Test Important?
The dielectric strength test plays a vital role in the maintenance and operation of power transformers for several reasons:
1. Ensures Safe Operation of Transformers
Transformer oil serves as a barrier that prevents electrical currents from short-circuiting the transformer’s internal components. If the dielectric strength of the oil decreases below the required threshold, the oil cannot effectively insulate the transformer, leading to potential faults and even catastrophic failures.
2. Detects Oil Degradation Early
Over time, transformer oil undergoes natural degradation due to exposure to heat, oxygen, moisture, and other environmental factors. This degradation can lead to a reduction in the oil's dielectric strength. By regularly testing the oil’s dielectric strength, utilities can identify early signs of oil degradation and take corrective action before transformer failure occurs.
3. Prevents Electrical Arcing
If the dielectric strength of the oil becomes too weak, it may lead to electrical arcing between transformer windings, leading to damage, fire hazards, and the potential for major system failure. The dielectric strength test helps detect such risks early.
4. Reduces Maintenance Costs
Proactively monitoring the dielectric strength of transformer oil allows for the early identification of issues that could lead to transformer damage. By identifying problems early, utilities can perform less costly maintenance, such as oil regeneration or replacement, before expensive repairs are necessary.
5. Extends Transformer Lifespan
Regular dielectric strength testing ensures that the oil maintains its insulating properties over time, thereby extending the operational life of the transformer. Oil degradation that goes unnoticed can accelerate wear and tear on transformer components, reducing the overall lifespan of the equipment.
6. Compliance with Industry Standards
The dielectric strength test is also required to ensure that transformers comply with industry standards and regulations. Regular testing ensures that transformers meet safety and operational standards set by regulatory bodies.
Factors That Can Affect Dielectric Strength
Several factors can cause transformer oil to lose its dielectric strength, including:
1. Moisture Contamination
Moisture is one of the most detrimental contaminants to transformer oil. Even small amounts of water can drastically reduce the dielectric strength, leading to electrical breakdown. The presence of water in oil is typically caused by leaks in the transformer or condensation within the oil tank.
2. Oxidation
Over time, transformer oil reacts with oxygen, resulting in the formation of acidic compounds that degrade the oil’s insulating properties. Oxidation also leads to the production of sludge, which can clog filters and cause other issues in the transformer.
3. Dirt and Sludge
Dirt particles and sludge formation due to oil degradation can increase the risk of dielectric breakdown by reducing the oil's insulating properties and creating localized areas of weakness within the transformer.
4. Temperature
High operating temperatures accelerate the degradation of transformer oil. Excessive heat can cause oil to break down chemically, reducing its dielectric strength and leading to a higher risk of failure.
How to Improve Dielectric Strength
If the dielectric strength of the oil is found to be insufficient, there are several ways to restore or improve it:
1. Oil Filtration and Regeneration
If moisture, sludge, or other contaminants are found in the oil, filtration and regeneration processes can help restore its dielectric strength. Filtration removes solid particles, while regeneration processes remove dissolved gases and moisture, improving the oil’s insulating properties.
2. Oil Replacement
In cases of severe degradation, the oil may need to be completely replaced. Replacing the oil restores the dielectric strength to optimal levels, ensuring the continued safe operation of the transformer.
3. Temperature Control
Maintaining the transformer at an optimal operating temperature can slow the rate of oil degradation. Cooling systems, such as fans or radiators, help maintain a stable temperature, reducing the risk of breakdowns.
How is Moisture in Transformer Oil Tested and Controlled?
Moisture in transformer oil is a critical concern in the maintenance of power transformers. Transformer oil acts as both an electrical insulator and a coolant, but the presence of moisture can severely compromise its insulating properties, leading to equipment failure. Over time, moisture can enter transformer oil through various means, such as leaks, condensation, or oxidation of the oil. Understanding how to test and control moisture in transformer oil is essential for ensuring the long-term health and functionality of transformers.
In this article, we’ll explore the different methods used to test moisture levels in transformer oil and how utilities can control moisture contamination to protect their assets and maintain safe, efficient transformer operation.
Why is Moisture in Transformer Oil a Concern?
The presence of moisture in transformer oil poses several risks:
- Reduced Dielectric Strength: Moisture lowers the oil's dielectric strength, making it less effective as an insulator. This can lead to electrical breakdowns and transformer faults.
- Accelerated Aging: Water in the oil accelerates the degradation of both the oil and the transformer’s internal components, particularly the insulation system.
- Corrosion: Moisture can corrode metal parts within the transformer, such as bushings and windings, leading to premature failure.
- Sludge Formation: Moisture contributes to the formation of sludge in transformer oil, which can clog filters and reduce cooling efficiency.
Thus, it is crucial to monitor moisture levels regularly and take steps to reduce water content in transformer oil to extend the life of the transformer and ensure its safe operation.
How is Moisture in Transformer Oil Tested?
Several testing methods are available to measure the moisture content in transformer oil. These tests vary in complexity and accuracy, and the choice of test depends on the specific requirements of the transformer and the available equipment. The most commonly used methods for testing moisture levels include:
1. Karl Fischer Titration Method
The Karl Fischer titration is considered the gold standard for measuring moisture in transformer oil. This method is highly accurate and involves a chemical reaction between the water content and a reagent, which is then titrated to determine the amount of water present in the sample.
- Procedure: A sample of transformer oil is mixed with the Karl Fischer reagent, which reacts with water. The titration process allows the exact amount of water in the sample to be measured.
- Advantages: Highly accurate and precise. It can measure very low levels of moisture, even in parts per million (ppm).
- Disadvantages: It requires a specialized laboratory setup and is relatively time-consuming.
2. Moisture Analyzer Method (Coulometric Method)
This method uses a moisture analyzer that works by measuring the conductivity of the transformer oil in relation to the moisture content. The water in the oil enhances the electrical conductivity, which is detected and quantified by the analyzer.
- Procedure: A small sample of transformer oil is placed in the analyzer, which passes a small electric current through it. The conductivity changes based on the moisture content, and this is used to calculate the water concentration.
- Advantages: Quick and simple to perform, suitable for field testing.
- Disadvantages: Not as accurate as the Karl Fischer titration method for very low moisture levels.
3. Distillation Method
In this method, the oil is heated, and the vapor is condensed and measured. The water content is determined by measuring the amount of distilled water.
- Procedure: A sample of oil is heated to a high temperature, causing the water to evaporate. The vapor is then condensed and measured to determine the moisture content.
- Advantages: Simple and low-cost technique.
- Disadvantages: Less accurate compared to the Karl Fischer method. It may also take longer and may not detect low levels of moisture.
4. Dielectric Dissipation Factor (DDF)
Although not a direct measurement of moisture, the dielectric dissipation factor (DDF) method can be used to indirectly detect the presence of moisture in transformer oil by measuring the oil’s dielectric properties.
- Procedure: The DDF test involves measuring the dielectric loss of the transformer oil at a specific frequency and temperature. A high DDF indicates the presence of moisture or contaminants.
- Advantages: Provides a quick indication of the overall condition of the oil, including moisture content.
- Disadvantages: Not as precise as chemical methods and cannot quantify the exact moisture content.
5. Infrared Spectroscopy
Infrared (IR) spectroscopy involves passing infrared light through a sample of oil. Water in the oil absorbs specific wavelengths of infrared light, and the amount of absorption correlates with the moisture content.
- Procedure: The oil sample is exposed to infrared light, and the amount of absorption is measured. This absorption is directly related to the water content in the oil.
- Advantages: Non-destructive and relatively quick.
- Disadvantages: Requires specialized equipment and may not be as accurate as titration methods.
| Testing Method | Accuracy | Speed | Equipment | Cost |
|---|---|---|---|---|
| Karl Fischer Titration | Very high | Slow | Laboratory setup | High |
| Moisture Analyzer | Moderate | Fast | Portable analyzer | Moderate |
| Distillation | Moderate | Moderate | Basic laboratory | Low |
| Dielectric Dissipation | Low to Moderate | Very fast | Field equipment | Moderate |
| Infrared Spectroscopy | Moderate | Fast | Advanced IR equipment | High |
How to Control Moisture in Transformer Oil?
Control of moisture in transformer oil is critical for maintaining transformer performance and longevity. Various methods are used to prevent moisture from entering the oil and to remove moisture if it has already contaminated the oil.
1. Sealing and Leak Prevention
The most effective way to control moisture in transformer oil is by preventing it from entering the system in the first place. This involves:
- Sealing Transformer Tanks: Ensuring that transformer tanks are properly sealed to prevent moisture ingress from the surrounding environment.
- Moisture-Proof Breathers: Using silica gel or desiccant breathers on transformers to absorb moisture in the air before it can enter the tank.
- Proper Storage: Storing transformers in controlled environments with low humidity to avoid condensation.
2. Moisture Removal Systems
Once moisture is present in transformer oil, it must be removed to restore the oil’s insulating properties. There are several methods for moisture removal:
- Oil Filtration: Oil filtration systems equipped with moisture removal filters can be used to remove water from transformer oil. These filters typically use silica gel or molecular sieves to absorb moisture.
- Vacuum Dehydration: Vacuum dehydration systems remove moisture by applying a vacuum to the oil, which lowers the boiling point of water, allowing it to evaporate at a lower temperature.
- Oil Regeneration: In cases where the moisture content is high, oil regeneration systems can be used. These systems involve passing the oil through a series of filters and desiccants to remove contaminants, including moisture.
3. Online Monitoring and Maintenance
Using online moisture sensors installed in transformers can help continuously monitor the moisture content in the oil. These sensors provide real-time data on moisture levels, allowing operators to take immediate action if moisture levels exceed acceptable thresholds.
4. Oil Replacement
In extreme cases where moisture levels cannot be controlled by filtration or regeneration, the oil may need to be completely replaced to ensure proper transformer operation.
What is the Role of Acidity Testing in Transformer Oil Maintenance?
Transformer oil is a critical component in power transformer maintenance, serving as both an insulator and a coolant. Over time, however, the oil can undergo chemical changes due to high temperature, oxidation, and contaminants, which can compromise its performance. One of the most important tests used to assess the condition of transformer oil is acidity testing. This test is essential for detecting the presence of acids in the oil, which can be harmful to both the oil and the transformer itself.
In this article, we will explore the role of acidity testing in transformer oil maintenance, why it is crucial, and how regular acidity tests can help in preventing costly transformer failures and ensuring the longevity of power transformers.
Why is Acidity Testing Important in Transformer Oil?
Acidity in transformer oil generally results from the breakdown of oil due to oxidation and thermal degradation. When oils degrade, they produce acids, such as acetic acid and formic acid, which can severely affect the performance of the transformer. Acidity in transformer oil can lead to several issues:
- Corrosion of Internal Components: The acids in degraded oil can cause corrosion of critical transformer components like windings, bushings, and metal parts, reducing the lifespan and efficiency of the transformer.
- Insulation Breakdown: As the oil becomes more acidic, it can damage the cellulose insulation (such as paper) within the transformer. This breakdown of insulation can lead to electrical failures and transformer faults.
- Increased Viscosity: Acidity can cause the oil to become more viscous, reducing its cooling efficiency and leading to overheating issues within the transformer.
- Poor Dielectric Strength: The presence of acids can lower the dielectric strength of the oil, increasing the risk of electrical breakdowns and arcing within the transformer.
Thus, regular acidity testing is a key maintenance step to prevent these problems and ensure the transformer operates safely and efficiently over its service life.
How is Acidity Tested in Transformer Oil?
There are several methods available to test the acidity of transformer oil, with each offering varying levels of precision and application. The most commonly used methods are:

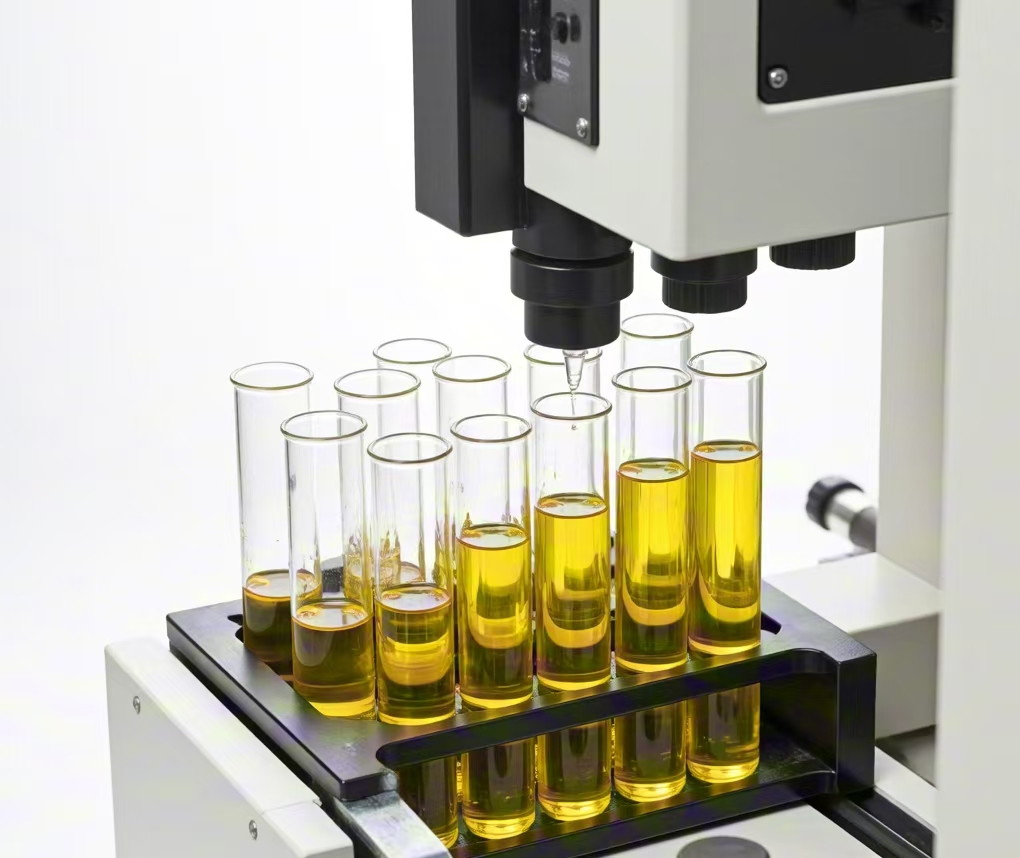

1. Total Acid Number (TAN) Test
The Total Acid Number (TAN) is the most widely used method to measure the acidity in transformer oil. It quantifies the total concentration of acidic substances present in the oil. The TAN test involves titrating the oil sample with a standardized alkaline solution to neutralize the acids, and the amount of alkaline solution required to reach the neutralization point is measured.
- Procedure: A known volume of oil is mixed with a solvent and titrated with a base, usually potassium hydroxide (KOH), until the solution reaches a neutral pH. The amount of base required is directly proportional to the acid content in the oil.
- Advantages: Reliable, widely accepted, and provides a direct measure of the oil’s overall acidity.
- Disadvantages: This test measures the total acidity but does not differentiate between specific acids that may be present in the oil.
2. pH Measurement
The pH of transformer oil is another way to assess its acidity. However, pH testing is less commonly used for transformer oil, as the oil is typically non-aqueous and does not have the same pH properties as water-based systems. Nevertheless, measuring pH can give an indication of whether the oil is becoming more acidic over time.
- Procedure: A sample of oil is mixed with an appropriate solvent, and the pH is measured using a standard pH meter or pH indicator paper.
- Advantages: Simple and quick to perform.
- Disadvantages: Not as accurate or as widely used as the TAN method for transformer oil. It may not provide sufficient detail about the exact level of acid content.
3. Titration with Alcoholic KOH
An alternative method to determine acidity is the alcoholic potassium hydroxide (KOH) titration. This method is more suitable for testing oils with high viscosity and provides more precise results, especially when the oil is highly degraded.
- Procedure: Similar to the TAN test, but the titration is done in an alcoholic solution, which makes it suitable for testing oils with high viscosity or those that are highly contaminated.
- Advantages: Provides accurate results for oils with high viscosity.
- Disadvantages: More complex procedure and requires specialized equipment.
| Test Method | Advantages | Disadvantages | Accuracy |
|---|---|---|---|
| TAN Test | Reliable, precise, widely used | Does not differentiate specific acids | High |
| pH Measurement | Quick and simple | Less accurate for transformer oil | Low to Moderate |
| Alcoholic KOH Titration | Accurate for high-viscosity oils | Requires specialized equipment | High |
How is Acidity in Transformer Oil Controlled?
Once acidity has been detected in transformer oil, it is crucial to take steps to control or reduce the acid levels to avoid damage to the transformer. Several methods can be used to manage acidity in transformer oil:
1. Oil Filtration and Regeneration
Oil filtration and regeneration are two commonly used methods to reduce acidity in transformer oil. These processes involve the removal of oxidation products, such as acids, as well as other contaminants like moisture and particulate matter.
- Filtration: The oil is passed through adsorbent filters or molecular sieves to remove contaminants, including acids. Filters designed to remove acids specifically are available for use in transformer maintenance.
- Regeneration: In more advanced cases, oil regeneration systems use processes like vacuum de-gassing and chemical treatment to neutralize acids and restore the oil’s dielectric properties.
2. Replacing the Oil
If the acidity level of the oil is too high and regeneration or filtration is insufficient, it may be necessary to replace the transformer oil entirely. This is typically done when the oil has reached an advanced state of degradation, and further treatment would not restore it to acceptable conditions.
3. Inert Gas Blanket
Some transformers are equipped with an inert gas blanket (e.g., nitrogen) over the oil to prevent oxidation. By maintaining an inert atmosphere, oxygen – which is one of the key factors in oil degradation – is prevented from reacting with the oil and forming acidic compounds.
4. Maintaining Operating Conditions
Operating the transformer within the recommended temperature and load limits can significantly reduce the rate of oil degradation. Excessive heat and overloading accelerate oxidation, which leads to acid formation in the oil.
5. Regular Monitoring and Testing
Regular acidity testing, alongside monitoring of other oil parameters (such as moisture, dielectric strength, and viscosity), is key to maintaining the transformer oil in optimal condition. Early detection of acidity increases the chances of mitigating damage before it becomes too severe.
How Can Transformer Oil Be Maintained and Refined?
Transformer oil plays a crucial role in the operation of power transformers, providing insulation and cooling to prevent overheating and electrical faults. However, over time, transformer oil can degrade due to factors like heat, oxidation, and contamination. To ensure that transformers continue to operate at peak efficiency and avoid costly failures, it is essential to properly maintain and refine the oil. In this article, we will explore various techniques and best practices for maintaining and refining transformer oil.
Why is Transformer Oil Maintenance Important?
Transformer oil is a vital part of the transformer system because it serves two primary functions:
- Insulation: It prevents electrical arcing and ensures that the electrical components are insulated from each other, reducing the risk of short circuits.
- Cooling: Transformer oil helps dissipate the heat generated by the transformer’s electrical load, preventing overheating and damage to the components.
When oil degrades, it can lead to a variety of problems, such as:
- Increased risk of electrical breakdown due to reduced dielectric strength.
- Corrosion of internal transformer components.
- Overheating and reduced cooling capacity, leading to transformer failure.
- Damage to insulation such as paper and cellulose, which can shorten the life of the transformer.
To maintain transformer oil's effectiveness, it is crucial to regularly monitor and refine the oil quality.
What Causes Transformer Oil to Degrade?
Transformer oil degrades over time due to various factors, including:
- Oxidation: When transformer oil reacts with oxygen in the air, it forms acidic compounds and sludge, leading to increased acidity, loss of dielectric strength, and poor cooling.
- Moisture: Water contamination in transformer oil can lead to a reduction in its insulating properties and promote electrical arcing.
- Heat: Excessive operating temperatures accelerate the degradation process, causing oil viscosity to increase, which reduces its ability to cool the transformer effectively.
- Particulates and Gases: The presence of foreign particles and gases can cause electrical faults and reduce the oil’s performance.
To keep transformer oil in top condition, regular maintenance procedures such as oil testing, filtration, and degassing are necessary.
How is Transformer Oil Maintained and Refined?
Transformer oil can be maintained and refined through several methods aimed at improving its quality and extending the life of the transformer. The most common techniques include oil filtration, degassing, dehydration, and oil regeneration.
1. Oil Filtration
Oil filtration is one of the most effective ways to remove contaminants from transformer oil. It involves passing the oil through filtration systems that remove solid particles, gases, and acids from the oil. Oil filtration is typically performed during routine maintenance to prevent buildup of contaminants.
- Methods of Filtration:
- Vacuum Filtration: Uses a vacuum to draw the oil through a filter to remove contaminants.
- Fullers Earth Filtration: Uses a natural mineral called Fuller’s Earth to adsorb contaminants, including acids and moisture, from the oil. This is one of the most common and effective methods of regenerating transformer oil.
| Filtration Method | Advantages | Disadvantages |
|---|---|---|
| Vacuum Filtration | Efficient for removing particulate matter | May not remove dissolved gases and moisture |
| Fuller’s Earth Filtration | Removes acids, moisture, and particulate matter | Requires frequent replenishment of Fuller's Earth |
2. Oil Degassing
Over time, transformer oil can trap gases produced by the transformer’s operation (e.g., carbon monoxide and hydrogen). The presence of these gases in the oil can degrade its insulating properties and lead to the formation of bubbles that reduce the oil’s ability to cool the transformer.
Degassing is a process that removes dissolved gases from the oil by using vacuum or pressure to separate the gases from the liquid.
- Vacuum Degassing: In this process, the oil is placed under a vacuum, causing the gases to bubble out of the oil and be removed.
- Pressure Degassing: This method uses a controlled pressure environment to release the gases from the oil and allow them to escape.
Removing these gases improves the dielectric strength of the oil and helps it function better as an insulator and cooler.
3. Dehydration
Moisture contamination is one of the most common issues with transformer oil. Water in the oil can reduce its dielectric strength, cause corrosion of internal transformer parts, and promote the formation of sludge and acids.
Dehydration is the process of removing water from the oil. Common methods of dehydration include:
- Vacuum Dehydration: Using a vacuum to lower the pressure inside the transformer tank, water is drawn out of the oil and evaporates.
- Use of Silica Gel: Silica gel or other adsorbents can be used to absorb moisture from the oil, which is especially useful for transformers that have not yet been decommissioned.
Dehydration helps ensure that the transformer oil retains its insulating properties and prolongs the life of the transformer.
4. Oil Regeneration
Oil regeneration is an advanced technique used to restore transformer oil to near-new conditions. This process removes not only contaminants but also the oxidation products that cause the oil to degrade.
- Chemical Regeneration: In this process, chemicals such as Fuller’s Earth or other adsorbents are used to remove acidic compounds and regenerate the oil.
- Electrostatic Regeneration: This process uses electrostatic fields to remove free and dissolved water, particulate matter, and acids from the oil.
| Regeneration Method | Advantages | Disadvantages |
|---|---|---|
| Chemical Regeneration | Restores oil’s insulating properties, reduces acidity | Requires the use of chemicals and periodic replenishment |
| Electrostatic Regeneration | Effective for removing moisture and particulate matter | More expensive and requires specialized equipment |
5. Regular Oil Testing
One of the most important aspects of transformer oil maintenance is regular oil testing. By analyzing the oil, utilities can monitor for signs of degradation, contamination, and changes in properties that may indicate the need for filtration, degassing, or regeneration. Some of the most common tests for transformer oil include:
- Dielectric Strength Test: Measures the oil’s ability to resist electrical breakdown.
- Acidity Test: Assesses the level of acidity in the oil, which can indicate the presence of oxidation products.
- Moisture Content Test: Detects water contamination in the oil.
- Furan Analysis: Measures the degradation of cellulose insulation in the transformer.
Preventive Measures to Maintain Oil Quality
In addition to regular maintenance and testing, transformer operators can take several preventive measures to help maintain transformer oil quality:
- Proper Transformer Ventilation: Ensure that transformers are properly ventilated to avoid excessive moisture buildup in the oil.
- Control Operating Temperature: Keep the transformer operating within the recommended temperature range to minimize oxidation and prevent oil degradation.
- Minimize Exposure to Air: Ensure that the transformer’s oil tank is sealed to minimize air exposure, which can accelerate oxidation.
Conclusion
The quality of transformer oil is crucial for the efficient operation and longevity of power transformers. Regular oil testing helps ensure that the oil continues to perform its functions of insulation and cooling effectively, preventing potential transformer failures. Key tests like dielectric strength, moisture content, and acidity help identify oil degradation, contamination, or any risks to transformer performance.
Maintaining transformer oil quality involves regular monitoring, filtration, and, when necessary, oil replacement or refining to restore its properties. By employing oil maintenance techniques and utilizing intelligent monitoring systems, utilities can extend transformer lifespan, improve efficiency, and minimize the risk of unexpected transformer failures, ensuring a more reliable power supply. Regular testing and effective oil maintenance not only enhance operational efficiency but also safeguard against the high costs associated with transformer breakdowns and repairs.
FAQ
Q1: Why is testing transformer oil quality important?
A1: Testing transformer oil quality is essential to ensure the oil remains effective in insulating and cooling the transformer. Poor oil quality can lead to increased risks of failure, overheating, and reduced transformer lifespan. Regular testing helps identify contamination, moisture, and other issues early.
Q2: What are the common tests used to assess transformer oil quality?
A2: Common tests for transformer oil quality include measuring dielectric strength (to evaluate the insulating capability), acidity (to detect oil degradation), moisture content (to prevent insulation breakdown), and the presence of sludge or contaminants. These tests help determine if the oil needs to be replaced or filtered.
Q3: How is transformer oil maintained?
A3: Transformer oil is maintained by regular testing, filtration, and replacement. Filtration systems are used to remove impurities, while degassing and dehydration processes help maintain oil quality. Proper oil maintenance ensures that the transformer continues to operate efficiently and safely.
Q4: How often should transformer oil be tested?
A4: Transformer oil should be tested at least once a year or more frequently if the transformer is operating in harsh conditions. Frequent testing ensures that early signs of contamination, degradation, or moisture buildup are detected before they affect transformer performance.
Q5: What are the signs that transformer oil needs maintenance or replacement?
A5: Signs that transformer oil requires maintenance or replacement include reduced dielectric strength, increased acidity, high moisture levels, or visible sludge and contaminants. If these issues are detected, the oil should be either filtered or replaced to maintain optimal performance.
References
"How to Test Transformer Oil Quality" - https://www.transformertech.com/test-oil-quality - Transformer Tech
"Transformer Oil Filtration and Maintenance" - https://www.electrical4u.com/oil-filtration-transformer-maintenance - Electrical4U
"Why Transformer Oil Testing is Crucial for Transformer Health" - https://www.energycentral.com/c/ee/importance-oil-testing-transformers - Energy Central
"The Basics of Transformer Oil Quality and Maintenance" - https://www.sciencedirect.com/topics/engineering/transformer-oil-maintenance - ScienceDirect
"Effective Maintenance of Transformer Oil" - https://www.pwc.com/maintenance-transformer-oil - PwC
"Comprehensive Guide to Transformer Oil Testing" - https://www.powermag.com/oil-testing-transformers - Power Magazine
"How to Maintain Transformer Oil for Long-term Reliability" - https://www.transformertech.com/oil-maintenance-guide - Transformer Tech
"Oil Contamination in Transformers: Causes and Solutions" - https://www.electricalengineering101.com/oil-contamination - Electrical Engineering 101
