Transformers are integral to the functioning of power transmission and distribution systems. However, like any electrical equipment, transformers are subject to wear and tear over time. To ensure their reliability, longevity, and efficient operation, it is essential to have a well-structured and proactive maintenance plan. A comprehensive maintenance cycle not only helps in early detection of potential faults but also reduces downtime, extends transformer life, and ensures safety. This article will provide insights into how to plan an effective maintenance cycle for transformers, focusing on key tasks, timing, and best practices.
Why Is Regular Transformer Maintenance Crucial for Operational Reliability?
Transformers are the backbone of electrical power systems, ensuring the safe and efficient transmission of electricity across vast distances. However, like any complex piece of equipment, transformers are susceptible to wear and tear over time. To maintain their optimal performance and prevent costly failures, regular transformer maintenance is essential. In this article, we will explore why routine maintenance is not just a good practice but a necessity for ensuring the reliability and longevity of transformers, as well as the overall safety of the power grid.
The Importance of Regular Maintenance for Transformer Reliability
Transformers, whether they are high-voltage or distribution transformers, perform a crucial role in adjusting voltage levels for power transmission. Over time, however, they can develop issues due to various factors like thermal stress, electrical overloads, and environmental conditions. Without proper maintenance, these issues can lead to downtime, equipment failures, and expensive repairs.
1. Prevention of Unexpected Failures
One of the most significant reasons for regular transformer maintenance is to prevent sudden failures that can disrupt power transmission and cause significant operational downtime. Transformers are typically designed to last for decades, but the risk of failure increases if they are not properly maintained. Routine inspections help detect early signs of problems such as:
- Oil degradation or low oil levels
- Bushing wear
- Corrosion of metallic parts
- Internal short circuits or faults
By catching these issues early, maintenance teams can address them before they escalate into larger, more expensive problems.
2. Ensuring Optimal Performance
Transformers are designed to operate within specific temperature ranges and under certain load conditions. Regular maintenance ensures that transformers continue to operate at peak efficiency. This includes:
- Checking and adjusting load levels to prevent overloading
- Maintaining proper cooling systems to avoid overheating
- Ensuring that insulation systems are intact and functioning correctly
Optimal performance not only extends the life of the transformer but also improves the efficiency of the power distribution network, reducing energy losses.
3. Minimizing Environmental Risks
Over time, transformer components such as bushings, gaskets, and insulation materials may degrade, leading to potential leaks of transformer oil. Transformer oil is essential for insulation and cooling, but it is also a hazardous material that can pose environmental risks if spilled. Regular maintenance includes checking for oil leaks, ensuring that all seals are intact, and replacing damaged components before any leaks occur.
In addition, maintenance helps ensure that fire safety systems, such as pressure relief valves and fire-resistant oils, are working as intended, reducing the risk of catastrophic events.
How Regular Maintenance Improves Transformer Lifespan
Transformers are designed to last for a long time, but their lifespan is highly influenced by how well they are maintained. Failure to perform routine maintenance can accelerate wear and tear on vital components, potentially shortening the life of the transformer. By adhering to a strict maintenance schedule, transformer owners can avoid premature replacements and the associated costs.
1. Extending the Life of Critical Components
Several components of the transformer, including insulation materials, oil, and cooling systems, are critical for proper function. These components degrade over time, especially if subjected to high levels of stress (e.g., overheating or overloading). Regular maintenance, such as oil testing, cooling system checks, and insulation inspections, helps to extend the lifespan of these components by detecting and addressing problems before they cause permanent damage.
2. Reducing Repair Costs
The cost of repairing a transformer after a major failure is typically much higher than the cost of performing regular maintenance. A catastrophic failure can involve significant repair or replacement costs, which can be compounded by the cost of service interruptions, especially in power-critical applications.
On the other hand, routine maintenance involves small, incremental repairs and adjustments that are more cost-effective in the long run. By catching small issues early, maintenance teams can prevent major damage that would otherwise result in costly repairs or replacements.
Key Transformer Maintenance Tasks
Routine maintenance tasks are designed to ensure that transformers continue to operate smoothly and efficiently. Some of the most critical maintenance activities include:
1. Oil Sampling and Analysis
The oil used in transformers serves as both an insulating medium and a coolant. Regular oil sampling and analysis are essential for:
- Detecting dissolved gases that indicate potential faults (e.g., overheating or arcing)
- Assessing the oil’s dielectric strength to ensure that it is still an effective insulator
- Monitoring for signs of oil degradation, such as increased acidity or the presence of water, which can affect the transformer’s performance
2. Insulation Inspection
Insulation breakdown is a primary cause of transformer failures. Regular inspections of the insulation system help detect early signs of damage, moisture ingress, or chemical degradation, all of which can impair the transformer's ability to function safely. Inspections should also cover bushings, gaskets, and cooling components.
3. Thermographic Inspections
Thermal imaging is a key tool for detecting hot spots or overheating areas within the transformer, which could indicate electrical faults or poor connections. Thermographic inspections should be part of the regular maintenance schedule, especially for high-voltage or large transformers, as overheating can lead to premature component failure.

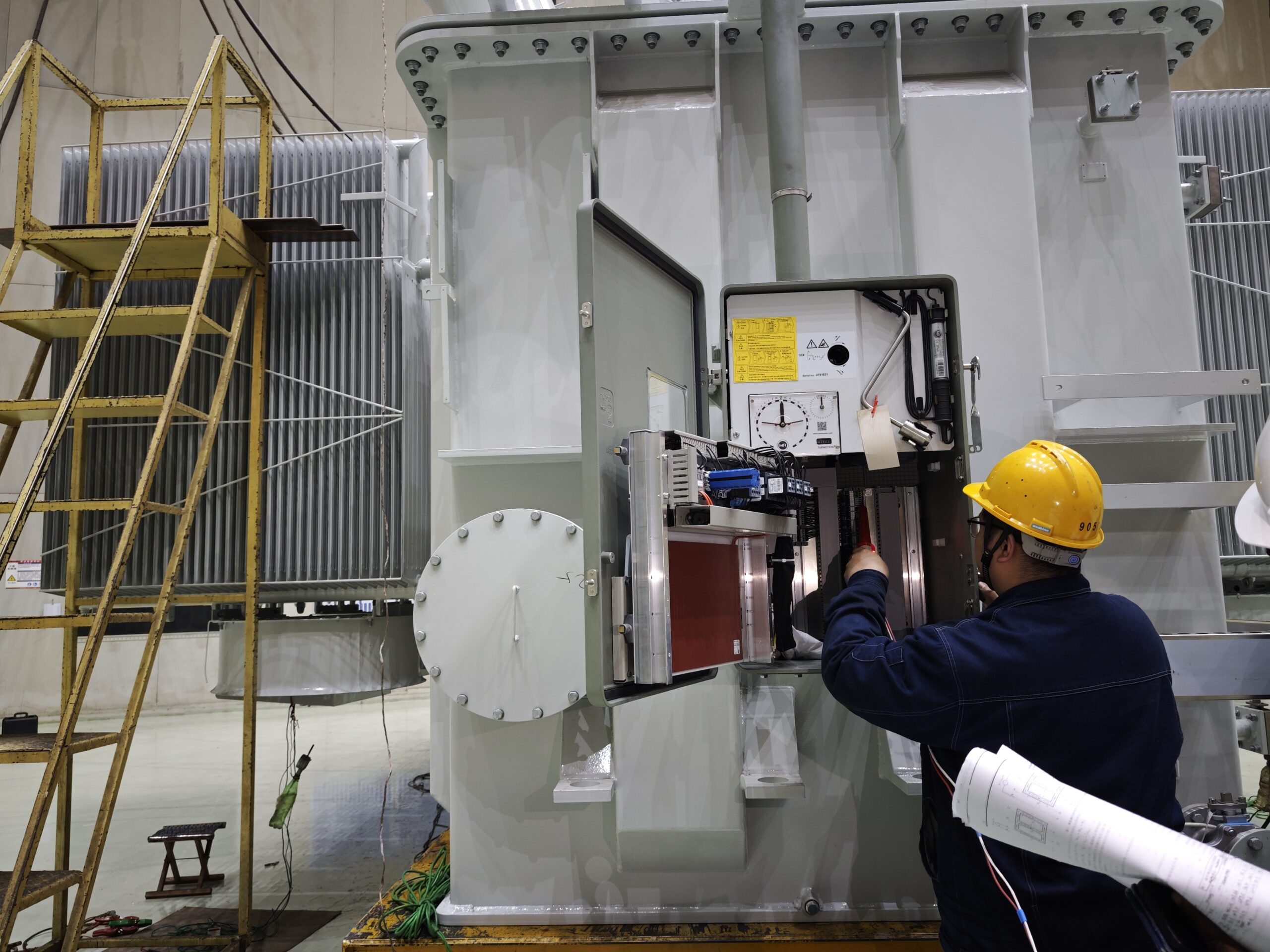

4. Cleaning and Testing of Tap Changers
Tap changers allow the transformer to adjust voltage levels under varying load conditions. Over time, these components can accumulate dust, debris, or contaminants, leading to poor contact or overheating. Regular cleaning, lubrication, and testing of tap changers are essential to ensure their proper operation.
5. Pressure and Cooling System Checks
The cooling system ensures that the transformer remains within its safe operating temperature range. Maintenance teams should inspect and clean the cooling fans, radiators, and cooling fins. Additionally, the oil pressure should be monitored to ensure there are no leaks or pressure drops, which could indicate underlying problems.
Consequences of Neglecting Regular Maintenance
Neglecting regular transformer maintenance can have significant consequences, including:
- Reduced Efficiency: Over time, a lack of maintenance can lead to energy losses due to overheating, poor insulation, or degraded oil quality.
- Unexpected Failures: Transformers that are not properly maintained are more likely to suffer from sudden, catastrophic failures, leading to expensive repairs and service interruptions.
- Environmental and Safety Risks: Faulty transformers may pose fire hazards, and oil leaks can create environmental contamination risks.
- Increased Operational Costs: Poorly maintained transformers are less efficient, leading to higher energy consumption and increased operational costs.
What Are the Key Components to Include in a Transformer Maintenance Plan?
Transformers are crucial for power distribution and energy efficiency, acting as a vital link between power generation and end-users. However, their effectiveness and longevity are highly dependent on proper maintenance. A transformer maintenance plan is essential for ensuring optimal operation, preventing failures, and prolonging the lifespan of these critical assets. Without a well-defined plan, transformers are more susceptible to unexpected faults, costly repairs, and energy inefficiency.
In this article, we will break down the key components of an effective transformer maintenance plan that will help prevent issues and maintain operational reliability. A comprehensive plan ensures that your transformer remains in top condition, ultimately improving the safety, efficiency, and cost-effectiveness of your electrical infrastructure.
The Key Components of a Transformer Maintenance Plan
A well-crafted transformer maintenance plan involves several key components, each designed to address the specific needs of the transformer and ensure its efficient performance. Below are the essential elements to include in any transformer maintenance strategy:
1. Regular Inspection Schedule
The foundation of any transformer maintenance plan is a regular inspection schedule. Inspections allow maintenance teams to check for early signs of wear, degradation, or potential failures. A typical inspection schedule includes:
- Visual Inspections: Inspect the external parts of the transformer for leaks, corrosion, dirt accumulation, or physical damage.
- Internal Inspections: Check the transformer’s bushings, tap changers, and oil levels for signs of wear or degradation. Inspect electrical connections to ensure there are no loose or damaged contacts.
The frequency of inspections will vary based on factors such as the age of the transformer, operating environment, and load conditions. High-risk transformers may require more frequent inspections than newer or less critical units.
2. Oil Testing and Analysis
Transformer oil plays a dual role in providing insulation and cooling. Regular testing of transformer oil is crucial for assessing the health of the transformer. The key oil tests to include in your maintenance plan are:
- Dissolved Gas Analysis (DGA): This test detects gases released by the oil due to faults such as overheating or electrical arcing. A DGA test helps identify the type and severity of faults in their early stages.
- Dielectric Strength Test: The oil’s ability to insulate the transformer depends on its dielectric strength. Regular tests ensure that the oil remains an effective insulator.
- Moisture Content: Excess moisture in transformer oil can lead to the degradation of insulation. Regular checks ensure moisture levels stay within safe limits.
- Acidity and Impurity Tests: Regular tests for impurities and acidity levels help prevent damage to the transformer’s internal components.
By performing oil analysis routinely, maintenance teams can identify issues such as oil degradation, moisture contamination, or gas buildup—all of which could lead to transformer failure if left unaddressed.
3. Thermal Monitoring
Overheating is a common cause of transformer failure. Thermal monitoring involves the use of temperature sensors and infrared thermography to ensure that the transformer is operating within safe temperature limits. Key components for monitoring include:
- Oil Temperature: The oil temperature should be carefully monitored to prevent overheating and ensure proper cooling.
- Winding Temperature: Temperature sensors should be placed near the transformer windings to track their temperature, as high temperatures here can lead to insulation degradation.
- Coolant Efficiency: Check the cooling system, including radiators, fans, and heat exchangers, to ensure that the system is effectively dissipating heat.
By integrating thermal monitoring into your maintenance plan, you can catch potential overheating issues early, preventing damage to vital transformer components and extending its lifespan.
4. Insulation and Bushing Inspections
The insulation system is one of the most critical components in a transformer, and its failure can lead to catastrophic results. Regular maintenance should include:
- Bushing Inspections: Bushings provide insulation between the transformer and external connections. Inspecting the condition of bushings for cracks, wear, or leakage is essential for ensuring that the transformer operates safely.
- Insulation Resistance Tests: These tests help determine the quality of the transformer’s insulation materials, both internally and externally. Low resistance indicates potential deterioration or contamination, requiring corrective action.
- Moisture and Contamination Checks: The presence of moisture or dirt can significantly impair insulation performance. Routine inspections should check for these contaminants, especially in areas prone to environmental exposure.
5. Tap Changer Maintenance
The tap changer allows the transformer to adjust its output voltage under varying load conditions. Tap changers are critical for maintaining stable voltage levels in the power grid, and their failure can cause significant issues. Regular maintenance of tap changers should involve:
- Mechanical Check: Ensure that the tap changer operates smoothly without any sticking, unusual noises, or wear.
- Electrical Tests: Check for proper contact resistance and ensure that electrical connections are free from corrosion or oxidation.
- Lubrication: Tap changers often contain moving parts that need proper lubrication to prevent friction-related damage.
By regularly inspecting and maintaining the tap changer, the transformer can continue to operate efficiently under varying load conditions.
6. Pressure Relief Valve Inspections
Transformers are filled with oil, and under certain conditions (e.g., excessive heating or internal faults), the pressure inside the transformer may increase, posing a risk of explosion. Pressure relief valves are designed to safely release excess pressure and prevent catastrophic failures.
Regular maintenance should include:
- Inspecting the functionality of the pressure relief valve to ensure it opens and closes properly.
- Checking the seal integrity to prevent leaks.
- Testing the venting system to ensure it provides adequate pressure relief when needed.
7. Condition Monitoring and Diagnostic Tools
To ensure the early detection of potential issues, integrate condition monitoring tools into your maintenance plan. These tools can provide real-time data about the health of the transformer and its components, including:
- Vibration Monitoring: Detects abnormal vibrations that could indicate internal issues.
- Partial Discharge Monitoring: Monitors electrical discharges within the transformer, which could lead to insulation breakdown.
- Acoustic Monitoring: Identifies the sound signatures of internal faults like arcing or overheating.
Condition monitoring provides ongoing health assessments of the transformer and allows operators to take predictive actions before an issue escalates into a failure.
8. Maintenance Documentation and Reporting
Documenting all maintenance activities is a crucial part of any transformer maintenance plan. Regularly update records of:
- Inspection reports: Include findings from visual, oil, thermal, and electrical inspections.
- Service history: Track any repairs or component replacements.
- Test results: Keep records of oil analysis, insulation resistance, and condition monitoring data.
Comprehensive maintenance logs not only help track the health of the transformer but also support future troubleshooting and enable compliance with regulatory standards.
How Often Should Transformer Inspections and Tests Be Conducted?
Transformers are crucial components of the electrical power system, ensuring efficient voltage transformation and energy distribution. Given their essential role in maintaining power stability, ensuring their reliable operation is paramount. One of the best ways to safeguard a transformer’s functionality and longevity is through regular inspections and testing. These activities help detect potential faults early, prevent catastrophic failures, and reduce costly repairs. However, the question arises: How often should transformer inspections and tests be conducted?
The frequency of inspections and tests varies based on a number of factors, including the transformer’s age, operating conditions, location, and service environment. Establishing a suitable schedule for inspections is vital to ensure the safety, efficiency, and durability of transformers. In this article, we will explore the general guidelines, factors influencing inspection schedules, and best practices for determining the frequency of transformer tests and inspections.
Frequency of Transformer Inspections and Tests
While there are no one-size-fits-all rules, several industry standards and best practices can help guide the appropriate intervals for transformer maintenance activities. Here’s a breakdown of recommended schedules for different types of inspections and tests:
1. Visual Inspections
Visual inspections are often the first line of defense in identifying potential issues in transformers. These inspections allow engineers to detect external signs of wear, damage, or potential hazards. Key areas to inspect include:
- Oil leaks
- Bushing condition
- Corrosion or rust
- Physical damage to the transformer body
- Debris or dirt accumulation
Recommended Frequency:
- Monthly or quarterly inspections are generally recommended, especially for older transformers or those in harsh environments.
- In high-risk areas (e.g., areas prone to extreme weather or industrial pollution), more frequent monthly inspections may be necessary.
Visual inspections can typically be done by maintenance personnel without taking the transformer offline, which makes them an easy and effective first step in preventing failure.
2. Oil Testing and Analysis
Transformer oil serves as both an insulation medium and a cooling agent. Regular oil testing provides crucial insights into the transformer’s health. Key tests include:
- Dissolved Gas Analysis (DGA): To detect gases formed by electrical discharges, overheating, or insulation breakdown.
- Dielectric Strength Test: To evaluate the oil’s insulating properties.
- Moisture and Acidity Testing: To assess the presence of contaminants or moisture, which can degrade insulation.
Recommended Frequency:
- Annual oil testing is typically recommended for most transformers.
- For critical transformers or those in severe operating conditions, testing every six months may be prudent.
- Oil sample analysis might also be conducted immediately after a fault to understand the extent of the damage.
By performing regular oil analysis, you can predict transformer failures before they happen, preventing catastrophic breakdowns.
3. Insulation Resistance Testing
The insulation system is one of the most crucial parts of a transformer. Over time, insulation can deteriorate due to moisture or thermal aging, leading to potential electrical faults. Insulation resistance tests measure the resistance between windings, bushings, and the core to ensure that the insulation is intact.
Recommended Frequency:
- Every 1 to 3 years, depending on the age and environmental conditions of the transformer.
- For newer transformers with low environmental stress, testing every 3 years might suffice.
- Older transformers or those subjected to high humidity or harsh environments may require more frequent testing, every year or as part of a comprehensive annual inspection.
4. Thermal Monitoring
Overheating is a common cause of transformer damage. High temperatures can lead to insulation degradation, oil breakdown, and the eventual failure of transformer components. Thermal monitoring systems help detect hot spots, enabling early intervention.
Recommended Frequency:
- Continuous monitoring is recommended for critical transformers, especially those in high-load applications.
- For less critical units, annual thermal imaging with infrared cameras may be sufficient to detect temperature anomalies.
- Monthly or quarterly readings can be taken through automated systems if thermal degradation is a concern.
5. Bushing Inspections
Bushings are essential for providing electrical insulation and ensuring that electrical connections remain intact. Failure in the bushings can lead to catastrophic breakdowns. Regular checks on the physical condition and integrity of bushings are vital.
Recommended Frequency:
- At least annually to assess the condition of the bushings.
- In high-risk conditions or with older transformers, checks may need to be bi-annually or every six months.
6. Tap Changer Maintenance
The tap changer allows the transformer to adjust its voltage depending on load conditions. Given the mechanical wear and tear associated with tap changers, they require specific attention.
Recommended Frequency:
- Bi-annual inspections should be conducted to check for mechanical wear, lubrication, and proper operation.
- Routine operational checks may also be performed monthly, depending on transformer usage.
7. Protective Relays and Circuit Breaker Testing
Circuit breakers and protective relays are integral for preventing transformer damage in case of electrical faults. These protective devices need to be tested regularly to ensure they function correctly in the event of an overload or short circuit.
Recommended Frequency:
- Every 6 months to 1 year for routine testing.
- After a fault event, these systems should be tested immediately to verify their functionality.
8. Partial Discharge Testing
Partial discharge (PD) occurs when small electrical discharges occur within the insulation system, potentially leading to its breakdown. PD testing can detect early stages of insulation damage before they escalate into major issues.
Recommended Frequency:
- For critical transformers, annual PD testing is often recommended.
- For transformers with low load or operating in stable conditions, testing may be performed every 2 to 3 years.
9. Pressure Relief Valve Inspections
The pressure relief valve is crucial for maintaining safe operation by releasing excess pressure in the transformer. It is critical for safety during extreme fault conditions, preventing tank rupture or explosion.
Recommended Frequency:
- Every 1 to 2 years to ensure proper operation.
Factors That Influence the Inspection Frequency
While general guidelines exist for transformer inspections, the frequency of testing and inspections can be influenced by various factors, including:
- Transformer Age: Older transformers typically require more frequent inspections as components wear out over time.
- Environmental Conditions: Transformers in high-pollution areas, harsh climates, or humid environments may require more frequent testing.
- Load and Duty Cycle: Transformers that are overloaded or operate at near full capacity for extended periods may need more frequent monitoring.
- Criticality of the Transformer: Transformers that are part of the critical infrastructure or power distribution systems should be inspected more regularly to prevent downtime or failure.
- Operational History: If a transformer has experienced faults or unusual incidents, more frequent testing should be conducted.
What Are the Common Maintenance Tasks for Transformers?
Transformers are critical components in electrical systems, responsible for changing the voltage of electricity to make it suitable for distribution. Given their role in ensuring the smooth functioning of electrical grids, transformer maintenance is vital for preventing system failures, improving reliability, and extending the lifespan of equipment. Regular maintenance helps to identify potential issues early and ensure that the transformer continues to operate efficiently.
In this article, we’ll dive into the common maintenance tasks for transformers and why they are important for ensuring safe, efficient, and long-term operation.
Common Transformer Maintenance Tasks
Transformers operate under challenging conditions and are exposed to a variety of potential issues like overheating, wear and tear, and environmental damage. Regular maintenance is essential to keep them in top working condition. Below are the key maintenance tasks that should be performed on a transformer.
1. Visual Inspections
Visual inspection is the first line of defense in transformer maintenance. It allows engineers to detect any obvious signs of damage or potential issues that could affect the performance of the transformer.
Tasks Include:
- Inspecting the exterior of the transformer for signs of wear, corrosion, or physical damage.
- Checking for oil leaks around gaskets and seals.
- Assessing bushings for cracks or signs of degradation.
- Verifying grounding connections to ensure safety and avoid shock risks.
Frequency:
- Monthly or quarterly visual checks are typically recommended for regular monitoring of external conditions.
2. Oil Inspections and Testing
Transformer oil serves multiple purposes—it acts as both an insulating medium and a coolant. Over time, the oil can degrade due to contamination, moisture, or the presence of dissolved gases. Regular oil inspections and tests help ensure the transformer remains fully operational and safe.
Tasks Include:
- Checking oil levels and topping them up as needed.
- Performing dissolved gas analysis (DGA) to identify internal faults or issues.
- Testing oil quality to measure its dielectric strength, acidity, and moisture content.
- Replacing oil if it shows signs of contamination or degradation.
Frequency:
- Oil tests should be performed at least once a year, or more frequently if the transformer is in a harsh environment or critical application.
3. Insulation Resistance Testing
The insulation system in a transformer is crucial for maintaining the safe operation of the unit by preventing electrical faults and ensuring current flows in the correct paths. Over time, insulation can degrade due to environmental stress, temperature changes, or moisture accumulation.
Tasks Include:
- Measuring insulation resistance between windings and between the windings and ground.
- Identifying any degradation in the insulation material.
- Performing polarity tests to ensure proper directionality and insulation condition.
Frequency:
- Once every 1 to 3 years, or more frequently in older transformers or those in high-stress environments.
4. Bushing Inspections
Bushings are used to provide a safe electrical connection through the transformer tank to external circuits. Because they are exposed to high electrical stresses and environmental factors, regular inspection is essential to ensure their safety and integrity.
Tasks Include:
- Inspecting for cracks or physical damage.
- Checking the seals to prevent moisture ingress.
- Measuring electrical resistance to check for degradation.
- Cleaning bushings to prevent contamination.
Frequency:
- Annual inspections are typically required, especially for critical transformers.
5. Tap Changer Maintenance
The tap changer is responsible for regulating the transformer’s voltage under load by adjusting the turns ratio in the windings. This component undergoes mechanical wear and needs regular maintenance to ensure smooth and reliable operation.
Tasks Include:
- Inspecting the mechanical condition of the tap changer and checking for wear.
- Lubricating moving parts to prevent rust and ensure smooth movement.
- Cleaning the contacts to prevent arcing and wear.
- Checking the position indicators to ensure correct operation.
Frequency:
- Bi-annual inspections are typically recommended for tap changers, with lubrication and cleaning done during these intervals.
6. Thermal Monitoring
Heat is one of the main causes of transformer failure, as excessive temperatures can lead to insulation breakdown and oil degradation. Thermal monitoring allows operators to detect overheating issues early and take corrective action.
Tasks Include:
- Monitoring temperature using temperature sensors placed at key points, including winding, oil, and core.
- Checking for hot spots using thermal imaging or infrared cameras.
- Cleaning the cooling fins to ensure proper heat dissipation.
Frequency:
- Continuous monitoring for critical transformers is ideal, but annual thermal scans or infrared imaging are typically performed to check for potential heat buildup.
7. Pressure Relief Valve Testing
The pressure relief valve (PRV) is a vital component that prevents the transformer tank from exploding under extreme pressure conditions. It is essential to verify that the PRV is functioning properly.
Tasks Include:
- Testing the PRV for proper operation.
- Cleaning and inspecting the valve for corrosion or blockages.
- Verifying the release pressure setting to ensure it meets operational standards.
Frequency:
- Annually, especially in older transformers or those located in high-pressure conditions.
8. Circuit Breaker and Protective Relay Testing
Circuit breakers and protective relays are essential for protecting transformers from faults, such as short circuits or overloads. If these devices fail, the transformer could suffer significant damage. Routine testing is necessary to verify their functionality.
Tasks Include:
- Testing the operation of circuit breakers and relays under simulated fault conditions.
- Calibrating settings to ensure accurate protection thresholds.
- Inspecting contact points for wear and corrosion.
Frequency:
- Annually, or immediately after a fault event to ensure that the protection system is still working as intended.
9. Cleaning and Debris Removal
Dust, dirt, and moisture can accumulate on transformer components and contribute to insulation degradation and overheating. Regular cleaning helps maintain performance and safety.
Tasks Include:
- Cleaning transformer surfaces to prevent dirt accumulation.
- Removing debris from the cooling fins and vents to maintain airflow.
- Wiping down bushings to remove accumulated dust.
Frequency:
- Quarterly or as needed, depending on the operating environment.
Best Practices for Transformer Maintenance
- Create a Detailed Maintenance Plan: Establish a comprehensive maintenance schedule that includes all the critical tasks, their frequency, and specific checklists for each transformer in your system.
- Use Modern Monitoring Tools: Leverage smart sensors, digital temperature monitors, and predictive maintenance tools to detect issues early and perform proactive maintenance.
- Train Maintenance Personnel: Ensure that staff are adequately trained to carry out inspections, testing, and repairs safely and efficiently.
- Document All Findings: Keep detailed records of all inspections, tests, and repairs. This helps track the health of the transformer over time and provides valuable data for predictive maintenance.
- Follow Industry Standards: Adhere to the relevant standards set by organizations like the IEEE or IEC to ensure best practices are followed.
How Can Predictive Maintenance and Monitoring Technologies Optimize Maintenance Cycles?
The growing demand for uninterrupted electrical supply and the increasing complexity of electrical systems have put significant pressure on the reliability and efficiency of power transformers. As transformers are vital to power distribution, their failure can lead to costly downtime, increased operational risks, and significant repair costs. That’s where predictive maintenance (PdM) and monitoring technologies come in. By leveraging these advanced tools, utilities and organizations can optimize maintenance cycles and ensure that transformers continue to function at peak efficiency with minimal interruptions.
In this article, we explore how predictive maintenance and monitoring technologies can play a pivotal role in optimizing transformer maintenance cycles, reducing operational costs, and improving the overall reliability of electrical systems.
What Is Predictive Maintenance?
Predictive maintenance refers to the use of data-driven technologies to predict when a transformer or any other asset will require maintenance or is likely to fail. This approach is based on continuous condition monitoring, which collects data from sensors embedded in the transformer or from its external environment. The key to predictive maintenance is its ability to anticipate issues before they develop into major failures, thus avoiding unplanned outages.
Unlike traditional maintenance practices, which are either reactive (fixing problems after they occur) or preventive (maintaining equipment at scheduled intervals), predictive maintenance allows for more precise, data-backed decisions about when and what type of maintenance is required. By anticipating failures and optimizing service schedules, predictive maintenance can reduce downtime, extend equipment life, and lower overall costs.
How Can Predictive Maintenance Optimize Transformer Maintenance Cycles?
Predictive maintenance utilizes technologies that provide real-time data, early fault detection, and insights into the health of the transformer, helping to optimize the maintenance process in the following ways:
1. Early Fault Detection and Diagnosis
Predictive maintenance uses condition monitoring technologies like vibration sensors, temperature probes, and dissolved gas analysis (DGA) to detect early signs of wear or electrical faults. These systems can identify anomalies such as:
- Overheating due to excessive load or insulation breakdown.
- Dissolved gases in transformer oil, indicating potential faults such as arcing or partial discharges.
- Unusual vibrations suggesting mechanical failure in components like tap changers or bushings.
By detecting these issues early, predictive maintenance can help prevent minor problems from escalating into major, costly failures, enabling operators to schedule maintenance at the most optimal times.
2. Reducing Unnecessary Maintenance
With traditional maintenance approaches, transformers undergo routine inspections based on pre-set schedules, regardless of their actual condition. However, predictive maintenance ensures that maintenance activities are triggered only when necessary, based on real-time data and condition monitoring. This reduces the occurrence of unnecessary inspections and maintenance tasks, which can be both costly and time-consuming.
For example, if a transformer is operating normally and data from sensors indicates that all components are within optimal parameters, there is no need for routine maintenance. This efficiency reduces costs and ensures that maintenance activities are as targeted and effective as possible.
3. Optimizing Resource Allocation
One of the significant advantages of predictive maintenance is its ability to optimize resource allocation. By accurately predicting when and where maintenance will be needed, it allows maintenance teams to prioritize tasks and resources effectively. Instead of deploying personnel and materials for routine maintenance checks on every transformer, resources can be allocated to the transformers that need attention the most, based on real-time conditions.
This helps reduce the overall maintenance costs and prevents the risk of overburdening personnel with unnecessary tasks.
4. Enhancing Transformer Lifespan
Predictive maintenance doesn't just focus on identifying issues when they occur—it also plays a role in improving the longevity of transformers. By constantly monitoring the condition of the transformer and its components, operators can identify wear patterns, degradation, and performance loss over time. Armed with this data, they can perform timely repairs or replacements to extend the life of the transformer, thereby maximizing the return on investment (ROI).
For example, predictive maintenance might identify gradual insulation breakdown, allowing operators to replace parts before they fail completely and potentially cause catastrophic damage.
5. Reducing Downtime and Operational Disruptions
The most apparent benefit of predictive maintenance is its ability to minimize downtime. With real-time data monitoring, operators can schedule repairs during non-peak hours, or plan for system shutdowns in advance. This minimizes disruption to the overall electrical grid and reduces the likelihood of sudden transformer failures, which could result in lengthy outages and costly repairs.
In case of a failure, predictive maintenance technologies can help identify the cause of the fault immediately, allowing for faster repairs and quicker return to operation.
Key Monitoring Technologies That Enable Predictive Maintenance
Various monitoring technologies are central to predictive maintenance systems. These technologies work together to provide real-time insights into the condition of the transformer.
1. Temperature Monitoring Systems
Temperature is a critical factor in transformer health. Overheating can cause insulation breakdown and ultimately lead to transformer failure. Temperature sensors, including RTDs (Resistance Temperature Detectors) and thermocouples, are embedded in various parts of the transformer to provide continuous temperature monitoring. When excessive heat is detected, these sensors can trigger alarms or warnings, allowing maintenance teams to take corrective action before damage occurs.
2. Vibration Sensors
Vibration sensors are used to detect irregular vibrations or abnormal movement within the transformer. Excessive vibration can signal potential mechanical failures, such as issues with the tap changer or bushings. Vibration analysis can help predict wear and tear in critical components, enabling timely maintenance before the problem escalates.
3. Dissolved Gas Analysis (DGA)
As mentioned earlier, DGA is one of the most effective tools in transformer predictive maintenance. It involves analyzing the gases dissolved in the transformer oil. The presence of gases such as hydrogen, methane, and acetylene can indicate faults like electrical arcing, partial discharge, or overheating. By using gas-in-oil analysis, operators can detect transformer issues early and decide on the most appropriate course of action.
4. Partial Discharge Monitoring
Partial discharge is an electrical phenomenon that can indicate insulation deterioration. By using partial discharge (PD) sensors, operators can detect partial discharges within the transformer’s internal components. Monitoring PD levels enables early detection of insulation degradation, allowing repairs or replacements to be made before catastrophic failures occur.
5. Infrared Thermography
Infrared thermography uses infrared cameras to detect heat patterns within the transformer. By scanning the transformer during operation, these cameras can identify hot spots and temperature irregularities that might indicate electrical faults, overheating, or mechanical wear. This non-invasive technique is particularly effective for detecting overheating in components such as bushings, tap changers, and connections.
Benefits of Predictive Maintenance and Monitoring Technologies
- Increased transformer lifespan through proactive care and early identification of potential issues.
- Cost savings by reducing unnecessary maintenance activities and focusing resources on critical repairs.
- Improved safety by reducing the likelihood of catastrophic transformer failures and the associated hazards.
- Optimized operational efficiency, as transformers can be serviced at the most convenient times, without unnecessary downtime.
- Enhanced data-driven decision-making, with access to real-time monitoring data for informed maintenance planning.
How to Establish a Transformer Maintenance Schedule Based on Load and Environmental Conditions?
Transformers are among the most critical components in electrical power systems, converting voltage levels to ensure efficient energy distribution. To maintain transformer reliability, longevity, and efficiency, regular maintenance is paramount. However, creating an effective transformer maintenance schedule requires more than just routine checks. The schedule should be carefully tailored to the load and environmental conditions under which the transformer operates.
In this article, we will discuss how to establish a transformer maintenance schedule based on key factors such as load demands and environmental influences, ensuring maximum reliability, cost-efficiency, and the longevity of your transformer.
Why Is Tailoring Maintenance Schedules Important?
A one-size-fits-all approach to transformer maintenance is not ideal, as it does not account for the specific operational conditions each transformer faces. The load profile and environmental factors—such as temperature fluctuations, humidity, pollution, and geographical location—can greatly impact the health of the transformer.
When maintenance is optimized based on actual conditions, the following benefits are achieved:
- Reduced downtime: Minimizing disruptions to operations.
- Lower costs: Avoiding unnecessary inspections and servicing.
- Extended transformer life: Ensuring early detection of faults and proactive repairs.
- Improved system reliability: Keeping the electrical network running smoothly with minimal risk of transformer failure.
Key Factors Influencing Transformer Maintenance
1. Load Variations and Demand Cycles
The load on a transformer—how much electricity it is required to supply—has a significant impact on its operational health. Load fluctuations or overloading can cause the transformer to overheat, leading to insulation degradation and reduced operational lifespan. Understanding how load impacts transformer performance is essential to setting up an effective maintenance schedule.
- Heavy Load: If the transformer is under heavy load for extended periods, it will experience higher temperatures, increased wear on components, and accelerated aging of the insulation system.
- Light Load: While light loading reduces strain, transformers still require maintenance to ensure that less used components are in optimal condition and do not suffer from lack of circulation, oil degradation, or accumulation of contaminants.
To tailor maintenance schedules based on load:
- Track load cycles throughout the day, month, and year.
- Use load tap changers to adjust the transformer’s output according to varying demands.
- Schedule more frequent checks during peak load periods, as this is when transformers are most stressed.
2. Environmental Conditions
Transformers are exposed to a wide range of environmental conditions that can impact their performance and longevity. These include temperature extremes, humidity levels, and air pollution. Each environmental condition affects different parts of the transformer, including its insulation, cooling system, and electrical components.
- Temperature: Extreme heat or cold can accelerate wear, especially in transformer insulation, which is sensitive to temperature changes.
- Humidity: High humidity levels increase the risk of corrosion and insulation breakdown. The ingress of moisture into the transformer oil can lead to its degradation.
- Pollution: In industrial areas or places with high levels of airborne pollutants (such as sulfur or dust), transformers may require more frequent cleaning and maintenance to prevent contaminants from entering the system.
- Altitude: Higher altitudes can result in lower air pressure, which affects the transformer’s ability to cool down effectively.
To account for environmental conditions:
- Perform insulation resistance tests more frequently in high-humidity or high-temperature areas.
- Monitor transformer oil condition regularly, especially in areas where the oil might degrade faster due to environmental factors.
- Inspect cooling systems more frequently in areas subject to extreme heat, dust, or pollution.
3. Transformer Age and Design
Older transformers or those that have been subject to continuous overloading require more frequent maintenance than newer models. As transformers age, the internal insulation and other components degrade, making them more susceptible to failures.
- Older transformers: Require more comprehensive inspections, including diagnostic testing like dissolved gas analysis (DGA) or infrared thermography to identify developing faults.
- Design and type: The design specifications of transformers, such as cooling methods (air, oil, or dry-type), affect how often maintenance is needed. For example, oil-filled transformers may require periodic oil testing and replacement, while dry-type transformers may require cleaning and insulation checks.
When establishing a maintenance schedule:
- Take transformer age into account, planning for more frequent checks as the transformer ages or when its operational hours increase.
- Review transformer specifications to understand its cooling and insulation requirements, ensuring maintenance is suited to its design.
Steps to Establish a Transformer Maintenance Schedule Based on Load and Environmental Conditions
Step 1: Analyze Load Profile and Operational Data
Begin by collecting data on the transformer’s load profile, including the average load and maximum peak load over different time periods. This can be done using smart meters and load monitoring systems. Look for trends that indicate when the transformer experiences high stress (e.g., peak demand seasons or specific times of day). Data should include:
- Average daily load and max load
- Load variation patterns: Determine if the transformer is regularly under heavy load or is operating at lighter levels most of the time.
Step 2: Assess Environmental Factors
Perform a detailed analysis of the environment in which the transformer is operating:
- Check temperature data for extreme highs or lows.
- Monitor humidity levels through local sensors or meteorological data.
- Inspect for pollutants or dust in the surrounding area and adjust cleaning schedules accordingly.
- If applicable, check for high altitudes, which could affect cooling efficiency.
Step 3: Establish Maintenance Categories Based on Load and Environment
Segment transformers into different categories based on their load and environmental conditions. For example:
- Heavy load, harsh environment: These transformers will require monthly checks, including oil quality testing, insulation resistance testing, and cooling system inspections.
- Moderate load, temperate environment: Quarterly inspections may suffice for these transformers, with a focus on cleaning, routine oil checks, and basic functional testing.
- Light load, optimal environment: These transformers could operate with biannual checks, focusing primarily on visual inspections and ensuring no oil degradation.
Step 4: Use Predictive Maintenance Tools
Integrate predictive maintenance technologies (e.g., DGA, vibration monitoring, thermal imaging, and partial discharge monitoring) to anticipate when the transformer will need maintenance based on real-time data and fault prediction models. These tools help identify early warning signs, such as:
- Overheating or thermal anomalies.
- Gas buildup indicating potential arcing or discharge.
- Mechanical wear or issues with tap changers.
Step 5: Adjust Maintenance Frequency Based on Data Insights
Refine your maintenance schedule over time. As data is collected and analyzed, adjust the frequency of inspections based on:
- Trends in load fluctuations.
- Wear and tear on components.
- The health of the insulation and oil system.
For example, if predictive analytics show that the transformer is consistently operating near its maximum capacity, it may require more frequent oil sampling or cooling system checks.
Conclusion
A well-planned maintenance cycle is crucial for ensuring the optimal performance and extended lifespan of transformers. By establishing a systematic approach to regular inspections, testing, and monitoring, operators can reduce the likelihood of failures, improve energy efficiency, and minimize costly repairs. The integration of modern predictive maintenance technologies enables more precise and data-driven maintenance strategies, ensuring that issues are identified before they become critical. Ultimately, a structured and proactive maintenance cycle helps maintain the reliability of power systems, contributing to a safer and more efficient energy grid.
FAQ
Q1: Why is planning a maintenance cycle for transformers important?
A1: Planning a maintenance cycle for transformers is crucial to ensure they operate efficiently and have a long lifespan. Regular maintenance helps prevent unexpected failures, reduces downtime, and improves the overall reliability of power distribution systems.
Q2: What factors should be considered when planning a transformer maintenance cycle?
A2: Key factors include the transformer’s age, operational hours, load conditions, environmental conditions, and previous maintenance history. It's also important to consider manufacturer recommendations and industry standards for inspection and servicing intervals.
Q3: How often should transformers be inspected and maintained?
A3: Transformer inspection and maintenance schedules typically depend on the type of transformer and its operating conditions. For oil-immersed transformers, annual inspections are recommended, while dry-type transformers may need less frequent servicing. However, regular checks for critical components like insulation, oil levels, and cooling systems are essential.
Q4: What tasks are involved in a transformer maintenance cycle?
A4: A transformer maintenance cycle generally includes visual inspections, testing insulation resistance, checking oil quality, verifying cooling system functionality, cleaning ventilation and cooling fins, and monitoring temperature and load conditions. Preventive tasks such as tightening connections and replacing worn-out components may also be included.
Q5: How can predictive maintenance improve transformer reliability?
A5: Predictive maintenance involves monitoring key transformer parameters, such as temperature, vibration, and oil quality, in real-time. By analyzing this data, you can identify potential failures before they occur, allowing for more precise and timely maintenance actions, thus preventing unplanned downtime and increasing transformer reliability.
References
"How to Plan a Transformer Maintenance Schedule" - https://www.transformertech.com/planning-maintenance - Transformer Tech
"Effective Maintenance Strategies for Power Transformers" - https://www.powermag.com/transformer-maintenance-strategies - Power Magazine
"The Importance of Regular Transformer Inspections" - https://www.electrical4u.com/transformer-maintenance-schedule - Electrical4U
"Creating a Predictive Maintenance Plan for Transformers" - https://www.researchgate.net/transformer-maintenance-predictive - ResearchGate
"Optimizing Transformer Maintenance for Reliability" - https://www.sciencedirect.com/transformer-maintenance-reliability - ScienceDirect
"How to Implement an Effective Transformer Maintenance Cycle" - https://www.smartgridnews.com/transformer-maintenance-cycle - Smart Grid News
"Transformer Maintenance Tips for Maximizing Performance" - https://www.energycentral.com/c/ee/transformer-maintenance-tips - Energy Central
"Understanding the Transformer Maintenance Cycle for Long-Term Efficiency" - https://www.powergrid.com/transformer-maintenance-efficiency - PowerGrid
