Selecting the correct installation location for a transformer is a crucial step in ensuring its optimal performance, safety, and longevity. Whether it’s a large substation transformer or a compact box transformer, the installation environment can significantly affect the transformer’s efficiency, maintenance requirements, and lifespan. Improper placement can lead to overheating, safety hazards, and operational issues that may result in costly repairs or downtime. In this article, we will outline the key considerations for choosing the ideal installation site for a transformer, focusing on safety, environmental factors, and operational efficiency.
Why Is Location Selection Crucial for Transformer Performance?
When it comes to the performance and longevity of transformers, location selection plays a pivotal role. Transformers, as essential components in electrical distribution systems, need to be installed in environments that support their optimal functioning. The wrong location can lead to operational inefficiencies, safety hazards, and even catastrophic failures. Hence, understanding the various factors that influence transformer performance based on their installation site is crucial.
This article will delve into the importance of choosing the right location for transformer installations, the various factors to consider, and how this decision directly impacts the transformer's efficiency, safety, maintenance, and longevity.
1. Environmental Conditions: Temperature and Humidity
One of the most critical aspects of transformer location selection is understanding the environmental conditions in which the transformer will operate. Factors such as ambient temperature, humidity levels, and pollution can all have a significant impact on transformer performance.
-
Temperature: High temperatures can increase the risk of overheating and may reduce the insulation life inside transformers. Installations in hot or poorly ventilated environments may cause the transformer to operate less efficiently, leading to shortened operational life. On the other hand, extremely cold temperatures can cause materials inside the transformer to become brittle, compromising their reliability.
-
Humidity: Transformers are vulnerable to moisture, which can cause internal corrosion and insulation degradation. In areas with high humidity or frequent rainfall, it is essential to ensure proper enclosures and sealing to prevent moisture ingress.
Proper ventilation and temperature regulation are vital for ensuring that transformers operate within safe limits, preventing overheating and extending their lifespan.
2. Accessibility for Maintenance and Repairs
The ease of access to the transformer is another critical consideration when selecting its location. Transformers require regular maintenance to ensure optimal performance, and if they are installed in locations that are difficult to access, this can hinder timely repairs and maintenance activities.
-
Accessibility: A transformer should be installed in a spacious area that allows for proper access to all sides of the unit. For instance, in the case of oil-filled transformers, the location should allow for easy inspection and oil changes. If the transformer is buried underground or installed in a hard-to-reach area, repair and inspection activities could be delayed, leading to potential failures.
-
Clearance for Repairs: The area should provide ample space for workers to safely perform routine inspections and emergency repairs. In addition, the installation of cranes or lifting equipment might be necessary for larger transformers to remove and replace parts during servicing.
Accessibility ensures that maintenance schedules are adhered to, keeping the transformer running efficiently and reducing downtime.
3. Proximity to Load Centers and Power Sources
Transformers are used to step up or step down voltage for distribution purposes. Therefore, location relative to load centers (areas where electrical power is needed) and power sources (such as generators or substations) is crucial for ensuring optimal efficiency and reliable power distribution.
-
Distance to Load Centers: The further a transformer is from the load center, the more power loss occurs during transmission. Transmission losses increase with the distance electricity has to travel, so placing the transformer closer to the end-user can minimize these losses, improving efficiency.
-
Proximity to Power Sources: Transformers should be installed in areas where they are close to the power source (such as the substation or the generator). This minimizes transmission line losses, helping ensure that power can be efficiently delivered to the areas that need it.
By strategically positioning transformers close to both power sources and load centers, efficiency can be maximized, and energy wastage reduced.
4. Safety and Risk Mitigation
Transformer locations must be carefully chosen to reduce safety risks associated with their operation. Improper placement can lead to a variety of potential hazards, including fires, explosions, and electric shock.
-
Fire Risks: Transformers, especially oil-filled transformers, carry the risk of fire in case of malfunction or failure. Therefore, they should not be installed near flammable materials or in high-traffic areas where accidental damage could lead to severe safety issues. It is also essential to maintain a fire safety zone around transformers, equipped with necessary safety systems such as fire extinguishers or fire suppression systems.
-
Electrical Hazards: Ensuring that transformers are installed in areas where they are not easily accessible to unauthorized individuals reduces the risk of electrical accidents or electrocution. Fencing and safety barriers should be employed around the transformer installation to protect workers and the public.
Safety measures such as proper installation practices, protective equipment, and emergency protocols are necessary for minimizing risks associated with transformer operation.
5. Noise and Vibration Control
Transformers, particularly large ones, can generate significant noise and vibration during operation. These can be disruptive in residential or commercial areas and can cause potential wear and tear on nearby equipment if not properly managed.
-
Noise Levels: Transformer noise is typically generated from the magnetic core, windings, and cooling systems. High-voltage transformers, especially large industrial ones, can emit low-frequency hums that can be disturbing in residential areas. To mitigate this, transformers should be located in soundproof enclosures or in areas where the noise will have minimal impact on the surrounding environment.
-
Vibration: Vibration caused by the transformer can affect the surrounding infrastructure or nearby equipment. Proper vibration dampening systems and structural isolation can help minimize these effects.
In areas where noise and vibration may cause significant disturbance or damage, special care should be taken to shield the transformer from these impacts.
6. Environmental Impact and Regulations
Transformers can have a significant impact on the surrounding environment, particularly if they are not properly installed or maintained. Environmental regulations may also influence where transformers can be installed, as local governments and municipalities often have specific guidelines for electrical equipment placement to protect the environment.
-
Ecological Sensitivity: Transformers should be installed in locations that do not disturb the local ecosystem. For instance, they should not be installed near wetlands, forests, or areas with endangered species. It is essential to consider the environmental footprint of transformer installation to ensure minimal disruption to the natural surroundings.
-
Compliance with Regulations: Different regions have regulations governing the installation of electrical equipment, including transformers. These regulations may involve zoning restrictions, safety standards, and environmental protection laws. Ensuring that transformer installations comply with these guidelines is vital for preventing legal issues and ensuring safe operations.
7. Protection from External Damage
The location of a transformer should protect it from external factors that could lead to its damage or failure. External factors such as flooding, earthquakes, or heavy storms can compromise transformer performance.
-
Flooding: Transformers should not be installed in areas that are prone to flooding. Elevated platforms or flood barriers can be used in flood-prone areas to ensure that the transformer is protected during heavy rain or storms.
-
Seismic Activity: In earthquake-prone regions, transformers need to be securely anchored to the ground to prevent damage or displacement during seismic events.
Protecting transformers from these external threats ensures that their operations are not disrupted by unexpected environmental conditions.
What Are the Environmental Factors to Consider When Installing a Transformer?
When installing a transformer, the environmental factors play a critical role in determining the overall performance, safety, and longevity of the equipment. Transformers, as vital components in power distribution systems, operate in a variety of settings—from industrial zones to remote areas. However, certain environmental considerations must be taken into account to ensure the transformer functions optimally and remains reliable over time. Failure to address these factors can lead to increased maintenance costs, operational inefficiencies, and even premature transformer failure.
This article will explore the key environmental factors to consider when installing a transformer, emphasizing the importance of a carefully chosen site for the transformer's successful operation and durability.
1. Temperature and Climate Conditions
The ambient temperature in the area where a transformer is installed plays a crucial role in determining its operational efficiency and lifespan. Extreme temperatures, whether hot or cold, can cause insulation degradation, overheating, or condensation inside the transformer, all of which can shorten its useful life.
-
High Temperatures: Excessive heat can cause the oil or insulation inside the transformer to break down faster, reducing the efficiency of the unit. In regions with high temperatures, it’s important to ensure proper ventilation and cooling systems are in place to prevent overheating. Otherwise, the transformer could experience thermal stresses, leading to failure or damage over time.
-
Cold Temperatures: In colder climates, extreme cold can cause insulation to become brittle, while oil may become too viscous to flow properly. Special considerations such as heaters or insulated enclosures may be required to keep transformers in optimal operating conditions during freezing temperatures.
-
Humidity and Precipitation: High levels of humidity can lead to moisture accumulation inside the transformer, promoting corrosion and causing the insulation to lose its effectiveness. Areas prone to rain or snow need proper sealing and waterproof enclosures to protect the equipment from water ingress.
2. Proximity to Water Sources
Water can have a significant impact on transformer performance, especially if a transformer is located too close to rivers, lakes, or areas prone to flooding.
-
Flooding Risk: Flood-prone areas pose a serious threat to the transformer. If water levels rise around the transformer, it can lead to oil contamination, short circuits, and even electrical fires. Transformers should be installed on elevated platforms or in flood-resistant enclosures to ensure they are protected in case of a flood.
-
Water Quality: Water from natural sources, such as rivers or lakes, may contain impurities that could affect the transformer’s cooling system, especially in the case of oil-filled transformers. Water can enter through poorly sealed access points, leading to deterioration of insulation and contamination of the cooling medium.
-
Moisture and Condensation: Even if the transformer is not in a flood-prone area, the humidity near water bodies can cause condensation to form inside the transformer, which can damage internal components. Therefore, dehumidification systems or moisture barriers may be necessary.
3. Air Quality and Pollution
The air quality in the area surrounding the transformer can have an impact on its internal components, particularly if there are high levels of dust, pollution, or chemical exposure.
-
Dust and Particles: High levels of dust or airborne particles can enter the transformer, especially in outdoor installations, and cause abrasion or corrosion of internal components. In regions where dust levels are high (such as near construction sites or in desert climates), the transformer must be installed in a sealed or protected enclosure.
-
Pollution and Chemicals: In industrial or urban areas, pollutants such as sulfur dioxide (SO2), nitrogen oxides (NOx), and other harmful gases can accelerate the degradation of the transformer’s insulation and components. Special corrosion-resistant materials or protective coatings may be needed to mitigate these risks.
4. Soil Conditions and Ground Stability
The soil type and ground stability at the installation site are key considerations for ensuring the transformer’s structural integrity.
-

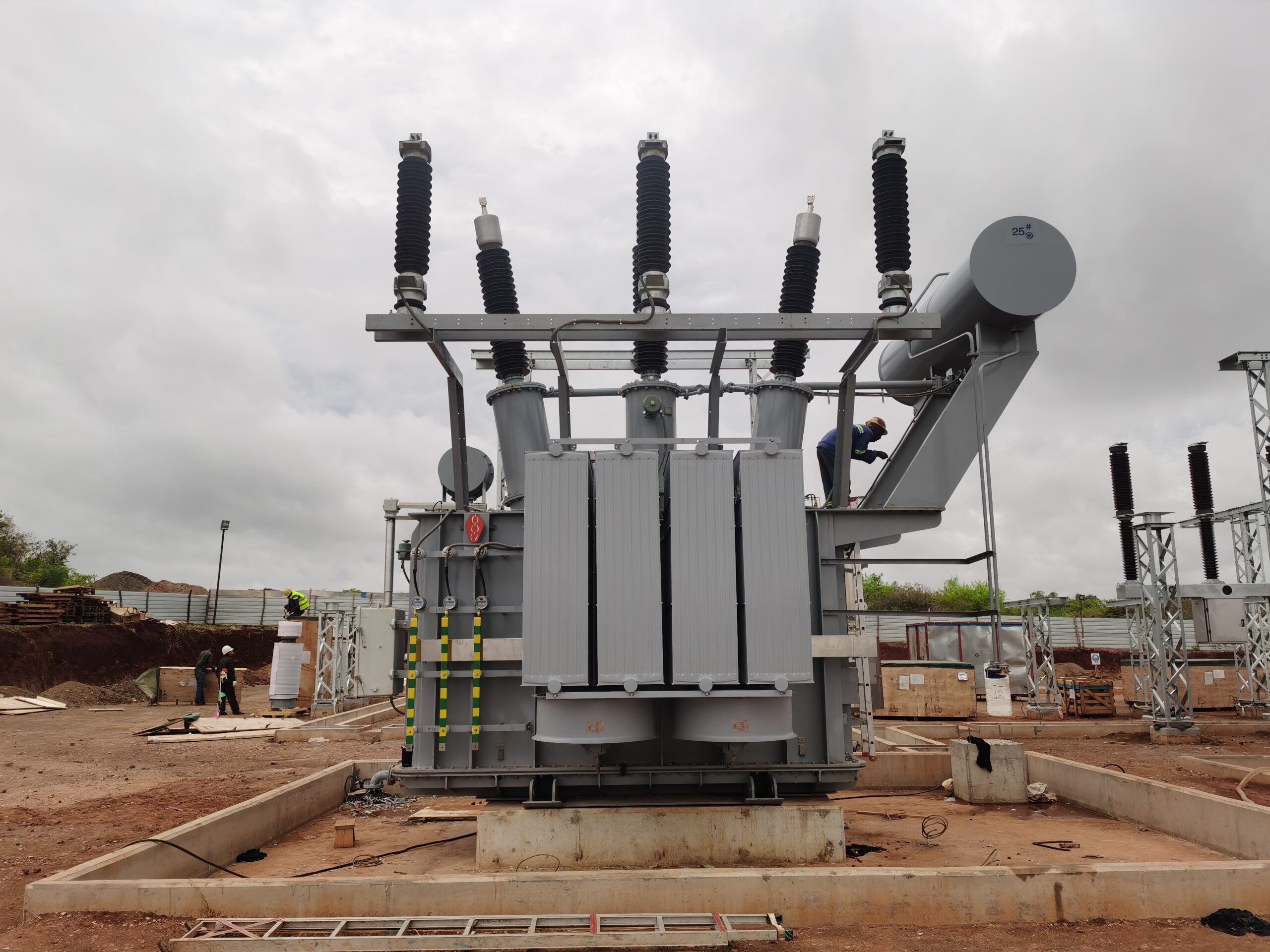

Ground Stability: Transformers are heavy pieces of equipment, and the foundation or base upon which they are installed must be stable and capable of supporting the weight. In areas with unstable soil, such as swampy or shifting grounds, additional reinforcement may be required. Ensuring that the ground is level and firm is essential to prevent any settling or tilting of the transformer.
-
Soil Composition: The chemical composition of the soil can also impact the transformer’s safety and longevity. Highly acidic or alkaline soils may cause corrosion of metal components. Additionally, soil that retains high amounts of moisture can increase the risk of electrical faults or short circuits.
5. Proximity to Hazardous Areas
Transformers must be installed in locations that minimize the risk of damage due to external hazards. Ensuring the transformer is not placed in areas that are vulnerable to accidental impacts, fire, or extreme weather conditions is essential for its safety.
-
Fire Risk: Transformers, particularly those that are oil-filled, can pose a fire hazard if improperly maintained or if they are exposed to extreme conditions. Transformers should not be installed near flammable materials, and fire suppression systems should be in place if the location is susceptible to fires.
-
Accidental Damage: Locations with high traffic, such as near roadways or in areas where large vehicles might pass, increase the risk of accidental damage to the transformer. Installing transformers in secure, fenced-off areas reduces the risk of external damage.
6. Noise and Vibration Considerations
Transformers, especially large ones, generate noise and vibration during operation. These can affect both the environment and nearby facilities.
-
Noise Pollution: Transformers generate a hum caused by the vibration of the magnetic field. In residential areas or locations sensitive to noise, the hum can be disturbing. It’s important to install transformers in areas where noise won’t affect nearby communities. Noise barriers or soundproof enclosures can be used in areas where noise is a concern.
-
Vibration: Vibration from transformers can lead to wear and tear on nearby structures. In sensitive areas, especially those housing delicate equipment, the transformer’s location should minimize these effects. Proper vibration damping systems can be incorporated to prevent these issues.
7. Compliance with Environmental Regulations
Every region or country has its own set of environmental regulations that govern transformer installations. These regulations can include restrictions on placement near water sources, the use of environmentally friendly materials, and other aspects of sustainability.
-
Zoning Laws: Local zoning laws may dictate where transformers can be installed. Certain areas may be restricted due to environmental concerns, such as wetlands or protected wildlife habitats. Understanding these regulations is crucial before installation to avoid legal complications.
-
Environmental Impact Assessments: In some jurisdictions, an environmental impact assessment (EIA) may be required before installing a transformer, especially in ecologically sensitive areas. This ensures that the transformer’s installation won’t negatively impact the surrounding environment.
8. Accessibility for Maintenance and Repairs
The transformer’s location should allow for easy access to facilitate routine inspections, maintenance, and emergency repairs. A well-chosen site makes it easier for technicians to perform the necessary work, reducing downtime and improving transformer reliability.
-
Access Roads: Ensure that roads or paths are accessible for maintenance vehicles, especially for larger transformers that require cranes or heavy equipment for repairs.
-
Space for Equipment: The installation area should provide sufficient space to accommodate any tools, spare parts, and personnel required for ongoing maintenance and emergency interventions.
How Does Proximity to Load Centers Affect Transformer Efficiency?
The efficiency of a transformer is not only determined by its design, materials, and operational conditions but also by its location relative to load centers. A load center refers to the area or point of electrical demand, such as a residential neighborhood, industrial complex, or commercial district. The closer a transformer is to these high-demand areas, the more efficiently it can deliver power, reducing energy losses and improving the overall performance of the electrical system.
This article explores the impact of proximity to load centers on transformer efficiency, looking at the key reasons why placement near load centers is beneficial and how it can optimize power delivery.
1. Reduced Transmission Losses
The distance between the transformer and the load center plays a critical role in the overall energy efficiency of the power distribution system. The further the transformer is from the load center, the higher the transmission losses that occur as electricity travels along power lines.
- Transmission Losses: Electricity is transmitted through conductors, such as high-voltage lines, and the longer the distance between the transformer and the end user, the more energy is lost in the form of heat due to the resistance of the wires. This is known as line loss.
- Proximity Benefits: By installing a transformer closer to the load center, the distance the electricity needs to travel is shortened, which directly reduces resistive losses. The result is more energy reaching the intended destination with minimal loss.
Reducing transmission losses is essential not only for improving efficiency but also for lowering operational costs and reducing carbon emissions, as less energy is wasted in the form of heat.
2. Improved Voltage Regulation
Another significant impact of transformer proximity to load centers is its effect on voltage regulation. Voltage regulation refers to the ability of the transformer to maintain a stable output voltage despite variations in the load.
-
Voltage Drop: When electricity travels over long distances, the voltage tends to drop, particularly under higher loads. This phenomenon, called voltage drop, occurs because of the resistance in the transmission lines. As a result, the farther a transformer is from the load center, the greater the risk of voltage fluctuations at the end user.
-
Proximity to Load: When a transformer is located closer to the load center, the voltage drop is minimized, which leads to better voltage stability. This is crucial in applications that require a consistent voltage supply, such as industrial machinery, commercial equipment, and sensitive electronics.
Maintaining consistent voltage improves the performance of electrical devices and prevents damage caused by voltage surges or dips, thereby enhancing system reliability.
3. Optimal Transformer Sizing and Reduced Overload Risks
When a transformer is located close to the load center, it becomes easier to appropriately size the transformer to meet the demand of the local area. Proper sizing ensures that the transformer operates within its design capacity, avoiding overloading and optimizing its efficiency.
-
Transformer Overload: Transformers that are underloaded or overloaded may suffer from inefficiency and higher operational stress. If a transformer is too large for the demand, it may operate at lower efficiency levels, wasting energy. On the other hand, if the transformer is too small, it could become overloaded, causing overheating and potential damage to the equipment.
-
Location Benefits: Proximity to load centers helps electrical engineers accurately match the transformer size to the area’s expected demand. This results in better load distribution, fewer overload situations, and a more balanced and efficient operation.
4. Reduced Reactive Power Losses
Another benefit of placing transformers close to load centers is the reduction in reactive power losses. Reactive power is power that oscillates back and forth between the source and load, but does not perform any useful work (it is necessary for creating magnetic fields in motors and transformers but does not directly contribute to the energy delivered to the load).
-
Impact of Distance: The longer the distance between the transformer and the load center, the more reactive power is lost due to inductive reactance of the transmission lines. This leads to inefficiencies in the system and the need for compensatory measures, such as capacitor banks or synchronous condensers.
-
Closer Proximity: When transformers are placed closer to the load center, the overall reactive power losses are minimized. This results in lower power factor correction costs and more efficient energy distribution.
By reducing reactive power losses, the transformer is able to operate with higher efficiency, contributing to overall grid stability and reducing the need for additional power generation.

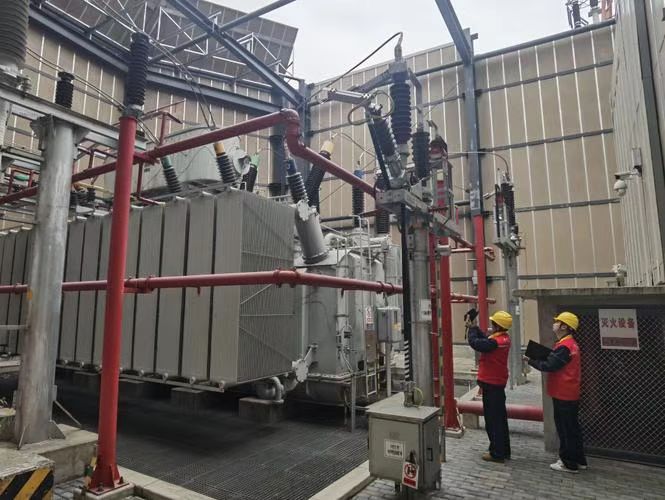

5. Enhanced Maintenance and Monitoring
When a transformer is located close to its load center, it becomes easier to implement regular maintenance and monitoring protocols, ensuring that the transformer remains in peak operating condition.
-
Routine Inspections: Transformers placed near load centers are generally more accessible for inspections, repairs, and upgrades. This reduces downtime and ensures that the transformer operates efficiently over its lifetime.
-
Quick Response to Failures: In the case of any faults or issues with the transformer, proximity to the load center allows for a quicker response time to troubleshoot and resolve the issue, minimizing disruptions to the power supply.
Easy access to transformers is essential for maintaining optimal performance and efficiency, as well as ensuring reliable service to the surrounding area.
6. Optimized Distribution System Design
Proximity to load centers also affects the design and optimization of the overall distribution system. When transformers are placed near the demand centers, the distribution network can be more compact and direct, which reduces the complexity and costs associated with long-distance transmission and distribution.
-
Simpler Grid Design: With transformers placed near the load, there is less need for complex or extensive substation infrastructure and long-distance transmission lines, making the grid design more efficient and cost-effective.
-
Energy Loss Minimization: A more direct distribution network reduces the possibility of losses across multiple stages of transmission, leading to a more streamlined and efficient energy delivery process.
By optimizing the distribution system, the overall system reliability and efficiency improve, reducing costs and energy wastage.
7. Cost Savings and Environmental Impact
The proximity of transformers to load centers can also result in both cost savings and environmental benefits.
-
Cost Savings: With reduced transmission losses and a more efficient transformer system, the energy costs for consumers and utilities alike can decrease. Additionally, less infrastructure is required for long-distance transmission, lowering capital costs.
-
Environmental Benefits: By minimizing energy losses, the overall carbon footprint of the electrical system is reduced. This contributes to the greening of the power grid, which is essential in the context of global sustainability goals.
What Are the Safety Considerations for Transformer Installation Locations?
Choosing the right installation location for a transformer is not just about maximizing efficiency or reducing energy losses—it is equally about ensuring safety. Transformers, whether oil-filled or oil-free, operate at high voltages and handle substantial electrical loads, making them inherently hazardous if not properly installed. Safety considerations must be prioritized from the initial site selection phase to avoid risks like fire, electrical shock, environmental contamination, and structural damage.
This article provides an in-depth exploration of the key safety considerations when selecting and preparing transformer installation locations, ensuring safe, reliable, and compliant operation.
1. Physical Protection and Secure Enclosures
A transformer must be physically protected to prevent unauthorized access, accidental contact, or deliberate tampering.

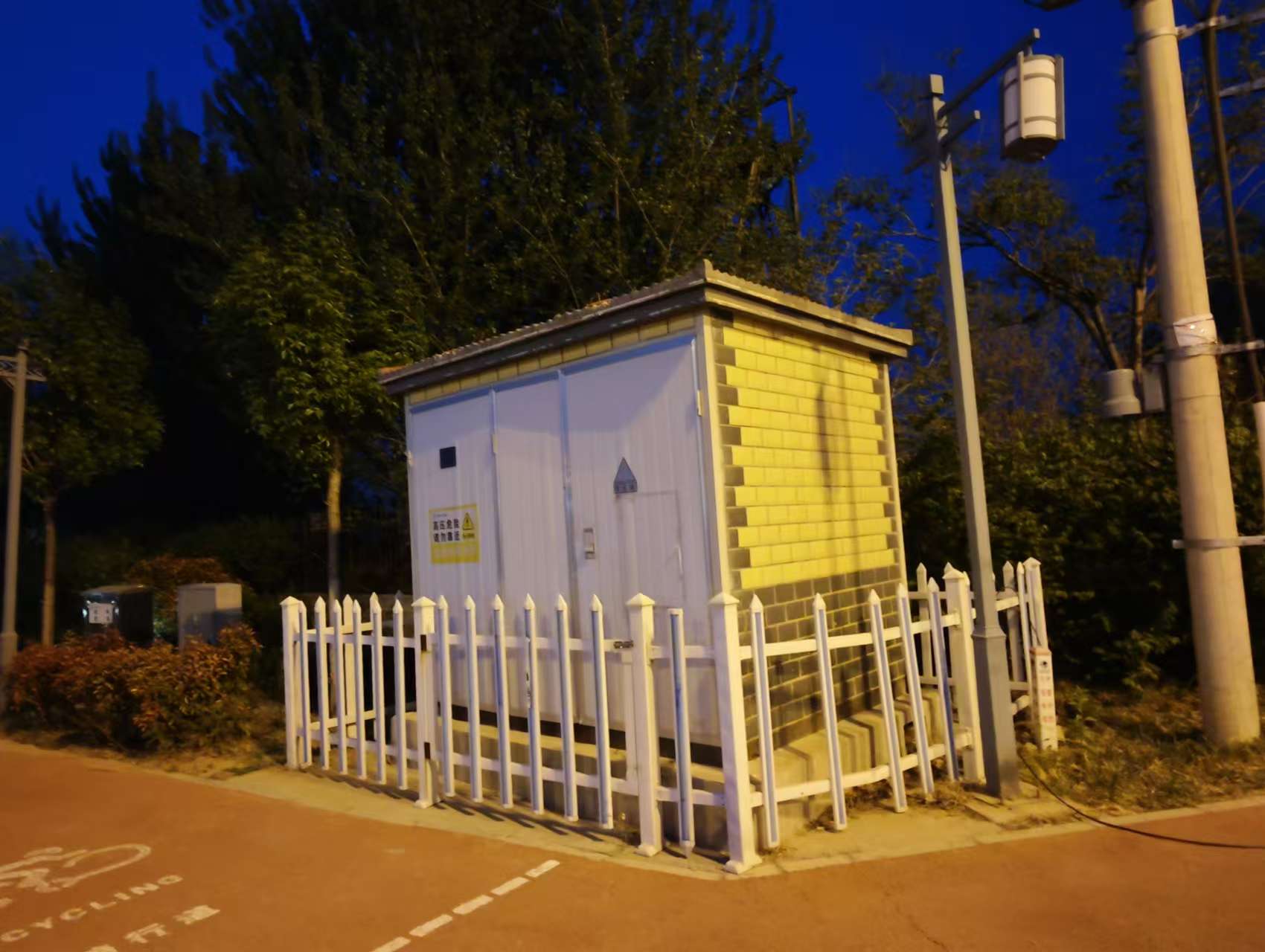

- Fencing and Barriers: Transformers, especially outdoor units, must be surrounded by high-security fencing or barriers to restrict access. The fence should be sturdy, made of non-conductive materials, and typically at least 2.5 meters (8 feet) high with locked gates.
- Signage and Warnings: Clear warning signs must be posted on fences and enclosures to alert individuals to the dangers of high voltage.
- Enclosure Ratings: Transformers installed indoors or in harsh environments should be housed within NEMA or IP-rated enclosures to protect against dust, moisture, and physical damage.
Proper enclosures help prevent unauthorized access, reduce the risk of accidents, and protect the equipment from environmental elements.
2. Fire Protection and Explosion Risk Management
Transformers, particularly oil-immersed models, can pose a fire hazard if internal faults or external damage occur. Therefore, fire safety measures must be integral to the installation planning.
- Fire Separation Distances: Transformers should be placed at safe distances from buildings, critical infrastructure, and combustible materials. Typically, fire separation distances depend on the transformer's size and local regulations but are often 3 to 5 meters or more.
- Firewalls and Barriers: In high-risk areas, installation of non-combustible firewalls between transformers and adjacent structures is recommended to contain potential fires.
- Fire Suppression Systems: Facilities may include automatic fire suppression such as sprinklers, deluge systems, or foam systems designed specifically for transformers.
- Oil Spill Containment: For oil-filled transformers, it’s vital to install oil containment pits or bunds to prevent fire escalation due to oil leaks.
Fire protection planning minimizes damage in case of faults and ensures faster recovery times after incidents.
3. Proper Grounding and Earthing Systems
Grounding and earthing are critical for transformer safety, protecting both equipment and personnel by directing fault currents safely into the earth.
- Effective Grounding Grid: The transformer should be connected to a dedicated grounding system that meets local electrical codes (e.g., IEEE 80 or IEC 61936 standards). A low-resistance ground path is crucial to quickly dissipate fault currents.
- Equipotential Bonding: All metallic parts, enclosures, and nearby structures should be equipotentially bonded to prevent dangerous touch voltages during fault conditions.
- Surge Protection: Lightning arresters and surge protection devices should be installed to prevent damage from lightning strikes or switching surges.
Good grounding protects both people and equipment from the dangers of electrical shock, equipment damage, and arc flash events.
4. Environmental and Weather-Related Safety
Environmental factors like floods, storms, and seismic activity can compromise transformer safety if not properly accounted for.
- Flood Protection: Avoid installing transformers in flood-prone areas. If unavoidable, mount the transformer on elevated platforms or berms to prevent water ingress.
- Seismic Considerations: In earthquake-prone zones, transformers should be installed on seismically-rated foundations that can withstand expected ground movement.
- Wind and Storm Resistance: Installations in areas prone to hurricanes or strong winds must ensure that the transformer is properly anchored and protected against wind-driven debris.
Environmental safety ensures the transformer's operational integrity during natural disasters, preventing widespread outages and potential hazards.
5. Clearances and Accessibility for Maintenance
Providing adequate space around transformers is essential for both safety and maintenance operations.
- Working Clearances: National electrical standards (such as NEC, IEC, or IEEE) specify minimum clearance distances around live parts. Clearances allow maintenance personnel to work safely without coming into contact with energized components.
- Equipment Handling Access: Transformers should be positioned to allow easy access for cranes, forklifts, or maintenance vehicles needed for inspections, repairs, or replacements.
- Emergency Exits: For indoor installations, multiple clear exit routes must be planned around the transformer room to allow for safe evacuation during emergencies.
Designing for safe accessibility ensures both routine maintenance and emergency repairs can be conducted efficiently and safely.
6. Ventilation and Thermal Safety
Heat is a by-product of transformer operation. Improper ventilation can lead to thermal buildup, posing a significant fire hazard and reducing transformer life.
- Natural or Forced Ventilation: Transformer rooms must have sufficient ventilation to dissipate heat. In cases where natural airflow is insufficient, forced air ventilation systems must be installed.
- Temperature Monitoring: Installation of temperature sensors or thermal relays helps detect overheating conditions early, enabling preventive maintenance.
- Ambient Temperature Management: Transformers should be installed in environments where ambient temperatures stay within the operating range specified by the manufacturer.
Good ventilation and thermal management prevent overheating, oil degradation, and fire hazards.
7. Proximity to Other Critical Infrastructure
Transformers must not be located too close to other critical infrastructure unless adequate protection measures are taken.
- Safe Distance from Structures: Transformers should maintain safe distances from buildings, data centers, chemical plants, or water treatment facilities.
- Barrier Installations: When close proximity cannot be avoided, barrier walls, blast walls, or fire-resistant partitions should be constructed to isolate the transformer from sensitive areas.
- Minimizing Cascading Failures: Good layout planning helps prevent one transformer’s failure from affecting adjacent critical systems.
Proximity planning is crucial for resilient system design and risk mitigation.
8. Compliance with Standards and Regulations
Compliance with international, national, and local standards ensures that the installation meets safety, reliability, and environmental benchmarks.
- Relevant Standards: Compliance with IEEE, IEC, NFPA, and OSHA guidelines is essential for safe transformer installation.
- Local Codes and Permits: Local building codes and electrical regulations must be followed. Installations often require official permits and inspections before energization.
Strict adherence to regulatory standards prevents legal issues and ensures best practices are followed for transformer safety.
How Does Accessibility and Maintenance Impact Transformer Location?
When planning a transformer installation, one of the most critical yet sometimes overlooked aspects is accessibility for maintenance. The transformer's location should not only optimize performance but also allow for easy, safe, and efficient maintenance and repair operations throughout its service life. Poor accessibility can lead to delayed inspections, costly repairs, increased downtime, and even severe safety risks for maintenance personnel.
In this article, we’ll discuss why accessibility and maintenance considerations are essential when selecting a transformer location, and how proper planning can dramatically improve transformer reliability, serviceability, and operational safety.
1. Importance of Routine Maintenance
Transformers require regular maintenance to operate efficiently and reliably. Key maintenance activities include:
- Visual inspections for oil leaks, physical damage, and signs of overheating.
- Testing insulation resistance, oil quality, and temperature sensors.
- Cleaning bushings, cooling fins, and enclosures.
- Replacing components such as gaskets, breather units, or surge arresters.
When transformers are placed in hard-to-reach locations, performing these essential tasks becomes more complicated, leading to:
- Missed inspections, increasing the risk of undetected faults.
- Higher maintenance costs, due to special equipment or longer work times.
- Increased downtime, as repairs take longer to coordinate and complete.
- Safety risks, if technicians must operate in confined, hazardous, or poorly ventilated spaces.
Ensuring easy access supports a proactive maintenance approach, extending the transformer's life and ensuring grid stability.
2. Required Clearances Around Transformers
Proper clearance around a transformer is vital for maintenance accessibility, heat dissipation, and safety. Various standards (such as NEC, IEC, and IEEE guidelines) recommend minimum clearances:
| Component | Recommended Clearance |
|---|---|
| Front/Service Side | 1.5 meters (5 feet) or more |
| Non-service Sides | 0.9 meters (3 feet) minimum |
| Top Access (if needed) | 1.5 meters (5 feet) clearance |
| Access for Crane/Lift | Clear overhead and side access |
Sufficient space allows for:
- Safe operation of tools and equipment (e.g., torque wrenches, thermal scanners).
- Removal and replacement of large components like radiators, bushings, or fans.
- Quick evacuation in case of emergencies, reducing personnel risk.
Failure to plan adequate clearances can lead to unsafe working conditions, higher service costs, and complicated repair logistics.
3. Vehicle and Equipment Access
Large transformers often require heavy equipment like cranes, hoists, and maintenance trucks for servicing and replacement tasks.
- Crane Access: If major repairs are needed (such as core and coil assembly removal), crane access is vital. Transformer locations must be reachable by cranes with enough space for safe operations.
- Service Vehicles: Routine maintenance may involve trucks carrying oil filtration units, spare parts, and testing equipment. Proper access roads, parking areas, and load-bearing surfaces must be part of the site plan.
Restricted vehicle access can delay repairs significantly and increase service costs due to the need for specialized equipment or temporary pathways.
4. Emergency Maintenance and Response
In case of emergencies—such as faults, overheating, or external damage—rapid response is essential to prevent further system failures or safety hazards.
- Emergency Evacuation Routes: Transformer sites should have clear evacuation routes for maintenance crews.
- Fast Shutdown Procedures: Easy access to disconnect switches, breakers, and emergency controls is critical during faults.
- Accessibility for Firefighting Equipment: If a fire breaks out, fire crews must have immediate access to the transformer and any installed fire suppression systems.
A location designed with emergency scenarios in mind ensures fast intervention and minimizes damage and downtime.
5. Impact on Inspection Technologies
Modern transformers use predictive maintenance technologies like:
- Infrared thermography to detect hotspots.
- Dissolved Gas Analysis (DGA) on oil samples.
- Partial discharge monitoring.
- Acoustic emission detection.
For these technologies to be effective, transformers must be easily accessible for:
- Sensor installation and calibration.
- Data collection.
- Manual inspections to verify monitoring results.
Difficult-to-reach installations may limit the ability to use these advanced tools, reducing the effectiveness of predictive maintenance programs.
6. Ventilation and Working Environment
Transformer rooms, vaults, or outdoor areas must have appropriate working conditions to support maintenance activities.
- Adequate Ventilation: Poor airflow can create hazardous environments, particularly in enclosed spaces where heat and gases accumulate.
- Lighting: Maintenance personnel require adequate lighting to safely perform inspections and repairs.
- Climate Control: In regions with extreme temperatures, maintaining a workable environment may require heating, ventilation, and air conditioning (HVAC) considerations.
Comfortable and safe working conditions reduce accident rates, improve work quality, and encourage thorough inspections.
7. Safety Barriers and Controlled Access
Safety measures must be in place to protect maintenance personnel and prevent accidental contact with live parts.
- Lockout-Tagout (LOTO) Systems: Areas around the transformer must support proper isolation procedures during maintenance.
- Physical Barriers: Live parts must be shielded or barricaded when maintenance is underway.
- Controlled Entry: Only authorized, trained personnel should have access to the transformer, ensuring a safe maintenance environment.
Accessible locations make it easier to enforce safety protocols and supervise maintenance activities effectively.
8. Regulatory and Compliance Requirements
Electrical safety codes and regulations require transformer installations to facilitate safe maintenance practices.
- NEC and OSHA Standards: These define working clearance requirements, lockout/tagout rules, and access procedures.
- IEC and IEEE Guidelines: International standards stipulate accessibility and maintenance-related design criteria.
Ensuring compliance reduces legal liability and promotes best practices for safe, efficient transformer management.
What Are the Regulatory and Zoning Requirements for Transformer Installation?
Installing a transformer is a critical infrastructure task that must not only meet technical and safety standards but also comply with various regulatory and zoning requirements. Failure to adhere to these legal frameworks can lead to severe penalties, project delays, operational restrictions, or even forced removal of equipment. Ensuring full compliance is essential for a safe, efficient, and legally sound installation.
This article provides a comprehensive overview of the regulatory and zoning requirements that must be considered when installing transformers, helping engineers, contractors, and facility managers navigate the legal landscape effectively.
1. Building and Electrical Codes Compliance
Transformers must be installed in accordance with national and local building codes and electrical standards to ensure safety, efficiency, and compatibility with other infrastructure.
- National Electrical Code (NEC): In the United States, the NEC (NFPA 70) provides detailed guidelines for transformer installation, including wiring methods, grounding, overcurrent protection, and working clearances.
- International Electrotechnical Commission (IEC) Standards: Globally, IEC standards such as IEC 60076 (Power Transformers) and IEC 61936 (Installation of Electrical Equipment) dictate requirements for design, construction, and operation.
- Local Building Codes: Municipalities often have additional building codes regulating aspects like structural integrity, fire safety, seismic resistance, and accessibility.
Following these codes ensures that installations meet best practices for electrical safety and inspections are successfully passed before commissioning.
2. Zoning Regulations and Land Use Approvals
Zoning laws govern how land and property can be used within different jurisdictions. Transformers must comply with zoning ordinances to ensure that they are installed legally and without causing disputes or hazards.
- Permitted Use Verification: Confirm that transformer installations are an allowed use in the designated zone (e.g., industrial, commercial, residential).
- Special Use Permits: In some cases, particularly in residential or mixed-use areas, installing a transformer may require a special use permit or conditional use permit.
- Setback Requirements: Zoning ordinances often stipulate minimum setback distances from property lines, buildings, streets, or environmentally sensitive areas.
- Aesthetic Requirements: Some municipalities impose aesthetic regulations to ensure transformers are enclosed, screened, or designed to blend with the surroundings.
Obtaining zoning approval early avoids legal complications and ensures the transformer installation integrates smoothly into the community.
3. Fire Safety and Hazard Mitigation Standards
Transformer installations must adhere to fire protection and hazard control regulations to minimize risks associated with high-voltage equipment.
- National Fire Protection Association (NFPA) Codes: NFPA 850 (Fire Protection for Electric Generating Plants and High Voltage Substations) offers best practices for fire prevention.
- Oil Spill Containment: For oil-filled transformers, containment pits or bund walls must be built according to EPA Spill Prevention, Control, and Countermeasure (SPCC) regulations.
- Fire Separation Distances: Codes often mandate minimum separation distances between transformers and adjacent structures or combustible materials.
- Explosion Protection: In high-risk areas, additional explosion-proof designs and venting systems might be required.
Meeting fire and hazard standards helps protect both property and public safety and is a common requirement for project approvals.
4. Environmental and Ecological Compliance
Transformer installations must comply with environmental protection laws, especially when located near protected ecosystems, water bodies, or residential zones.
- Environmental Impact Assessments (EIA): Some jurisdictions require a formal EIA to evaluate potential ecological effects of installing large electrical equipment.
- Pollution Control: Installations must prevent contamination of soil and water, particularly when using oil-insulated transformers. This includes secondary containment systems and leak detection measures.
- Noise Regulations: Transformers generate operational noise, and installations must comply with local ordinances regulating acceptable noise levels near residential or sensitive areas.
- Endangered Species and Habitat Protection: Installations near protected wildlife areas must avoid disruption and may require special permissions or mitigation strategies.
Environmental compliance not only ensures legal operation but also supports corporate social responsibility and community goodwill.
5. Accessibility, Clearance, and Safety Regulations
Authorities require that transformers be installed with sufficient clearances, safe access for maintenance, and emergency access routes.
- Working Clearances: Standards specify minimum distances around the transformer for safe maintenance (e.g., typically 1.5 meters or 5 feet around serviceable sides).
- Emergency Access: Firefighters and emergency services must have unobstructed access to the transformer, often regulated under local fire codes.
- Barrier and Fencing Requirements: Outdoor transformers must be securely fenced with warning signs to prevent unauthorized access.
- Pathways and Entry Points: Safe, clearly marked paths for technicians and emergency personnel are required by codes such as OSHA regulations in the U.S.
Prioritizing accessibility and clearance is critical for both day-to-day operations and emergency response readiness.
6. Grounding and Surge Protection Standards
Electrical safety depends heavily on proper grounding and surge protection.
- Grounding Systems: Transformers must be connected to grounding systems that comply with standards such as IEEE 80 and NEC Article 250 to ensure personnel safety and system protection.
- Lightning Arresters: Installations in regions prone to lightning must include protective devices to divert surges safely to ground, minimizing damage risk.
Compliance with grounding and surge protection standards is essential to prevent dangerous faults and ensure system resilience.
7. Documentation, Permits, and Inspection Requirements
Before commissioning a transformer, various permits, licenses, and inspections must be completed.
- Building Permits: Required for new construction, significant upgrades, or structural modifications associated with transformer installations.
- Electrical Permits: Cover all electrical aspects of transformer installation, including wiring, grounding, and protective devices.
- Environmental Permits: Needed if the installation impacts protected land, water sources, or wildlife habitats.
- Periodic Inspections: Authorities conduct inspections at different project stages (foundation, grounding, installation, final commissioning) to verify code compliance.
- Recordkeeping: Detailed as-built drawings, safety certifications, and maintenance schedules must be documented and retained for future reference and audits.
Failure to obtain proper permits and pass inspections can halt operations and result in legal penalties.
8. Insurance and Liability Requirements
Many jurisdictions and utility companies require insurance coverage and proof of liability compliance before approving transformer installations.
- General Liability Insurance: Protects against accidents or property damage related to transformer installation or operation.
- Environmental Liability Insurance: Especially critical for oil-filled transformer installations near sensitive ecosystems.
- Contractor Bonding and Certification: Installations must often be performed by licensed and bonded contractors to meet local regulatory requirements.
Adequate insurance and certified workmanship protect both the project owner and the community from unforeseen incidents.
Conclusion
Choosing the right installation location for a transformer is an essential aspect of ensuring its efficient operation and longevity. Factors such as environmental conditions, proximity to load centers, safety considerations, and maintenance accessibility all play a vital role in determining the best site. By carefully assessing these factors, operators can enhance the transformer's performance, minimize the risk of failure, and extend its service life. Additionally, adhering to regulatory guidelines and safety protocols ensures that the installation meets legal requirements and protects both equipment and personnel. Ultimately, a well-chosen installation location contributes significantly to the transformer’s overall reliability, safety, and cost-effectiveness in the power distribution network.
FAQ
Q1: Why is selecting the right installation location important for transformers?
A1: Choosing the right installation location is crucial to ensure the transformer's safe, efficient, and long-lasting operation. A poor location can lead to cooling inefficiencies, increased risk of environmental damage, safety hazards, and higher maintenance costs.
Q2: What factors should be considered when selecting a transformer installation site?
A2: Important factors include ambient temperature, ventilation for cooling, ease of access for maintenance, distance from sensitive areas (like residential zones), protection from flooding or extreme weather, proximity to the load center, and compliance with safety regulations and local codes.
Q3: How does the environment affect the installation of transformers?
A3: Environmental factors such as temperature extremes, humidity, dust, and pollution can affect transformer performance. Installations in harsh environments may require additional protection measures like enclosures, air filtration systems, or special coatings to prevent damage and maintain efficiency.
Q4: Why is accessibility important when choosing a transformer location?
A4: Good accessibility is essential for routine inspections, maintenance, and emergency repairs. The location should allow safe and easy access for personnel and equipment without obstructing other critical infrastructure or posing risks to workers.
Q5: How can cooling needs influence transformer placement?
A5: Transformers generate heat during operation, so proper airflow and cooling are vital. Outdoor installations should avoid enclosed or poorly ventilated areas, while indoor installations must ensure sufficient spacing and ventilation systems to prevent overheating and ensure optimal performance.
References
"How to Select the Best Site for Transformer Installation" - https://www.transformertech.com/installation-location - Transformer Tech
"Transformer Installation: Key Considerations for Optimal Performance" - https://www.powermag.com/transformer-installation-guidelines - Power Magazine
"Factors Influencing Transformer Site Selection" - https://www.electrical4u.com/transformer-installation-location - Electrical4U
"Environmental Impact on Transformer Installation and Operation" - https://www.researchgate.net/transformer-installation-environment - ResearchGate
"Planning and Executing Transformer Installations" - https://www.sciencedirect.com/transformer-installation - ScienceDirect
"Best Practices for Transformer Installation and Site Selection" - https://www.smartgridnews.com/transformer-site-selection - Smart Grid News
"Choosing the Right Environment for Transformer Operation" - https://www.energycentral.com/c/ee/transformer-environmental-factors - Energy Central
"Transformer Installation: How Location Affects Performance and Longevity" - https://www.powergrid.com/transformer-installation-tips - PowerGrid
