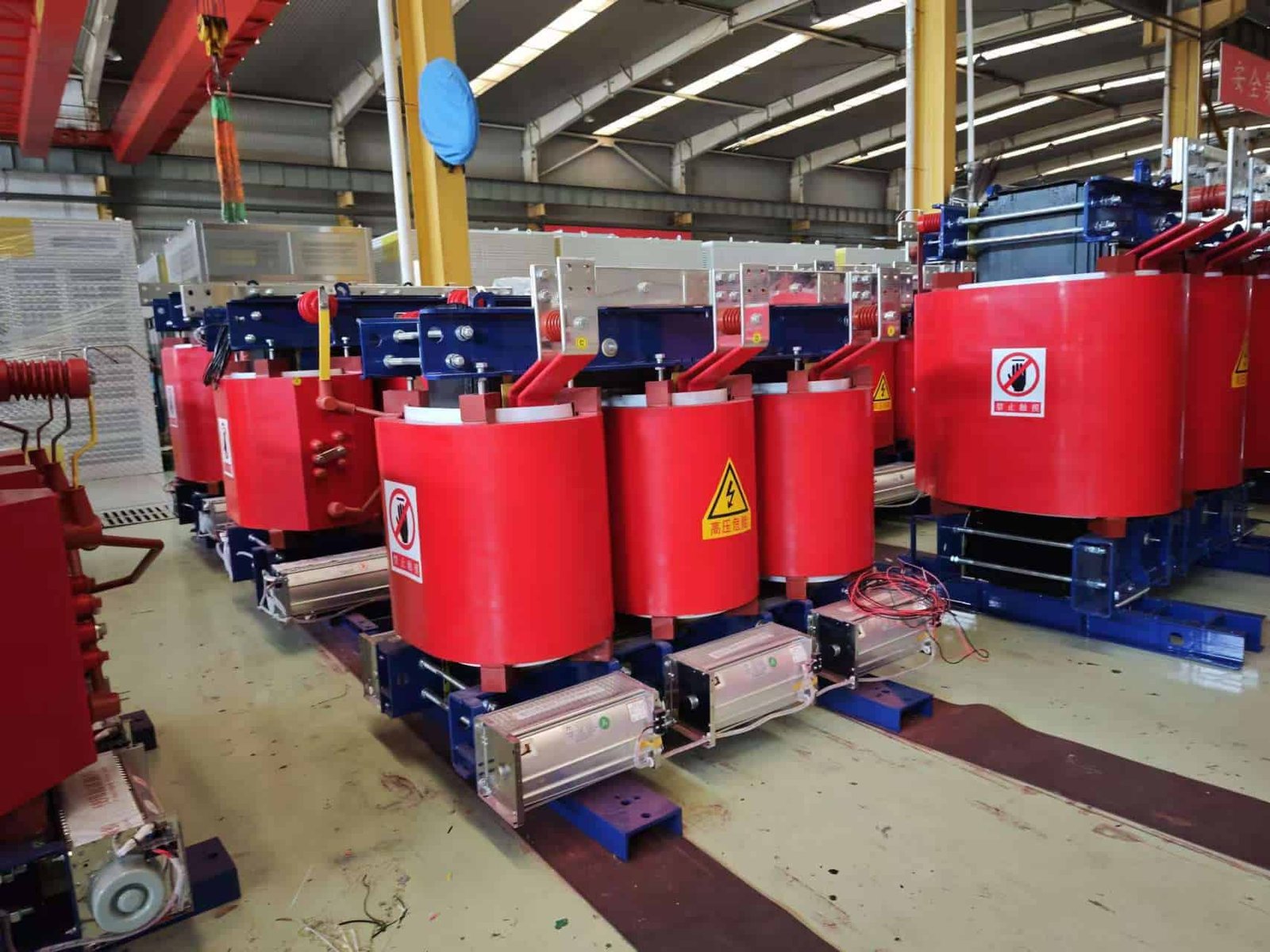

What Are the Key Advantages of Dry-Type Transformers?
As the demand for safe, efficient, and environmentally responsible electrical equipment increases, dry-type transformers have become a preferred solution across commercial, industrial, and institutional installations. Unlike oil-immersed units, dry-type transformers rely on air as the cooling and insulating medium, offering distinct benefits in safety, environmental compatibility, and ease of installation.
Dry-type transformers offer key advantages including fire safety (no flammable oil), low maintenance requirements, indoor installation flexibility, excellent resistance to environmental contaminants, quick deployment, low noise levels, and eco-friendliness. These features make them ideal for sensitive environments such as hospitals, data centers, schools, and commercial buildings.
Their robustness and minimal upkeep make them a top choice for modern, sustainable power infrastructure.
Dry-type transformers pose a higher fire risk than oil-immersed units.False
Dry-type transformers eliminate the use of flammable oil, drastically reducing fire risk compared to oil-filled units.
1. Fire and Safety Advantages
| Feature | Benefit |
|---|---|
| No oil used | No risk of flammable oil leaks or fires |
| Self-extinguishing insulation | Reduces flame spread in case of short circuits |
| Meets UL, IEC fire safety standards | Suitable for public and high-risk buildings |
Dry-type transformers are ideal for enclosed indoor environments where fire safety is critical.
2. Low Maintenance Requirements
| Aspect | Advantage |
|---|---|
| No oil testing or filtration | Simplifies operational overhead |
| No risk of leaks or spills | Eliminates environmental cleanup liabilities |
| Minimal mechanical wear | Longer service intervals |
| Easy access to windings | Allows quicker visual inspection and minor repairs |
Compared to oil-immersed units, dry types offer 70–80% less maintenance effort.
3. Environmental Sustainability
| Feature | Eco-Friendly Benefit |
|---|---|
| No oil disposal required | Avoids environmental hazards |
| Low VOC emissions | Resin insulation emits minimal volatile compounds |
| Minimal land contamination risk | Ideal for green buildings and clean energy systems |
| 100% recyclable materials | Steel, copper, and resin systems can be recovered |
Preferred in LEED-certified buildings, dry-type transformers support sustainable infrastructure goals.
4. Flexible and Safe Indoor Installation
| Application | Advantage |
|---|---|
| Hospitals, schools, offices | Quiet, safe, compact units suitable for populated areas |
| Data centers | Fire-safe and easy to install in IT/server spaces |
| High-rise buildings | Can be placed on any floor without containment tank |
| Marine and underground use | With special enclosures, suitable for harsh locations |
Can be mounted closer to the load, reducing cable runs and energy loss.
5. Resistance to Dust, Moisture, and Contaminants
| Feature | Performance Advantage |
|---|---|
| Encapsulated or VPI coils | Protect windings from dirt and humidity |
| No breathing system needed | Avoids moisture ingress common in oil tanks |
| Tolerates industrial pollution | Can be installed in mines, cement plants, steel mills |
Optional IP-rated enclosures extend application into outdoor and dusty environments.
6. Quieter Operation
| Source of Noise | Dry-Type Advantage |
|---|---|
| No oil flow or pump noise | Virtually silent under normal load |
| Low core vibration | Well-damped core structure minimizes hum |
Makes dry-type units ideal for offices, retail spaces, and hospitals.
7. Ease of Installation and Transport
| Installation Benefit | Practical Advantage |
|---|---|
| Lighter than oil units | Easier lifting and rooftop installation |
| No oil fill or draining | Faster commissioning and decommissioning |
| Pre-assembled in factory | Simplifies plug-and-play use on site |
| Smaller footprint | Fits in tight electrical rooms |
Most dry-type units can be installed within hours, reducing project timelines.
8. Reliable Performance Over Long Service Life
| Reliability Feature | Lifespan Support |
|---|---|
| Thermally rated insulation (Class F or H) | Handles high temp loads with stability |
| Robust mechanical design | Withstands short-circuit forces and vibrations |
| No risk of oil degradation | Maintains insulation performance over 20–30+ years |
When maintained, dry-type transformers offer consistent performance for decades.
Summary Table: Key Advantages at a Glance
| Advantage Area | Benefit Provided |
|---|---|
| Fire Safety | No oil, self-extinguishing resin |
| Maintenance | Oil-free, minimal upkeep |
| Environmental | Non-polluting, recyclable |
| Installation | Indoor/outdoor friendly, space-efficient |
| Durability | Resists dust, moisture, mechanical shock |
| Noise Control | Quiet enough for public/commercial use |
| Life Expectancy | 20–40+ years with proper care |

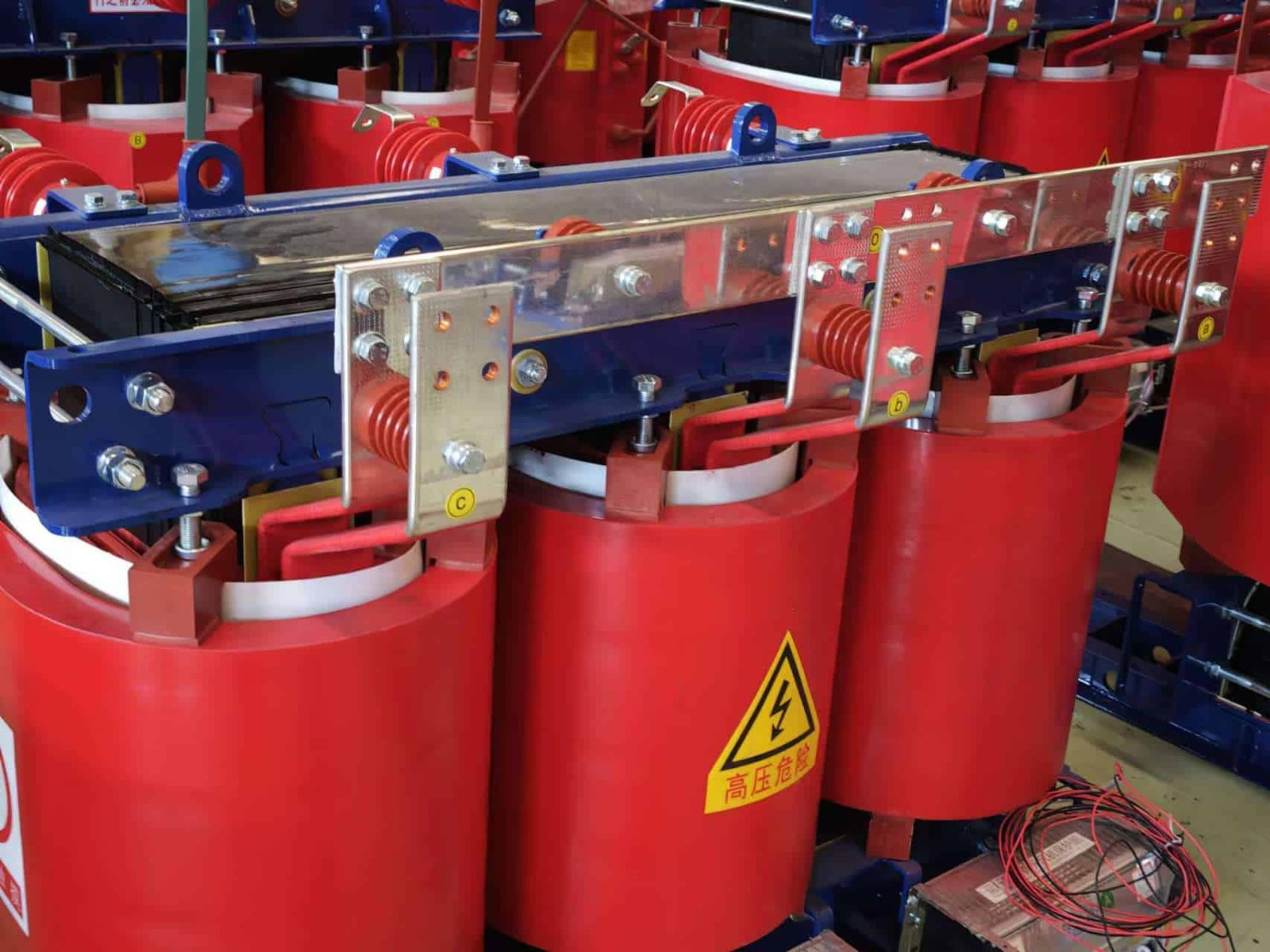

Why Are Dry-Type Transformers Considered Safer?
Safety is one of the most defining characteristics of dry-type transformers. Designed without oil or flammable liquids, they provide a low-risk alternative to oil-immersed transformers, especially in settings where fire hazards, environmental risks, or personnel proximity must be minimized. Whether installed in hospitals, high-rise buildings, or industrial plants, dry-type transformers offer proven safeguards against heat, fire, and electrical faults.
Dry-type transformers are considered safer because they use no flammable oil, eliminate the risk of leaks and fires, have high mechanical and thermal resilience, and meet strict fire-resistance and insulation standards. Their enclosed construction minimizes exposure to live parts, and their self-extinguishing insulation further enhances protection against thermal and electrical hazards—especially in populated or sensitive environments.
This oil-free, enclosed, and inherently flame-resistant design makes dry-type transformers ideal for indoor or mission-critical installations.
Dry-type transformers are fire hazards due to their epoxy insulation.False
Dry-type transformers use flame-retardant insulation materials such as epoxy resin or VPI varnish, which are self-extinguishing and far safer than oil-based insulation.
1. No Flammable or Explosive Oil
| Feature | Safety Benefit |
|---|---|
| Completely oil-free design | No risk of fire, explosion, or environmental spill |
| Solid insulation system | Avoids oil vapor ignition or combustion |
| No need for oil containment | Simplifies safety planning and eliminates bund walls |
Unlike oil-filled units, dry types cannot leak or ignite due to fluid breakdown or fault arcs.
2. Self-Extinguishing Insulation Materials
| Insulation Type | Safety Characteristics |
|---|---|
| Epoxy Resin (Cast) | Flame-retardant, self-extinguishing, low smoke |
| VPI (Vacuum Pressure Impregnation) | Cures varnish deep into windings, heat resistant |
| Class F or H Insulation | Withstands 155–180 °C without breakdown |
Tested per IEC 60076-11, IEEE C57.12.91, and UL 94-V standards for flame resistance.
3. Enclosed Construction and Touch Safety
| Structural Safety | Personnel Protection |
|---|---|
| Fully enclosed windings | No live parts exposed to operators or bystanders |
| Touch-safe terminals | Prevents accidental contact with energized points |
| Grounded enclosure | Discharges fault current safely in case of failure |
Suitable for public access areas, including malls, schools, and hospitals.
4. Reduced Risk of Arc Flash and Short Circuit Damage
| Risk Type | Dry-Type Advantage |
|---|---|
| Arc faults from oil breakdown | Not applicable—no oil dielectric present |
| Terminal arcing | Easy access for maintenance prevents degradation |
| Fault energy containment | Enclosure prevents fragment ejection or injury |
Dry-type transformers show lower incident energy ratings in arc flash hazard analyses.
5. Compliance with Modern Safety Codes
| Code/Standard | Safety Coverage |
|---|---|
| IEC 60076-11 | Fire behavior, thermal endurance, safety clearances |
| UL 1561 / UL 94 | Flame-retardant material testing |
| IEEE C57.12.01 | Indoor-use dry transformer requirements |
| NFPA 70 (NEC) | Accepts dry types in commercial/public interiors |
Dry-type units are often code-mandated in high-risk or populated environments.
6. Safer Maintenance and Operation
| Operational Safety | Benefit |
|---|---|
| No oil handling required | Eliminates burn, slip, or inhalation risks |
| Visual inspection possible | Can observe windings without opening oil tank |
| No combustible gases | DGA (dissolved gas analysis) unnecessary |
| Lower downtime risk | Safer diagnostics during energized state |
Faster, safer inspections make dry types ideal for critical facilities like airports and data centers.
7. Superior Behavior in Emergency Scenarios
| Event Scenario | Dry-Type Response |
|---|---|
| Short circuit or fault | Limited fire spread due to self-extinguishing resin |
| Building fire nearby | No added fuel load or oil explosion risk |
| Seismic or vibration events | Lower spill and damage probability |
Dry-type transformers are often installed in fire-rated vaults or rooms without special suppression systems.
Comparison: Dry-Type vs. Oil-Filled Transformer Safety
| Parameter | Dry-Type Transformer | Oil-Filled Transformer |
|---|---|---|
| Flammable Fluids | None | Yes (mineral or synthetic oil) |
| Fire Risk | Very Low | High under internal fault |
| Smoke Emission | Minimal | High under oil combustion |
| Oil Spill Hazard | None | High; requires containment |
| Touch Safety | Enclosed, safer | May require external fencing |
| Suitable for Indoor Use | Yes | Only with fireproof vaults |

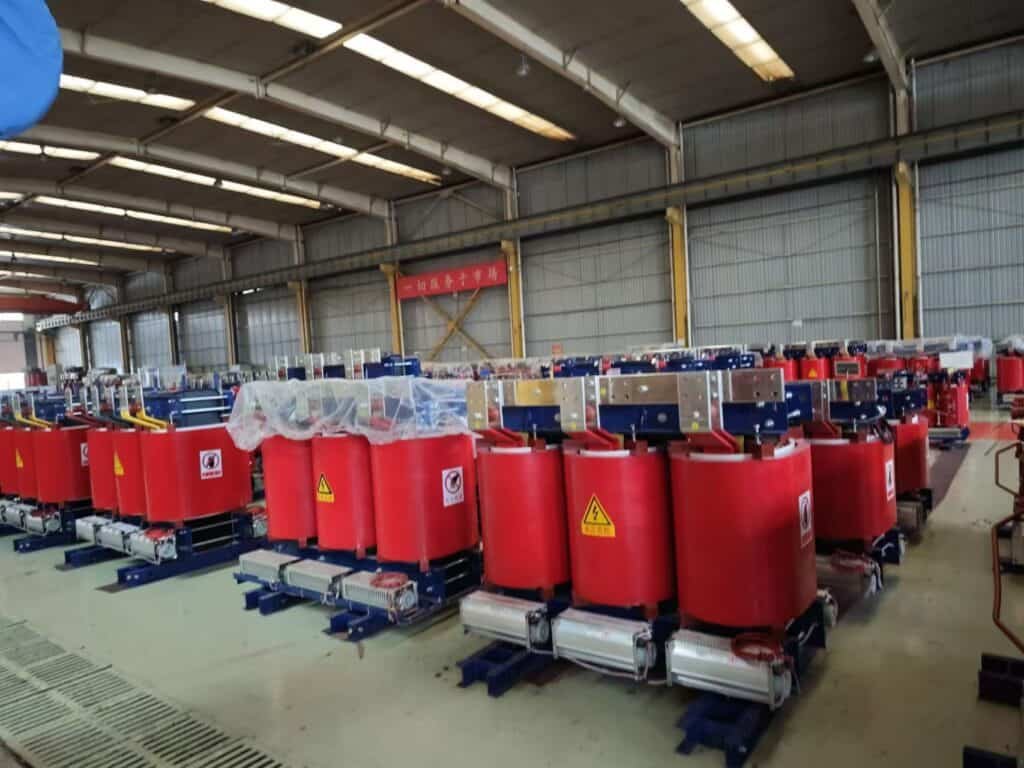

What Are the Environmental and Operational Benefits of Dry-Type Transformers?
As industries and municipalities push toward greener technologies and reliable energy infrastructure, dry-type transformers have become an essential part of modern power systems. Their oil-free, enclosed design offers numerous advantages—not only for safer operation but also for environmental compliance, ease of maintenance, and energy efficiency. Whether in commercial buildings, manufacturing plants, or clean energy grids, these transformers deliver sustainable and high-performance outcomes.
Dry-type transformers offer environmental benefits such as oil-free operation (no risk of spills or contamination), low emissions, recyclable materials, and safer use in eco-sensitive areas. Operationally, they deliver low maintenance needs, quick deployment, safe indoor installation, and robust performance under varying conditions. Their design supports sustainable development, fire protection, and clean energy goals.
This dual benefit—cleaner footprint and easier operation—makes them the preferred choice for green infrastructure.
Dry-type transformers leak oil and require frequent environmental monitoring.False
Dry-type transformers are oil-free, eliminating the risk of oil leaks, soil contamination, or costly environmental monitoring.
1. Oil-Free Operation = Environmental Safety
| Feature | Environmental Benefit |
|---|---|
| No mineral or synthetic oil | No spill risk to soil, groundwater, or nearby flora |
| No vaporized hydrocarbons | Reduces air pollution and VOC emissions |
| No oil containment system | Lowers installation complexity and site impact |
Ideal for green buildings, solar/wind installations, water facilities, and nature reserves.
2. Low Emissions and Non-Toxic Materials
| Component | Eco Advantage |
|---|---|
| Epoxy/VPI insulation | Flame-retardant and halogen-free |
| No combustion gases | Safer in event of external fire |
| Meets RoHS and REACH directives | Free from restricted hazardous substances |
| Certifiable Standards | ISO 14001, UL 94-V, IEC 60076-11, EcoDesign Tier 2 |
3. Recyclable Materials and End-of-Life Management
| Material Type | Recyclability |
|---|---|
| Copper windings | High-value recycling with minimal processing |
| Steel core and frame | Fully recyclable and reusable |
| Epoxy or Varnish | Non-toxic solid waste (vs. oil disposal required) |
Reduces carbon footprint and supports circular economy practices in energy equipment.
4. No Risk of Soil or Water Contamination
| Oil-Based Risk | Dry-Type Advantage |
|---|---|
| Transformer oil leaks | Not applicable—completely sealed, solid insulation |
| Rainwater oil runoff | No impact—no oil chambers to breach |
| Hazardous waste cleanup | Avoided—no used oil to store, test, or dispose |
Makes dry-type transformers suitable for water treatment plants, hospitals, and underground stations.
5. Minimal Maintenance Requirements
| Maintenance Item | Dry-Type Benefit |
|---|---|
| No oil testing or filtration | Eliminates regular dielectric fluid care |
| No gasket replacements | No seals to degrade or leak |
| Fewer moving parts | No cooling pumps or fans (in ONAN units) |
| Easy inspection access | Visual inspection without draining or dismantling |
| Typical O\&M Cost vs. Oil-Filled | 40–60% lower over 30 years of service |
6. Quick, Clean Installation
| Deployment Advantage | Operational Benefit |
|---|---|
| No fluid filling or draining | Shortens commissioning and decommissioning |
| No oil containment basin needed | Reduces civil work, eases siting in buildings |
| Compact footprint | Fits in small rooms, rooftops, and subfloors |
Ideal for retrofits, urban projects, and emergency installations.
7. Safe Indoor Use and Urban Compatibility
| Urban/Indoor Concern | Dry-Type Transformer Solution |
|---|---|
| Fire risk from transformers | Flame-resistant epoxy reduces building fire load |
| Vapor or leak detection | Not needed—no fluid or pressurized components |
| Public safety | Fully enclosed and touch-safe |
| Typical Use Cases | Schools, airports, data centers, shopping malls |
8. Adaptability for Renewable Energy Applications
| Green Energy Scenario | Dry-Type Advantage |
|---|---|
| Wind farms (on-tower) | Vibration and altitude tolerant, no oil spillage |
| Solar inverter stations | Indoor/outdoor capable, low THD tolerance |
| Battery energy storage | Fire-safe for enclosed power rooms |
Helps meet Net-Zero, ESG, and LEED targets in infrastructure projects.
Summary Table – Environmental vs. Operational Benefits
| Benefit Category | Key Advantages |
|---|---|
| Environmental Safety | Oil-free, no leaks, no contamination risks |
| Low Emissions | No combustion gases or VOCs |
| Recyclability | Steel and copper recovery at end-of-life |
| Eco Certifications | Meets ISO, RoHS, and EcoDesign regulations |
| Low Maintenance | No oil, less monitoring, easy inspections |
| Indoor Safe Installation | Enclosed, fire-resistant, silent operation |
| Efficient Deployment | Simple placement, fast start-up, compact footprint |
What Are the Limitations in Power and Voltage Ratings of Dry-Type Transformers?
Dry-type transformers are widely valued for their safety, reliability, and ease of maintenance, particularly in medium-voltage applications. However, they are not universally applicable to every voltage or power scenario. Their design inherently limits their maximum voltage and power ratings due to constraints in cooling efficiency, insulation coordination, and physical size.
Dry-type transformers are generally limited to power ratings below 20–25 MVA and voltage levels up to 36 kV (with special designs reaching 72.5 kV). These limits are due to thermal management challenges, insulation constraints, size, cost, and arc containment in high-voltage environments. For higher voltage and capacity requirements, oil-immersed transformers are typically preferred due to better dielectric strength and heat dissipation capabilities.
Understanding these limitations helps in choosing the right transformer type for your application.
Dry-type transformers can be used for any voltage level up to 500 kV.False
Dry-type transformers are typically limited to voltage ratings up to 36 kV due to insulation and cooling limitations. Higher voltages require oil-immersed transformers.
1. Typical Power and Voltage Rating Ranges
| Transformer Class | Voltage Range (kV) | Power Rating Range (kVA/MVA) |
|---|---|---|
| Low Voltage (LV) | <1.1 kV | 50 – 2,500 kVA |
| Medium Voltage (MV) | 1.1 – 36 kV | 500 kVA – 20 MVA |
| Extended MV (special design) | Up to 72.5 kV | Up to 30 MVA (rare, costly) |
| Not typically used | >72.5 kV | — |
The most common application range is 2.5 MVA to 10 MVA at 11–33 kV.
2. Voltage Limitations – Why 36 kV Is a Typical Ceiling
| Limitation Area | Explanation |
|---|---|
| Insulation Coordination | Higher voltages require thicker, costlier insulation |
| Air Dielectric Strength | Air is less effective than oil in arc suppression |
| Partial Discharge Risk | Higher voltages increase PD activity without oil |
| Physical Clearance | Larger creepage and clearance distances required |
| Result | Above 36 kV, dry-type units become bulky, expensive, and less practical |
3. Power Rating Constraints
| Constraint Area | Reason for Limitation |
|---|---|
| Heat Dissipation | Limited airflow reduces cooling efficiency at high MVA |
| Thermal Hot Spots | Can form in large windings under full load |
| Size and Weight | Larger coils increase footprint and structural demand |
| Core Noise and Vibration | More difficult to dampen in high-power dry units |
Oil has superior thermal properties; beyond 25 MVA, dry-type becomes impractical.
4. Cooling Class and Load Capability Impact
| Cooling Method | Typical Usage Rating | Limiting Factor |
|---|---|---|
| AN (Air Natural) | ≤ 1,000 kVA | Passive cooling; limits capacity |
| AF (Air Forced) | Up to 5,000–7,500 kVA | Limited by fan system capacity and noise |
| H-class epoxy resin | Helps withstand higher temps | Still constrained by core/winding bulk |
Even with Class H insulation, high loads require derating due to air’s lower heat transfer efficiency.
5. Comparative Table – Dry-Type vs. Oil-Immersed Rating Limits
| Characteristic | Dry-Type Transformer | Oil-Immersed Transformer |
|---|---|---|
| Max Voltage Rating | ~36 kV (typical), 72.5 kV (rare) | >765 kV (UHV applications) |
| Max Power Rating | 20–25 MVA (typical) | 1,000+ MVA |
| Cooling Method | Air (natural/forced) | Oil (ONAN, ONAF, OFAF, OFWF) |
| Insulation System | Epoxy/VPI resin | Paper-oil composite |
| Arc Containment | Limited | Superior due to oil damping |
6. Design Implications at Higher Ratings
| Parameter | Design Challenge at Higher Ratings |
|---|---|
| Coil Winding Size | Requires more turns and larger cross-section |
| Mechanical Stability | Increased inrush and short-circuit forces |
| Enclosure Size | Needs large clearances and insulation path lengths |
| Transport and Installation | May exceed indoor space limits or lifting capacity |
Special installations (e.g., >15 MVA at 33 kV) may require custom ventilation rooms or forced cooling packages.
7. Typical Application Boundaries
| Application | Power/Voltage Guidance |
|---|---|
| Commercial buildings | <2,500 kVA, 11–22 kV |
| Data centers / hospitals | Up to 5,000 kVA, 11–22 kV |
| Industrial plants | 5–15 MVA, 11–33 kV |
| Utility substations | Often >20 MVA or 66+ kV → oil type preferred |
Dry types are best suited for localized MV distribution, not grid-level transmission.
8. Custom High-Voltage Dry-Type Options (Special Case)
| Parameter | Feasible but Rare Limits |
|---|---|
| Voltage | 66–72.5 kV |
| Power | 25–30 MVA |
| Design Requirements | Multi-chamber epoxy casting, external cooling fans |
| Applications | Wind turbine towers, marine substations, mining |
| Trade-offs | High cost, size, complex logistics |
These are only used when oil-based solutions are not permitted due to space or safety constraints.
How Do Dry-Type Transformers Compare in Cost and Efficiency?
Dry-type transformers are increasingly adopted for their safety, environmental benefits, and low maintenance, especially in indoor or sensitive applications. However, when selecting between dry-type and oil-immersed transformers, decision-makers must consider initial cost, lifecycle operating costs, and efficiency performance. While dry-type units excel in safety and simplicity, their capital and operational profiles differ from oil-filled models, particularly in large-scale or continuous-duty systems.
Dry-type transformers generally have higher initial costs and slightly lower energy efficiency than oil-immersed transformers. However, they offer lower maintenance costs, no oil handling requirements, and improved safety in fire-sensitive environments. For low- to medium-voltage indoor applications, dry-type units can offer competitive long-term value, despite higher upfront pricing.
The optimal choice depends on application size, environment, load profile, and safety requirements.
Dry-type transformers are always more efficient than oil-filled transformers.False
Dry-type transformers are typically less efficient than oil-immersed transformers, especially at higher power levels, due to air’s lower thermal conductivity and more limited cooling.
1. Capital Cost Comparison
| Cost Category | Dry-Type Transformer | Oil-Immersed Transformer |
|---|---|---|
| Unit Purchase Price | 15–30% higher | Lower per kVA |
| Installation Cost | Lower (no oil tank or fire suppression) | Higher (civil work + containment) |
| Commissioning | Faster, simpler | Requires oil fill & test |
| Fire Protection | Optional (built-in safety) | Mandatory in indoor settings |
Dry-type transformers are more expensive upfront, but offer lower installation complexity.
2. Efficiency Performance Comparison
| Metric | Dry-Type | Oil-Immersed |
|---|---|---|
| No-load loss | Slightly higher | Lower (more compact core) |
| Load loss (full load) | Higher due to heat retention | Lower due to oil cooling |
| Typical Efficiency | 97.5%–98.7% | 98.5%–99.3% |
| Energy Star/IEC Class | Meets EcoDesign Tier 2 (limited sizes) | Meets Tier 2 more easily |
Over a 20-year life, 1% difference in efficiency can equal thousands in energy costs.
3. Lifetime Operating Cost Comparison (Example: 1600 kVA, 11 kV)
| Cost Category | Dry-Type (Est. USD) | Oil-Filled (Est. USD) |
|---|---|---|
| Initial Purchase | $45,000 | $35,000 |
| Installation | $7,000 | $15,000 (vault, oil pad) |
| No-load + Load Loss Energy Cost (20 years) | $75,000 | $65,000 |
| Preventive Maintenance (20 years) | $4,000 | $10,000 (oil testing) |
| Total Estimated Lifecycle Cost | $131,000 | $125,000 |
Though oil units may win on pure lifecycle economics, fire risk, location, and maintenance simplicity often justify dry-type choices.
4. Maintenance Comparison
| Maintenance Aspect | Dry-Type | Oil-Immersed |
|---|---|---|
| Oil testing/filtering | Not applicable | Required annually |
| Visual inspections | Simple, direct | May require tank opening |
| Dielectric testing | Basic IR/PI test | DGA + BDV + moisture test |
| Fire safety compliance | Built-in | External systems needed |
Maintenance costs for oil units are 2× to 4× higher over 15–20 years.
5. Cooling and Energy Loss Implications
| Cooling Type | Energy Efficiency Impact |
|---|---|
| Air (AN/AF) | Lower cooling capacity, increased core temps |
| Oil (ONAN/ONAF) | High heat dissipation, more stable winding temps |
| Effect on Copper Loss | Dry-type copper operates hotter → higher I²R losses |
At >2,500 kVA, dry-type units must often be derated or equipped with forced cooling, reducing efficiency.
6. Typical Cost vs. Efficiency Trade-Offs by Application
| Application Type | Preferred Type | Why? |
|---|---|---|
| Hospitals/Data Centers | Dry-Type | Fire safety, indoor install, low noise |
| Utility Substations (>20 MVA) | Oil-Immersed | High efficiency, cost-effective for scale |
| Green Buildings | Dry-Type | No oil handling, LEED/ESG compliant |
| Outdoor Industrial Use | Oil-Immersed | Rugged, better thermal margin |
Summary Table – Dry-Type vs. Oil-Immersed Comparison
| Attribute | Dry-Type Transformer | Oil-Immersed Transformer |
|---|---|---|
| Initial Cost | High | Lower |
| Efficiency | Slightly lower | Higher |
| Maintenance Cost | Lower | Higher |
| Safety (Fire/Leak) | Excellent | Requires protection |
| Eco Compliance | Strong | Needs oil management |
| Noise & Heat | Low noise, more heat | Medium noise, better cooling |
| Voltage/Power Limit | <36 kV / <25 MVA typical | >72.5 kV / >500 MVA available |
| Indoor Suitability | Excellent | Limited |
Where Are Dry-Type Transformers Best and Least Suitable?
Dry-type transformers are engineered with fire-resistant, oil-free designs that make them the go-to choice for indoor, environmentally sensitive, and safety-prioritized applications. However, their use is not universal. Certain voltage levels, power demands, and operating conditions push them beyond their practical limits, making other transformer types—especially oil-immersed ones—more suitable.
Dry-type transformers are best suited for low to medium voltage applications (typically ≤36 kV), in indoor or enclosed locations with limited ventilation or high fire-safety requirements—such as hospitals, commercial buildings, schools, and data centers. They are least suitable for high-voltage (>36 kV), high-capacity (>25 MVA), outdoor, or utility-scale applications that demand superior cooling, compactness, or arc-quenching performance, where oil-immersed types are more effective.
Choosing the right application is critical to maximize reliability, safety, and economic value.
Dry-type transformers are ideal for all voltage levels and outdoor environments.False
Dry-type transformers are typically limited to 36 kV and are not ideal for outdoor, high-voltage, or high-power utility installations due to insulation and cooling limitations.
Best-Suited Applications for Dry-Type Transformers
| Application Environment | Why It's Ideal |
|---|---|
| Hospitals | No fire risk, low noise, safe near patients |
| Data centers | Indoor installation, limited maintenance downtime |
| Commercial/residential towers | Space-saving, fire code compliant |
| Universities and schools | Public safety, minimal supervision needed |
| Subway/railway stations | Confined spaces, no oil hazard |
| Renewable inverter stations (≤36 kV) | Eco-compliant, non-toxic, fast setup |
| Industrial indoors (light duty) | Dry, dust-prone but enclosed environments |
| Typical Voltage Range | 0.4 kV – 33 kV |
| Typical Power Rating | 100 kVA – 15 MVA |
| Cooling Method | Air Natural (AN) or Air Forced (AF) |
Used where fire safety, environmental regulation, or limited space make oil units unsuitable.
Least-Suited Applications for Dry-Type Transformers
| Application Environment | Limiting Factors |
|---|---|
| Outdoor utility substations | High exposure to moisture, dust, UV |
| Transmission voltage systems (>36 kV) | Insulation and clearance limitations |
| Large power plants | 25+ MVA capacity → thermal and footprint constraints |
| High-altitude wind farms | Reduced dielectric strength, vibration, humidity |
| Heavy industries (steel, cement) | Need higher overload and arc-containment margin |
| Critical backup for long-duration peak loads | Risk of overheating without advanced cooling |
| Typical Voltage Range Exceeding Suitability | >36 kV |
| Typical Power Rating Overload | >20–25 MVA (dry type becomes bulky, expensive) |
In such cases, oil-immersed transformers are superior for voltage stability, thermal margin, and compactness.
Environmental and Installation Suitability Matrix
| Environment Type | Suitability Level | Reason |
|---|---|---|
| Indoor, clean, dry | ★★★★★ (Best) | Optimized for low-noise, fire-safe use |
| Underground vaults | ★★★★★ | Enclosed and moisture-protected |
| Rooftops/high-rise floors | ★★★★☆ | Lightweight, no oil, safe for buildings |
| Coastal/marine (indoor) | ★★★☆☆ | With sealed enclosures, corrosion control needed |
| Outdoor (sheltered enclosure) | ★★☆☆☆ | Requires special housing and IP-rated designs |
| Harsh outdoor (direct UV, rain, wind) | ★☆☆☆☆ | Not viable without expensive custom housing |
Application Comparison Table: Dry-Type vs. Oil-Immersed
| Scenario | Best Choice | Why |
|---|---|---|
| 11–33 kV Indoor Substation | Dry-Type | No oil risk, easy to maintain |
| 66 kV Outdoor Utility Feeder | Oil-Immersed | Better voltage withstand and arc quenching |
| Hospital Backup Transformer | Dry-Type | Safer near patients and staff |
| Large Wind Farm Step-Up | Oil-Immersed | Handles voltage surge and thermal loads |
| Office Tower Distribution | Dry-Type | Quiet, compact, clean install |
| Steel Plant 40 MVA Transformer | Oil-Immersed | Superior overload and fault durability |
Practical Limit Boundaries of Dry-Type Use
| Parameter | Upper Limit for Dry-Type Use |
|---|---|
| Voltage Rating | 36 kV (standard), up to 72.5 kV (rare) |
| Power Rating | Typically up to 20–25 MVA |
| Ambient Temperature | Max ~50 °C (with derating) |
| Altitude | ≤1000 m standard (derate above) |
| Contaminant Exposure | Requires sealed IP enclosure above moderate levels |
Conclusion
Dry-type transformers offer excellent safety, low environmental impact, and reduced maintenance, making them ideal for urban infrastructure, sensitive buildings, and eco-conscious applications. However, they are not a one-size-fits-all solution. Limitations in voltage, capacity, cost, and outdoor durability mean they may not be suitable for every situation. Proper selection requires balancing application needs, safety goals, and long-term performance expectations.
FAQ
Q1: What are the main advantages of dry-type transformers?
A1: Dry-type transformers offer several key benefits:
Fire Safety: No flammable oil, making them ideal for indoor or high-risk environments
Low Maintenance: No oil checks or leakage concerns
Eco-Friendly: No risk of soil or water contamination
Compact Installation: Suitable for confined or underground spaces
Moisture Resistance: Especially in cast resin types
Easy Inspection: Open construction allows easy visual checks and cleaning
Q2: In what applications are dry-type transformers most beneficial?
A2: Dry-type transformers are preferred for:
Commercial buildings, hospitals, and schools
Underground substations and tunnels
Data centers and high-rise structures
Industrial environments with strict fire and environmental codes
They are especially valued where safety, air quality, and quick access are important.
Q3: What are the disadvantages of dry-type transformers?
A3: Limitations include:
Lower power capacity: Typically up to 36 kV, less than oil-filled types
Higher initial cost: Especially for cast resin models
Cooling limitations: Require proper air circulation or forced ventilation
Larger footprint: Due to air insulation vs oil
Less overload tolerance: More sensitive to thermal stress under high load
These constraints make them less suitable for high-voltage transmission or outdoor use.
Q4: How do dry-type transformers compare to oil-immersed transformers?
A4: Feature Dry-Type Transformer Oil-Immersed Transformer
Fire Safety High Moderate (oil is flammable)
Maintenance Low Regular oil testing needed
Power Rating Up to 36 kV Up to 765 kV or more
Environmental Risk Minimal Oil leak contamination possible
Cooling Method Air (natural/forced) Oil-based (ONAN, ONAF, etc.)
Installation Location Indoors preferred Outdoor, substations
Q5: Is a dry-type transformer the right choice for your project?
A5: Choose a dry-type transformer if:
You need indoor or close-proximity installation
Fire safety and environmental impact are priorities
Your load requirements are within medium voltage and capacity limits
You want a low-maintenance, long-term solution in a clean, ventilated space
For high-load, outdoor, or utility-scale applications, oil-immersed units are typically better.
References
"Dry-Type vs. Oil-Immersed Transformers" – https://www.electrical4u.com/dry-type-vs-oil-immersed-transformers
"IEEE C57.12.01: Dry-Type Transformer Standard" – https://ieeexplore.ieee.org/document/9065477
"NREL: Indoor Transformer Technology for Clean Environments" – https://www.nrel.gov/docs/dry-type-transformers.pdf
"Doble: Maintenance Needs of Dry-Type Units" – https://www.doble.com/dry-type-transformer-testing
"ScienceDirect: Analysis of Dry-Type Transformer Use in Urban Grids" – https://www.sciencedirect.com/dry-type-transformer-study
